CSV 206 (24A-204B766) - Troy-Bilt Chipper Shredder Vac (2005-2) Bag, Chute & Impeller Assembly Parts Diagram

Chipper Shredder Vac

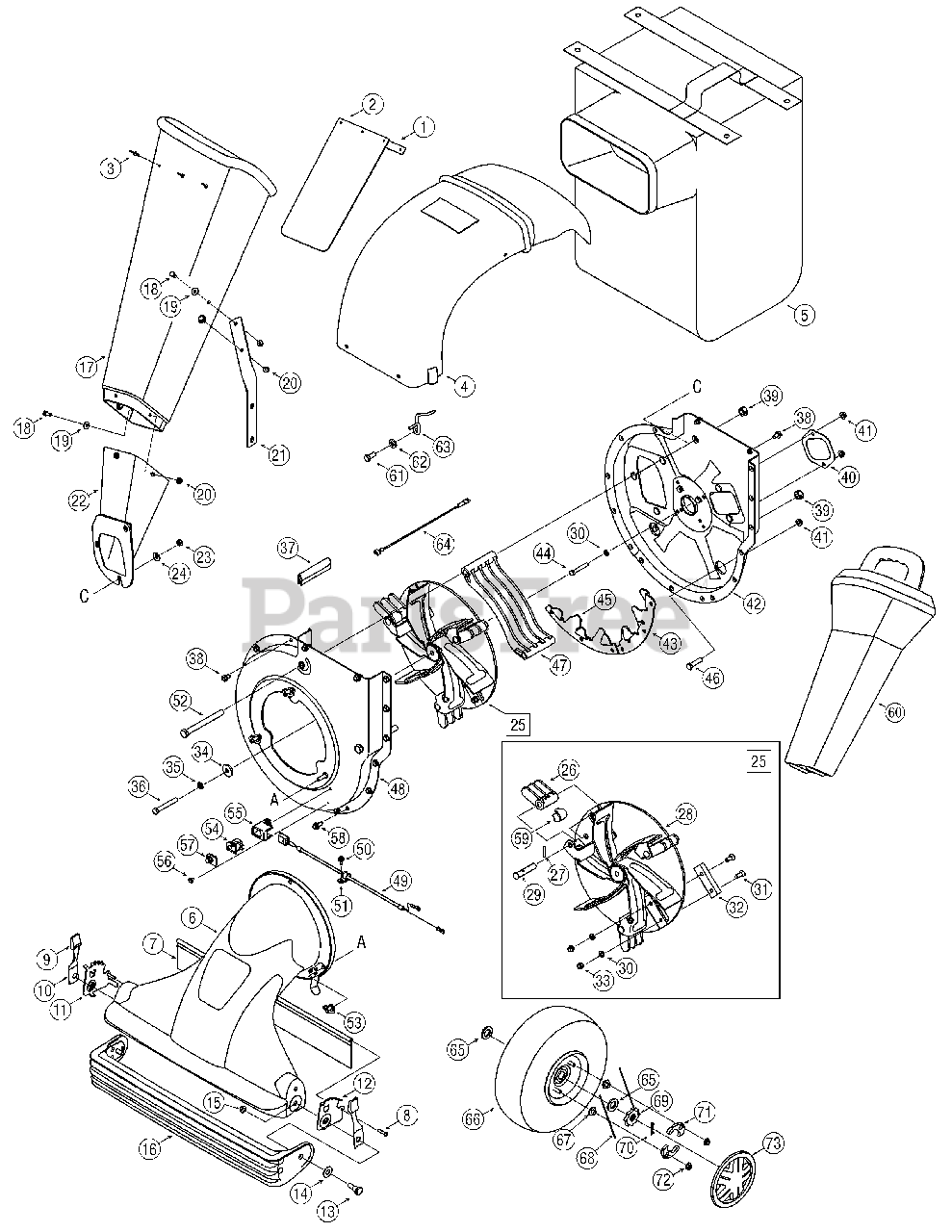

Bag, Chute & Impeller Assembly Parts Diagram

  • Title

1

Troy-Bilt 781-0633

Chute Flap Strip

$9.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 735-0249

Chute Flap
(Superseded to 735-0249A)

$23.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 728-0175

Pop Rivet

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 731-1838A

Discharge Chute

$180.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 764-04001

Bag
(Superseded to 964-04001)

$208.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 631-0086

Nozzle Assembly

$249.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 731-1831

Nozzle Flap

$18.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 710-0969

Screw

$4.49

$

In Stock, only 3 left!

0

9

Troy-Bilt 720-0190

Height Adjustment Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 732-0754

Spring Lever

$9.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 781-0702

Index Bracket RH
(Superseded to 781-0702-0637)

Variations

Troy-Bilt 781-0702-0637

Index Door Bracket, RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 781-0703

Index Bracket LH
(Superseded to 781-0703-0637)

Variations

Troy-Bilt 781-0703-0637

Index Door Bracket, LH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 738-0913

Shoulder Screw

$11.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 736-3084

Flat Washer.510 x 1.12 x.060

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-0431

Hex Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 631-0049

Door Assembly

$

$

Not available

17

Troy-Bilt 731-1574A

Chipper Chute

$188.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-0751

Hex Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0173

Flat Washer.28 ID x.74 OD

$3.99

$

In Stock, Qty 10

0

20

Troy-Bilt 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 781-0780

Support Bracket
(Superseded to 781-0780-0637)

Variations

Troy-Bilt 781-0780-0637

Chute Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 681-0068A

Chipper Chute Assembly

Variations

Troy-Bilt 681-0068A-0483

ASM-CHUTE - CHARCOAL GRAY (0483)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0638

ASM-CHUTE - MTD/TROY-BILT RED (0638)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0498

CHUTE ASM-CHIPPER - OLD CUB YELLOW (0498)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0650

ASM-CHUTE - RED METALLIC (0650)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0662

ASM-CHUTE - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0674

ASM-CHUTE - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0689

ASM-CHUTE - POLO GREEN (0689)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0691

ASM-CHUTE - BLACK JACK (0691)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0709

ASM-CHUTE - MASTERCRAFT GREEN (0709)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0716

CHUTE ASM-CHIPPER - CUB YELLOW-99 (0716)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$165.99

$

Usually ships in 3-6 days

0

$165.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-0242

Belleville Washer,.340ID x.872OD

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 681-0116

Impeller Assembly: Complete
(Superseded to 981-04091)

$496.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 719-0329

Flail Blade

$31.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 715-0166

Spiral Pin

$6.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 681-0107

Impeller Assembly
(Superseded to 981-04090)

$372.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 711-0833B

Clevis Pin
(Superseded to 911-0833B)

$11.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 710-1054

Cap Screw 5/16-24 x 1.0

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 742-0544

Chipper Blade
(Superseded to 942-0544B)

$89.99

$

In Stock, Qty 14

0

33

Troy-Bilt 712-0411

Hex Lock Nut 5/16-24

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 736-0247

Flat Washer.406 x 1/1/4

$8.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 736-0217

Lock Washer 3/8

$3.99

$

In Stock, Qty 13

0

36

Troy-Bilt 710-1273

Hex Cap Screw 3/8-24 x 2.75

$7.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 723-0438

Rubber Seal

$9.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 710-0604A

Hex Washer Screw 5/16-18

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 712-0384

Hex Lock Nut 1/2-13
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

40

Troy-Bilt 781-0627

Chipper Blade Cover

Variations

Troy-Bilt 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$19.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 712-3004A

Hex Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 681-0098

Housing Assembly: Inner Flail

Variations

Troy-Bilt 681-0098-0483

HOUSING ASSY-FLAIL INNER - CHARCOAL GRAY (0483)

$193.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0098-0498

HOUSING ASSY-FLAIL INNER - OLD CUB YELLOW (0498)

$238.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0098-0637

HOUSING ASSY-FLAIL INNER - POWDER BLACK (0637)

$238.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0098-0638

HOUSING ASSY-FLAIL INNER - MTD/TROY-BILT RED (0638)

$238.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0098-0650

HOUSING ASSY-FLAIL INNER - RED METALLIC (0650)

$193.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0098-0662

HOUSING ASSY-FLAIL INNER - OYSTER GRAY (0662)

$193.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0098-0665

HOUSING ASSY-FLAIL INNER - YARDMAN GREEN (0665)

$193.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0098-0689

HOUSING ASSY-FLAIL INNER - POLO GREEN (0689)

$193.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0098-0716

HOUSING ASSY-FLAIL INNER - CUB YELLOW-99 (0716)

$238.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0098-0691

HOUSING ASSY-FLAIL INNER - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 681-0098-0692

HOUSING ASSY-FLAIL INNER - AGWAY BLUE (0692)

$

$

Not available

$193.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 781-0599

Upper Shredder Blade
(Superseded to 781-0599-0637)

Variations

Troy-Bilt 781-0599-0637

Shredder Blade, Upper - POWDER BLACK (0637)

$30.99

$

In Stock, only 1 left!

0

$30.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 710-0772

Hex Cap Screw 5/16-18 x 2

$4.49

$

Usually ships in 3-6 days

0

45

Troy-Bilt 781-0653

Flail Housing Blade
(Superseded to 781-0653-0637)

Variations

Troy-Bilt 781-0653-0637

Flail Blade Housing, Black - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 710-3008

Hex Cap Screw 5/16-18 x.75

$3.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 719-0326

Discharge Screen

$94.99

$

In Stock, only 2 left!

0

48

Troy-Bilt 681-0060

Housing Assembly: Outer Flail

Variations

Troy-Bilt 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

$309.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0060-0638

HOUSING-ASSY-OUTER - MTD/TROY-BILT RED (0638)

$288.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0060-0650

HOUSING-ASSY-OUTER - RED METALLIC (0650)

$288.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0060-0662

HOUSING-ASSY-OUTER - OYSTER GRAY (0662)

$288.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0060-0665

HOUSING-ASSY-OUTER - YARDMAN GREEN (0665)

$288.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0060-0689

HOUSING-ASSY-OUTER - POLO GREEN (0689)

$288.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0060-0716

HOUSING-ASSY-OUTER - CUB YELLOW-99 (0716)

$288.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 629-0241A

Wire Harness
(Superseded to 929-0241A)

$57.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 710-0896

TT Screw 1/4-14 x 0.625"

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 726-0272

Clamp

$6.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 710-0382

Hex Cap Screw 1/2-13 x 5.0

$11.99

$

In Stock, only 2 left!

0

53

Troy-Bilt 712-0421

Knob 5/16-18

$6.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 725-3166

Switch
(Superseded to 925-3166)

$15.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 731-1613

Safety Switch Mounting Cover
(Superseded to 931-1613)

$9.99

$

In Stock, only 2 left!

0

56

Troy-Bilt 710-1268

Hex Washer Screw

$3.99

$

In Stock, only 2 left!

0

57

Troy-Bilt 725-1700

Switch Cover
(Superseded to 925-1700)

$11.99

$

In Stock, only 2 left!

0

58

Troy-Bilt 710-1260A

LD Screw 5/16-18 x 0.75"

$3.49

$

In Stock, Qty 20+

0

59

Troy-Bilt 781-0735

Retaining Pin Clip

$3.99

$

In Stock, Qty 20+

0

60

Troy-Bilt 731-1617

Tamper Plug (If Equipped)

$130.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 710-0157

Hex Cap Screw 5/16-24 x.75

$3.99

$

In Stock, Qty 16

0

62

Troy-Bilt 736-3008

Flat Washer.344 x.75 x.12
(Superseded to 936-3008)

$6.49

$

In Stock, only 1 left!

0

63

Troy-Bilt 747-0929A

Belt Keeper

$12.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 629-0923

Adapter Harness Assembly

$18.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 736-0366

Flat Washer 5/8 ID x 1.0 OD

$4.49

$

In Stock, Qty 11

0

66

Troy-Bilt 634-0244

Wheel Complete 10 x 4 x 4

$128.99

$

In Stock, only 1 left!

0

67

Troy-Bilt 712-0456

Hex Nut 1/4-20

$10.99

$

In Stock, only 2 left!

0

68

Troy-Bilt 10622B

Plastic Spring Ratchet

$4.49

$

In Stock, Qty 20+

0

69

Troy-Bilt 748-0405

Wheel Ratchet 1.62 OD x.5 serr

$10.99

$

In Stock, only 2 left!

0

70

Troy-Bilt 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

71

Troy-Bilt 748-0188B

Pawl LH.345 ID
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 16

0

71

Troy-Bilt 748-0381

Pawl RH.345 ID

$11.99

$

In Stock, Qty 10

0

72

Troy-Bilt 712-3027

Hex Flanged Lock Nut 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

73

Troy-Bilt 734-1984

Hub Cap

$26.99

$

In Stock, only 2 left!

0

Troy-Bilt 725-0157

Cable Tie (Not Shown)

$3.49

$

In Stock, only 4 left!

0

Troy-Bilt 723-0400

Safety Glasses (Not Shown)

$24.99

$

Usually ships in 3-6 days

0
