CSV 220 (24A-030E100) - Cub Cadet Chipper/Shredder/Vacuum Engine (2001) Carburetor Parts Diagram

Chipper/Shredder/Vacuum Engine

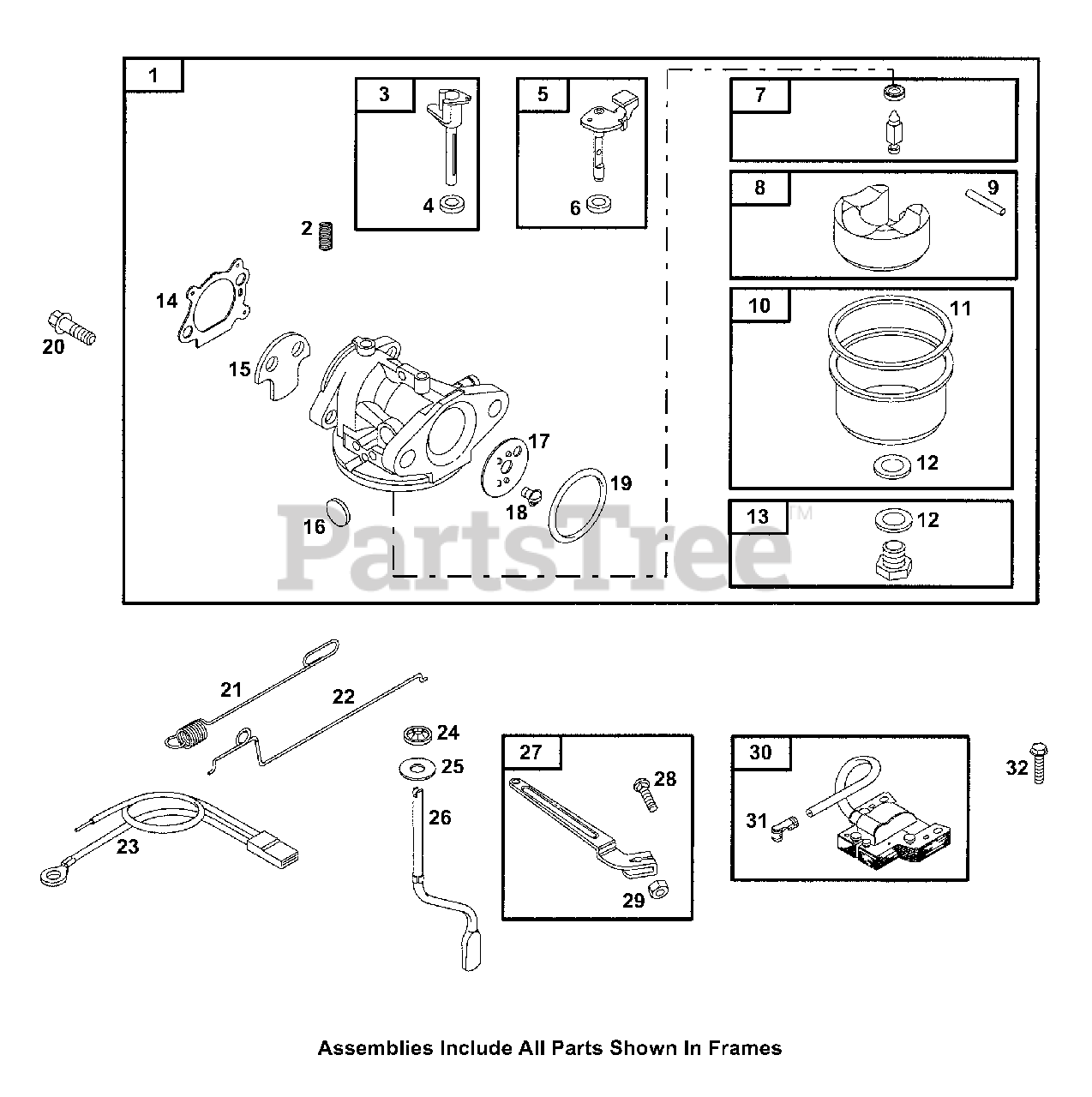

Carburetor Parts Diagram

  • Title

1

Cub Cadet BS-499059

Carburetor

$

$

Not available

2

Cub Cadet BS-690572

Detent Spring
(Superseded to BS-590931)

$5.49

$

In Stock, only 1 left!

0

3

Cub Cadet BS-498593

Choke Shaft

$15.99

$

In Stock, only 1 left!

0

4

Cub Cadet BS-693867

Choke Shaft Seal

$4.99

$

In Stock, only 3 left!

0

5

Cub Cadet BS-493267

Throttle Shaft

$16.99

$

In Stock, only 1 left!

0

6

Cub Cadet BS-691321

Throttle Shaft Seal

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet BS-398188

Needle/Seat Kit

$6.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-398187

Carburetor Float

$9.99

$

In Stock, only 3 left!

0

9

Cub Cadet BS-691242

Float Hinge Pin
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 5

0

10

Cub Cadet BS-493640

Float Bowl
(Superseded to BS-796611)

$6.49

$

In Stock, Qty 19

0

11

Cub Cadet BS-693981

Float Bowl Gasket

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet BS-271716

Sealing Washer

$6.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-498978

Main Jet (Standard)

$16.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-498975

Main Jet (High Altitude)

$19.99

$

In Stock, Qty 5

0

14

Cub Cadet BS-272653

Air Cleaner Gasket
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-691182

Choke Valve

$9.49

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-694468

Welch Plug

$4.49

$

In Stock, Qty 7

0

17

Cub Cadet BS-691203

Throttle Valve

$9.49

$

In Stock, only 1 left!

0

18

Cub Cadet BS-691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

19

Cub Cadet BS-270344

O-Ring Seal (Intake Manifold)
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet BS-692524

Screw (Carburetor)

$

$

Not available

21

Cub Cadet BS-691291

Governor Spring

$7.49

$

In Stock, Qty 9

0

22

Cub Cadet BS-691829

Mechanical Governor Link

$8.49

$

In Stock, only 2 left!

0

23

Cub Cadet BS-496381

Stop Wire

$13.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-690340

Retainer Governor Shaft

$4.49

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-690272

Washer (Governor Crank)

$3.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-691306

Governor Crank

$

$

Not available

27

Cub Cadet BS-690783

Governor Control Lever

$15.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-92613

Bolt (Governor Control Lever)

$

$

Not available

29

Cub Cadet BS-231082

Nut (Governor Control Lever)

$

$

Not available

30

Cub Cadet BS-802574

Magneto Armature
(Superseded to BS-796964)

$55.99

$

In Stock, only 2 left!

0

31

Cub Cadet BS-493880

Sparkplug Terminal
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

32

Cub Cadet BS-691061

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0
