CSV 24 (247-103A100) - Cub Cadet Chipper/Shredder/Vacuum (1997) Frame Assembly Parts Diagram

Chipper/Shredder/Vacuum

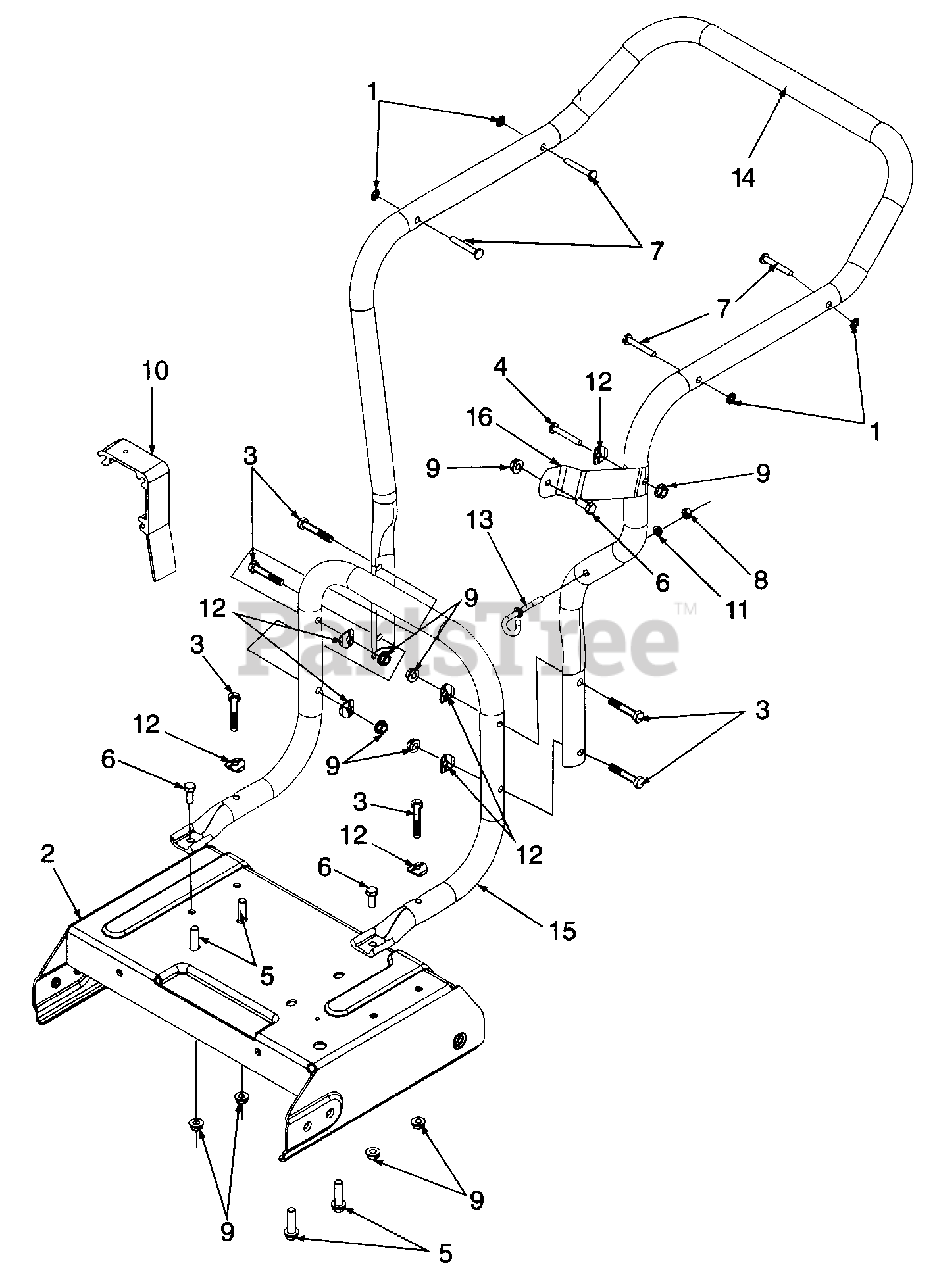

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 1539-019

Nut, Push

$4.49

$

In Stock, Qty 16

0

2

Cub Cadet 681-0086

Frame Assembly

Note: Code 0498

Variations

Cub Cadet 681-0086-0498

FRAME ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0086-0637

FRAME ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 681-0086-0662

FRAME ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

$

$

3

Cub Cadet 710-0380

Screw, Hex Cap, 5/16-18 x 1.75
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0442

Screw, Hex Cap, 5/16-8 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 12

0

5

Cub Cadet 710-0502A

Screw, Hex Wash. Hd. Tapp, 3/8-16 x 1.25

$6.99

$

In Stock, Qty 7

0

6

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 711-0737

Pin, Stud, .250 x 1.75
(Superseded to 911-0737)

$4.99

$

In Stock, Qty 11

0

8

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 719-0330A

Adapter, Mounting

$

$

Not available

11

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

Cub Cadet 736-0451

Washer, Saddle, .32 ID x .93 OD

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 747-0815

Bolt, Eye

$15.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 749-0979

Handle, Upper

Note: Code 0498

Variations

Cub Cadet 749-0979-0637

HNDL. UPPER PUSH - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 749-0980

Handle, Lower

Note: Code 0498

Variations

Cub Cadet 749-0980-0498

HNDL. LOWER PUSH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 749-0980-0637

HNDL. LOWER PUSH (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-0980-0638

HNDL. LOWER PUSH (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

16

Cub Cadet 781-0647

Bracket, Chute Stabilizing

Note: Code 0498

Variations

Cub Cadet 781-0647-0498

USE 781-0647-0716 BRACKET ST - OLD CUB YELLOW (0498)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0647-0637

Stabilizer Bracket, D - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0647-0716

BRACKET STABILIZER D - CUB YELLOW-99 (0716)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0647-0638

BRACKET. STABILIZER D - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0647-0650

BRACKET. STABILIZER D - RED METALLIC (0650)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0647-0662

BRACKET. STABILIZER D - OYSTER GRAY (0662)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0647-0665

BRACKET. STABILIZER D - YARDMAN GREEN (0665)

$12.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0
