CSV 240 (247-203B100) - Cub Cadet Chipper/Shredder/Vacuum (1997) Frame Assembly Parts Diagram

Chipper/Shredder/Vacuum

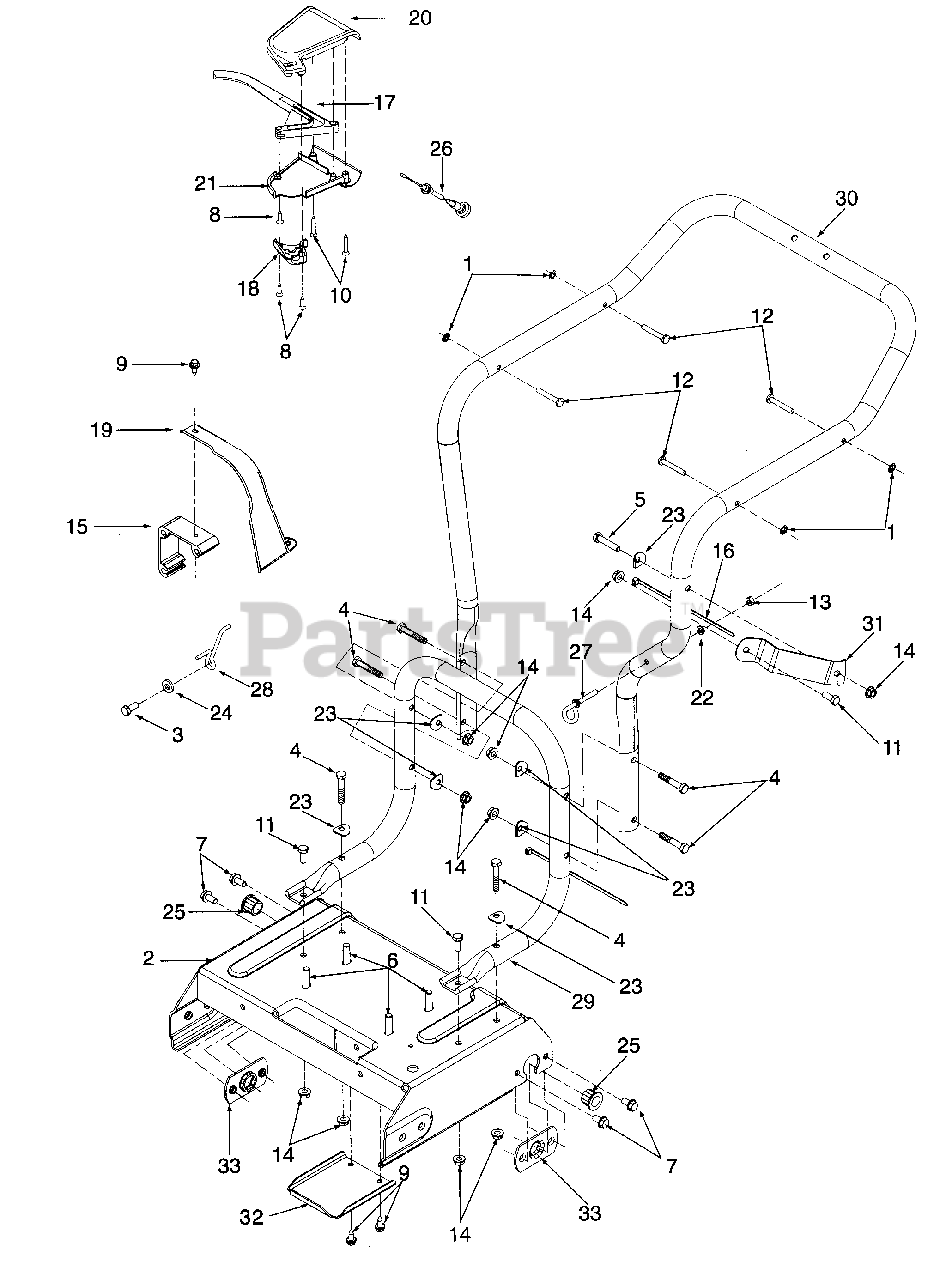

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 1539-019

Nut, Push, .25

$4.49

$

In Stock, Qty 10

0

2

Cub Cadet 681-0097

Frame Assembly
(Superseded to 681-0097A)

Note: Code 0498

Variations

681-0097-0637

Cub Cadet 681-0097-0637

USE 681-0097A-0637 FRAME ASM - POWDER BLACK (0637)

$158.99

$

Usually ships in 3-6 days

0

$137.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0157

Screw, Hex Cap, 5/16-24 x .75 GR5

$4.49

$

In Stock, only 3 left!

0

4

Cub Cadet 710-0380

Screw, Hex Cap, 5/16-18 x 1.75
(Superseded to 710-3180)

$5.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0442

Screw, Hex Cap, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0502A

Screw, Hex Wash Hd Tapp, 3/8-16 x 1.25

$6.99

$

In Stock, Qty 9

0

7

Cub Cadet 710-0604

Screw, Hex Wash Hd Tapp, 5/16-18 x .62
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 8

0

8

Cub Cadet 710-0841

Screw, Phil Cntrsnk, #10-12 x .75

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0896

Screw, Hex Wash Hd, 1/4-14 x .62

$4.49

$

In Stock, Qty 8

0

10

Cub Cadet 710-1331

Screw, Phil Cntrsnk, #10-16 x 1.25

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-3008

Screw, Hex Cap, 5/15-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 711-0737

Pin, Stud, .250 x 1.75
(Superseded to 911-0737)

$4.99

$

In Stock, Qty 6

0

13

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$7.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 719-0359

Adapter, Engine Mtg

$31.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 731-0620

Lever, Drive Control
(Superseded to 731-0620A)

$16.99

$

In Stock, Qty 7

0

18

Cub Cadet 731-1059

Cap, Cable Mtg
(Superseded to 753-0833)

$53.99

$

In Stock, only 2 left!

0

19

Cub Cadet 731-1646

Belt Cover

$

$

Not available

20

Cub Cadet 731-1735

Upper Clutch Cover
(Superseded to 753-0832)

$64.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 731-1736

Lower Clutch Cover

$

$

Currently unavailable

22

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 15

0

23

Cub Cadet 736-0451

Saddle Washer, .320 x .93

$4.99

$

In Stock, Qty 8

0

24

Cub Cadet 736-3008

Washer, Flat, .344 x .75 x .12
(Superseded to 936-3008)

$7.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 741-0413

Bearing, Flange, .631 ID x .72 OD

$10.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 746-0714

Cable, Clutch, 56.0
(Superseded to 946-0714)

$35.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 747-0815

Eye Bolt

$15.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 747-0929

Belt Keeper

$

$

Currently unavailable

29

Cub Cadet 749-0980

Handle, Lower

Note: Code 0498

Variations

749-0980-0498

Cub Cadet 749-0980-0498

HNDL. LOWER PUSH - OLD CUB YELLOW (0498)

$

$

Not available

749-0980-0637

Cub Cadet 749-0980-0637

HNDL. LOWER PUSH (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

749-0980-0638

Cub Cadet 749-0980-0638

HNDL. LOWER PUSH (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

30

Cub Cadet 749-0996

Handle, Upper

Note: Code 0498

Variations

749-0996-0498

Cub Cadet 749-0996-0498

HANDLE UPPER - OLD CUB YELLOW (0498)

$

$

Not available

749-0996-0637

Cub Cadet 749-0996-0637

HANDLE UPPER - POWDER BLACK (0637)

$

$

Not available

749-0996-0638

Cub Cadet 749-0996-0638

HANDLE UPPER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

31

Cub Cadet 781-0647

Bracket, Chute Stabilizing

Note: Code 0498

Variations

781-0647-0498

Cub Cadet 781-0647-0498

USE 781-0647-0716 BRACKET ST - OLD CUB YELLOW (0498)

$12.99

$

Usually ships in 3-6 days

0

781-0647-0637

Cub Cadet 781-0647-0637

Stabilizer Bracket, D - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

781-0647-0638

Cub Cadet 781-0647-0638

BRACKET. STABILIZER D - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

781-0647-0650

Cub Cadet 781-0647-0650

BRACKET. STABILIZER D - RED METALLIC (0650)

$11.99

$

Usually ships in 3-6 days

0

781-0647-0662

Cub Cadet 781-0647-0662

BRACKET. STABILIZER D - OYSTER GRAY (0662)

$12.99

$

Usually ships in 3-6 days

0

781-0647-0665

Cub Cadet 781-0647-0665

BRACKET. STABILIZER D - YARDMAN GREEN (0665)

$12.99

$

Usually ships in 3-6 days

0

781-0647-0716

Cub Cadet 781-0647-0716

BRACKET STABILIZER D - CUB YELLOW-99 (0716)

$12.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 781-0697

Transmission Cover
(Superseded to 781-0697-0637)

Note: Code 0498

Variations

781-0697-0637

Cub Cadet 781-0697-0637

COVER TRANS - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

781-0697-0662

Cub Cadet 781-0697-0662

USE 781-0697-0637 COVER TRANS - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 781-0700

Bracket, Axle
(Superseded to 781-0700-0637)

Variations

781-0700-0637

Cub Cadet 781-0700-0637

Axle Bracket - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0
