CSV 240 (247-203B100) - Cub Cadet Chipper/Shredder/Vacuum (1997) Transmission Parts Diagram

Chipper/Shredder/Vacuum

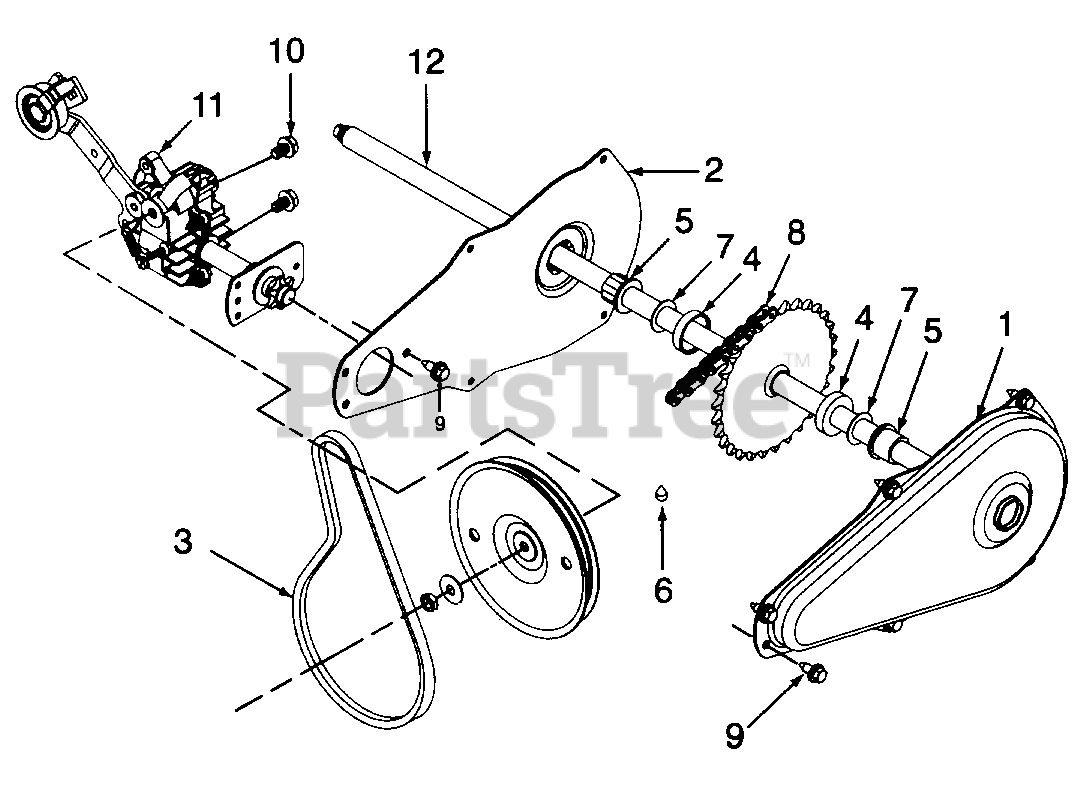

Transmission Parts Diagram

  • Title

1

Cub Cadet 781-0677

Chain Case LH

Note: Code 0498

Variations

Cub Cadet 781-0677-0637

CASE CHAIN LH - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0677-0665

CASE CHAIN LH - YARDMAN GREEN (0665)

$47.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 781-0676

Chain Case RH

Note: Code 0498

Variations

Cub Cadet 781-0676-0637

CASE CHAIN RH - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0676-0665

CASE CHAIN RH - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 754-0457

V-Belt, 3/8 x 24.68
(Superseded to 954-0457)

$23.99

$

In Stock, only 1 left!

0

4

Cub Cadet 748-0313

Spacer, .630 x 1.25 x .29

$3.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 741-0413

Bearing, Hex Flange, .631 ID

$8.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 737-0223

Grease, Benalene
(Superseded to 737-0300A)

$32.99

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0336

Washer, Flat, 5/8 x 1.0
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 713-0422

Chain, Endless, #41 x 50
(Superseded to 913-0422)

$30.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0896

Screw, Hex Wash Hd, 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0603

Screw, Hex Wash Hd Tapp 5/16-18 x .50

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 618-0256

Complete Transmission Ass'y

Note: See "Drive" Breakdown

$431.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 611-0063

Shaft Assembly, Axle

$128.99

$

Usually ships in 3-6 days

0
