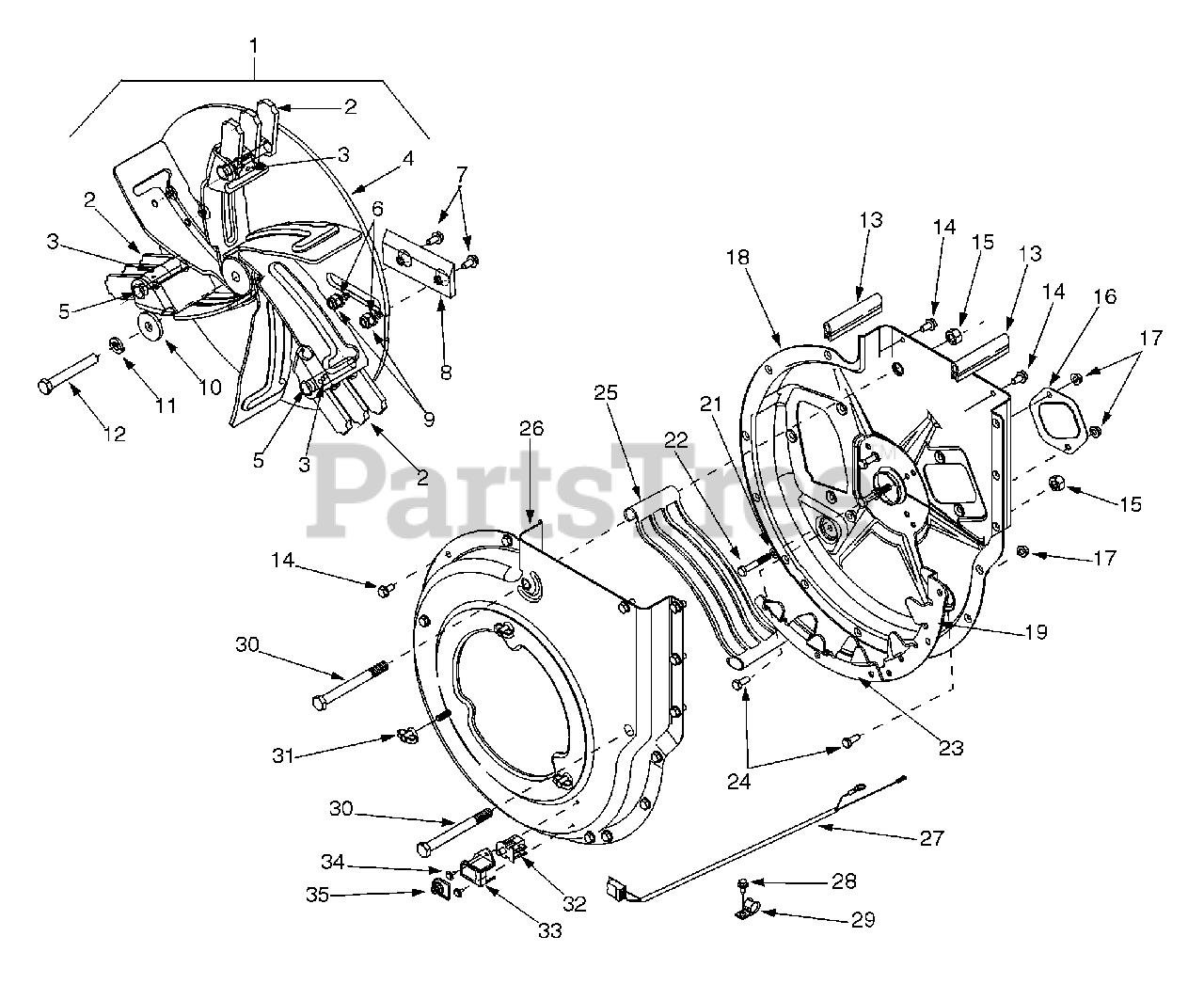

CSV 240 (24A-203B100) - Cub Cadet Chipper/Shredder/Vacuum (2002) Impeller Assembly Parts Diagram

Chipper/Shredder/Vacuum

Impeller Assembly Parts Diagram

  • Title

1

Cub Cadet 681-0116

Impeller Ass'y Complete
(Superseded to 981-04091)

$496.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 719-0329

Flail Blade

$31.99

$

In Stock, Qty 20+

0

3

Cub Cadet 715-0166

Spiral Pin

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet 681-0107

Impeller Assembly
(Superseded to 981-04090)

$372.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 711-0833B

Clevis Pin
(Superseded to 911-0833B)

$11.99

$

In Stock, only 3 left!

0

6

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1054

Cap Screw 5/16-24 x 1.0

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 742-0544

Chipper Blade
(Superseded to 942-0544B)

$89.99

$

In Stock, Qty 14

0

9

Cub Cadet 712-0411

Hex Lock Nut 5/16-24

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0247

Flat Washer .406 x 1/1/4

$8.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0217

Lock Washer 3/8

$3.99

$

In Stock, Qty 13

0

12

Cub Cadet 710-1273

Hex Cap Screw 3/8-24 x 2.75

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 723-0438

Rubber Seal

$9.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0604A

Hex Washer Screw 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0384

Hex Lock Nut 1/2-13
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

16

Cub Cadet 781-0627

Chipper Blade Cover

Variations

Cub Cadet 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-3004A

Hex Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet 681-0098

Housing Ass'y Inner Flail

Variations

Cub Cadet 681-0098-0483

HOUSING ASSY-FLAIL INNER - CHARCOAL GRAY (0483)

$193.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0098-0498

HOUSING ASSY-FLAIL INNER - OLD CUB YELLOW (0498)

$238.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0098-0637

HOUSING ASSY-FLAIL INNER - POWDER BLACK (0637)

$238.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0098-0638

HOUSING ASSY-FLAIL INNER - MTD/TROY-BILT RED (0638)

$238.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0098-0650

HOUSING ASSY-FLAIL INNER - RED METALLIC (0650)

$193.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0098-0662

HOUSING ASSY-FLAIL INNER - OYSTER GRAY (0662)

$193.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0098-0665

HOUSING ASSY-FLAIL INNER - YARDMAN GREEN (0665)

$193.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0098-0689

HOUSING ASSY-FLAIL INNER - POLO GREEN (0689)

$193.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0098-0716

HOUSING ASSY-FLAIL INNER - CUB YELLOW-99 (0716)

$238.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0098-0691

HOUSING ASSY-FLAIL INNER - BLACK JACK (0691)

$

$

Not available

Cub Cadet 681-0098-0692

HOUSING ASSY-FLAIL INNER - AGWAY BLUE (0692)

$

$

Not available

$193.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 781-0599

Upper Shredder Blade
(Superseded to 781-0599-0637)

Variations

Cub Cadet 781-0599-0637

Shredder Blade, Upper - POWDER BLACK (0637)

$30.99

$

In Stock, only 1 left!

0

$30.99

$

In Stock, only 1 left!

0

21

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0772

Hex Cap Screw 5/16-18 x 2

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 781-0653

Flail Housing Blade
(Superseded to 781-0653-0637)

Variations

Cub Cadet 781-0653-0637

Flail Blade Housing, Black - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 719-0326

Discharge Screen

$94.99

$

In Stock, only 2 left!

0

26

Cub Cadet 681-0060

Housing Ass'y Outer Flail

Variations

Cub Cadet 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

$309.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0498

USE 681-0060-0716 HOUSING-ASS - OLD CUB YELLOW (0498)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0638

HOUSING-ASSY-OUTER - MTD/TROY-BILT RED (0638)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0650

HOUSING-ASSY-OUTER - RED METALLIC (0650)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0662

HOUSING-ASSY-OUTER - OYSTER GRAY (0662)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0665

HOUSING-ASSY-OUTER - YARDMAN GREEN (0665)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0689

HOUSING-ASSY-OUTER - POLO GREEN (0689)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0716

HOUSING-ASSY-OUTER - CUB YELLOW-99 (0716)

$288.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 629-0241A

Wire Harness
(Superseded to 929-0241A)

$57.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-0896

Hex Washer Screw 1/4-14

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 726-0272

Clamp

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0382

Hex Cap Screw 1/2-13 x 5.0

$11.99

$

In Stock, only 2 left!

0

31

Cub Cadet 712-0421

Knob 5/16-18

$6.49

$

In Stock, Qty 20+

0

32

Cub Cadet 725-3166

Switch
(Superseded to 925-3166)

$15.99

$

In Stock, Qty 20+

0

33

Cub Cadet 731-1613

Safety Switch Mounting Cover
(Superseded to 931-1613)

$9.99

$

In Stock, only 2 left!

0

34

Cub Cadet 710-1268

Hex Washer Screw

$3.99

$

In Stock, Qty 8

0

35

Cub Cadet 725-1700

Switch Cover
(Superseded to 925-1700)

$11.99

$

In Stock, only 2 left!

0
