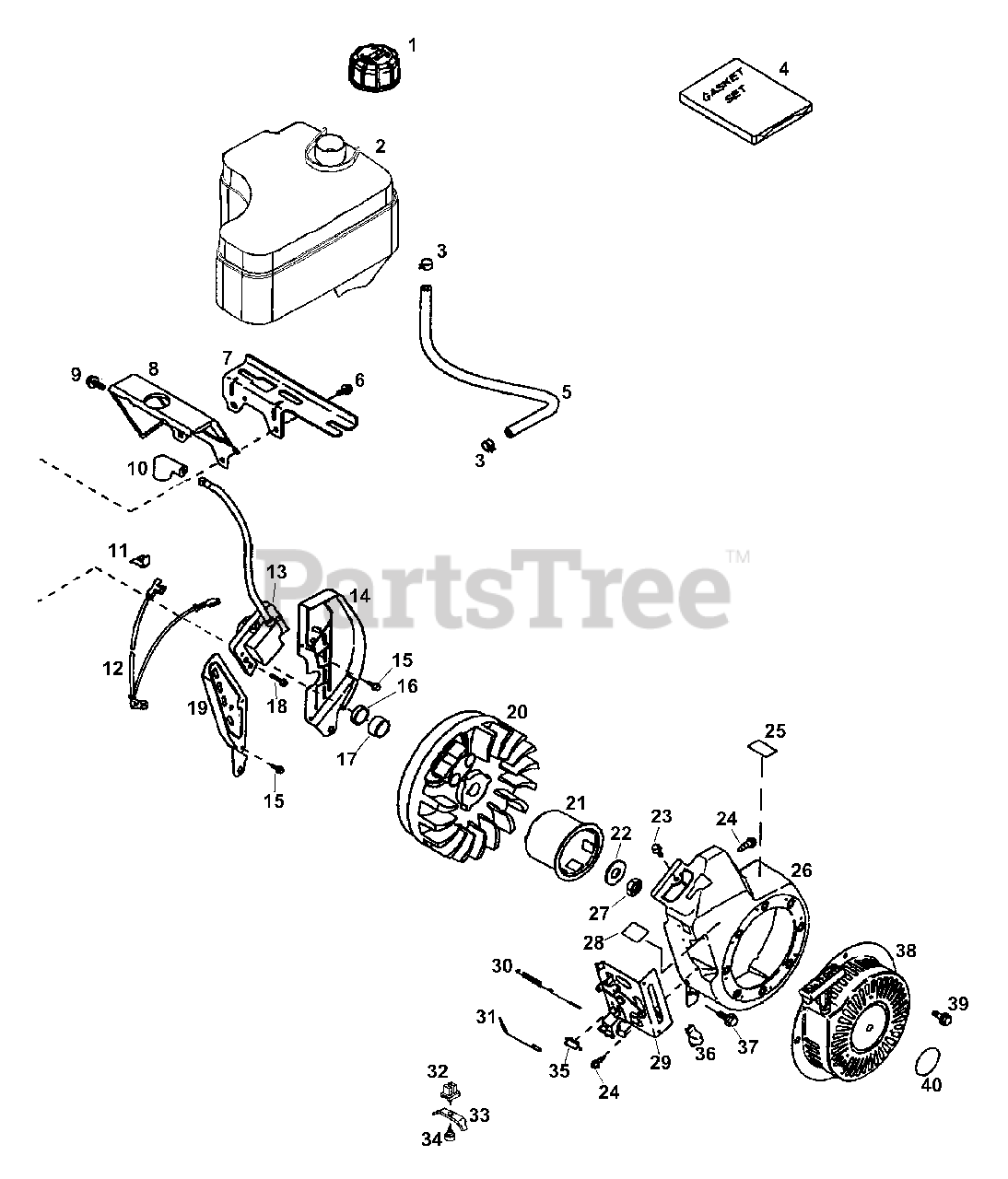

CSV 240 (24A-203B100) - Cub Cadet Chipper/Shredder/Vacuum Engine (2002) Fuel & Flywheel Parts Diagram

Chipper/Shredder/Vacuum Engine

Fuel & Flywheel Parts Diagram

  • Title

1

Cub Cadet TC-36246

Fuel Cap
(Superseded to TC-37844)

$5.99

$

In Stock, Qty 20+

0

2

Cub Cadet TC-37048

Fuel Tank

Note: (Incl. 1 & 3)

$44.99

$

In Stock, only 2 left!

0

3

Cub Cadet TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

4

Cub Cadet TC-36720

Gasket Set

Note: (Incl. P/N TC-26756, TC-27272A, TC-29673, TC-35626, TC-36581, TC-36624, TC-36719)

$10.99

$

Usually ships in 3-12 days

0

5

Cub Cadet TC-30705

Fuel Line

$16.99

$

In Stock, only 2 left!

0

6

Cub Cadet TC-651010

Screw, 1/4-20 x 7/8"

$1.99

$

In Stock, only 1 left!

0

7

Cub Cadet TC-36644

Fuel Tank Bracket

$

$

Not available

8

Cub Cadet TC-36623A

Blower Housing Extension

$7.49

$

Usually ships in 3-12 days

0

9

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 16

0

10

Cub Cadet TC-610118

Spark Plug Cover

$6.49

$

In Stock, Qty 19

0

11

Cub Cadet TC-29443

Wire Clip

$1.99

$

In Stock, Qty 5

0

12

Cub Cadet TC-36679A

Ground Wire

$

$

Not available

13

Cub Cadet TC-34443A

Solid State Ignition
(Superseded to TC-34443D)

$44.99

$

In Stock, Qty 20+

0

14

Cub Cadet TC-36622

Air Baffle (Right)

$

$

Not available

15

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 16

0

16

Cub Cadet TC-32600

Oil Seal

$

$

Not available

17

Cub Cadet TC-34080

Spacer

$1.99

$

In Stock, only 2 left!

0

18

Cub Cadet TC-651007

Screw, Torx T-15, 15/16"

$1.99

$

In Stock, Qty 5

0

19

Cub Cadet TC-36621

Air Baffle (Left)

$

$

Not available

20

Cub Cadet TC-611205

Flywheel

$108.99

$

Usually ships in 3-12 days

0

21

Cub Cadet TC-35985B

Starter Cup
(Superseded to TC-35985C)

$13.99

$

In Stock, only 1 left!

0

22

Cub Cadet TC-650815

Bell Washer

$1.99

$

In Stock, Qty 13

0

23

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

In Stock, only 3 left!

0

24

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

In Stock, Qty 5

0

25

Cub Cadet TC-36261

Lube Decal

$

$

Not available

26

Cub Cadet TC-36864

Blower Housing

$94.99

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-650816

Flywheel Nut

$4.49

$

In Stock, Qty 12

0

28

Cub Cadet TC-35703

Speed Control Decal

$2.49

$

In Stock, only 1 left!

0

29

Cub Cadet TC-36736

Control Bracket

$38.99

$

Usually ships in 3-12 days

0

30

Cub Cadet TC-36710

Extension Spring

$7.49

$

In Stock, only 2 left!

0

31

Cub Cadet TC-36711

Governor Link

$1.49

$

In Stock, only 2 left!

0

32

Cub Cadet TC-28545

Grommet

$1.99

$

In Stock, Qty 5

0

33

Cub Cadet TC-33356

Ground Terminal

$1.99

$

In Stock, Qty 5

0

34

Cub Cadet TC-650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, only 4 left!

0

35

Cub Cadet TC-610973

Terminal

$3.99

$

In Stock, only 4 left!

0

36

Cub Cadet TC-36638

Control Knob

$1.99

$

In Stock, only 4 left!

0

37

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

In Stock, only 3 left!

0

38

Cub Cadet TC-590704

Rewind Starter
(Superseded to TC-590788)

$65.99

$

Usually ships in 3-12 days

0

39

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

In Stock, only 3 left!

0

40

Cub Cadet TC-36695

Starter Decal

$2.49

$

In Stock, only 1 left!

0
