CSV 240 (24A-203B101) - Cub Cadet Chipper/Shredder/Vacuum (1998) Drive Parts Diagram

Chipper/Shredder/Vacuum

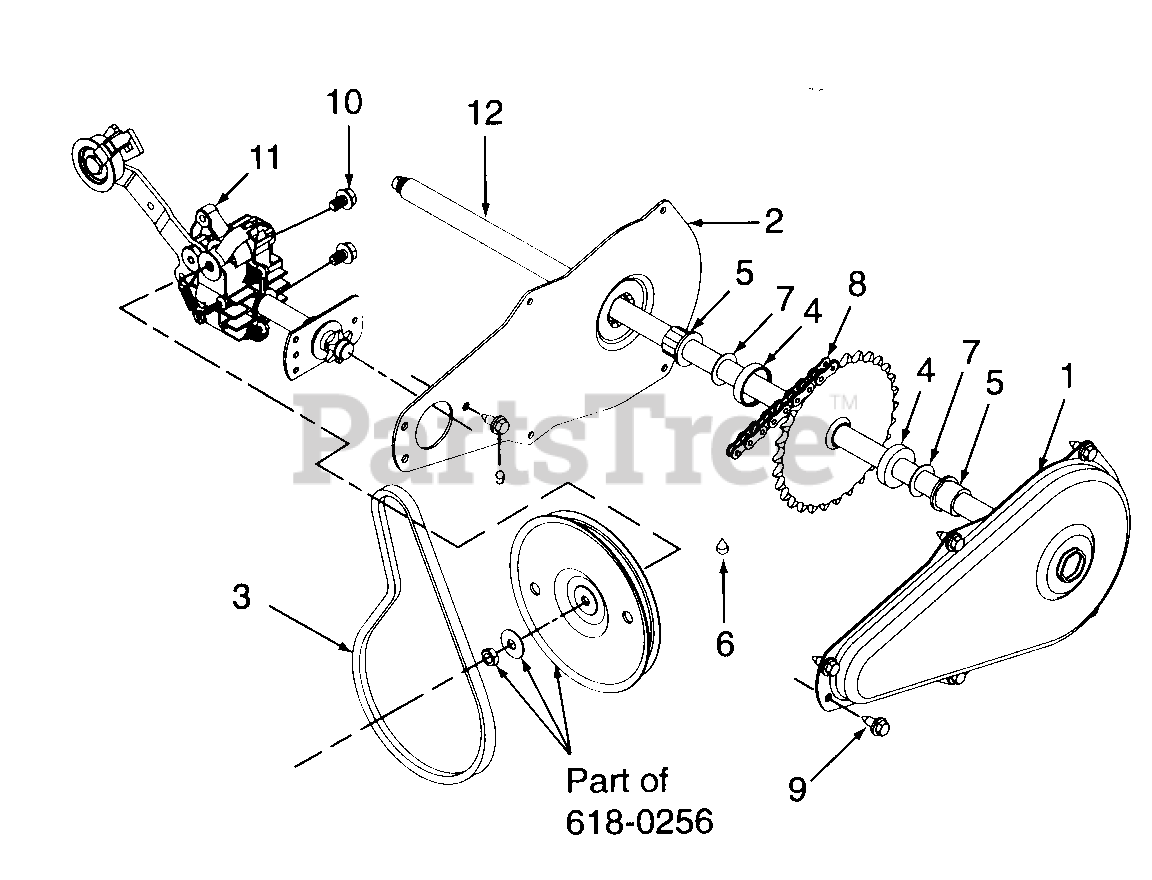

Drive Parts Diagram

  • Title

1

Cub Cadet 781-0677-0498

Chain Case LH

$

$

Currently unavailable

2

Cub Cadet 781-0676-0498

Chain Case RH

$

$

Currently unavailable

3

Cub Cadet 754-0457

V-Belt, 3/8 x 24.68
(Superseded to 954-0457)

$23.99

$

In Stock, only 1 left!

0

4

Cub Cadet 748-0313

Spacer, .630 x 1.25 x .29

$3.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 741-0413

Bearing, Hex Flange, .631 ID

$8.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 737-0223

Grease, Benalene
(Superseded to 737-0300A)

$32.99

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0336

Washer, Flat, 5/8 x 1.0
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 713-0422

Chain, Endless, #41 x 50 Lnks
(Superseded to 913-0422)

$30.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0896

Screw, Hex Wash Hd, 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0603

Screw, Hex Wash Hd Tapp 5/16-18 x .50

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 618-0256

Complete Transmission Ass'y

Note: See "Transmission Assembly" illustration and parts list.

$431.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 611-0063

Shaft Assembly, Axle

$128.99

$

Usually ships in 3-6 days

0
