CSV 240 (24A-203B101) - Cub Cadet Chipper/Shredder/Vacuum (1999) Chute/Nozzle/Bag Parts Diagram

Chipper/Shredder/Vacuum

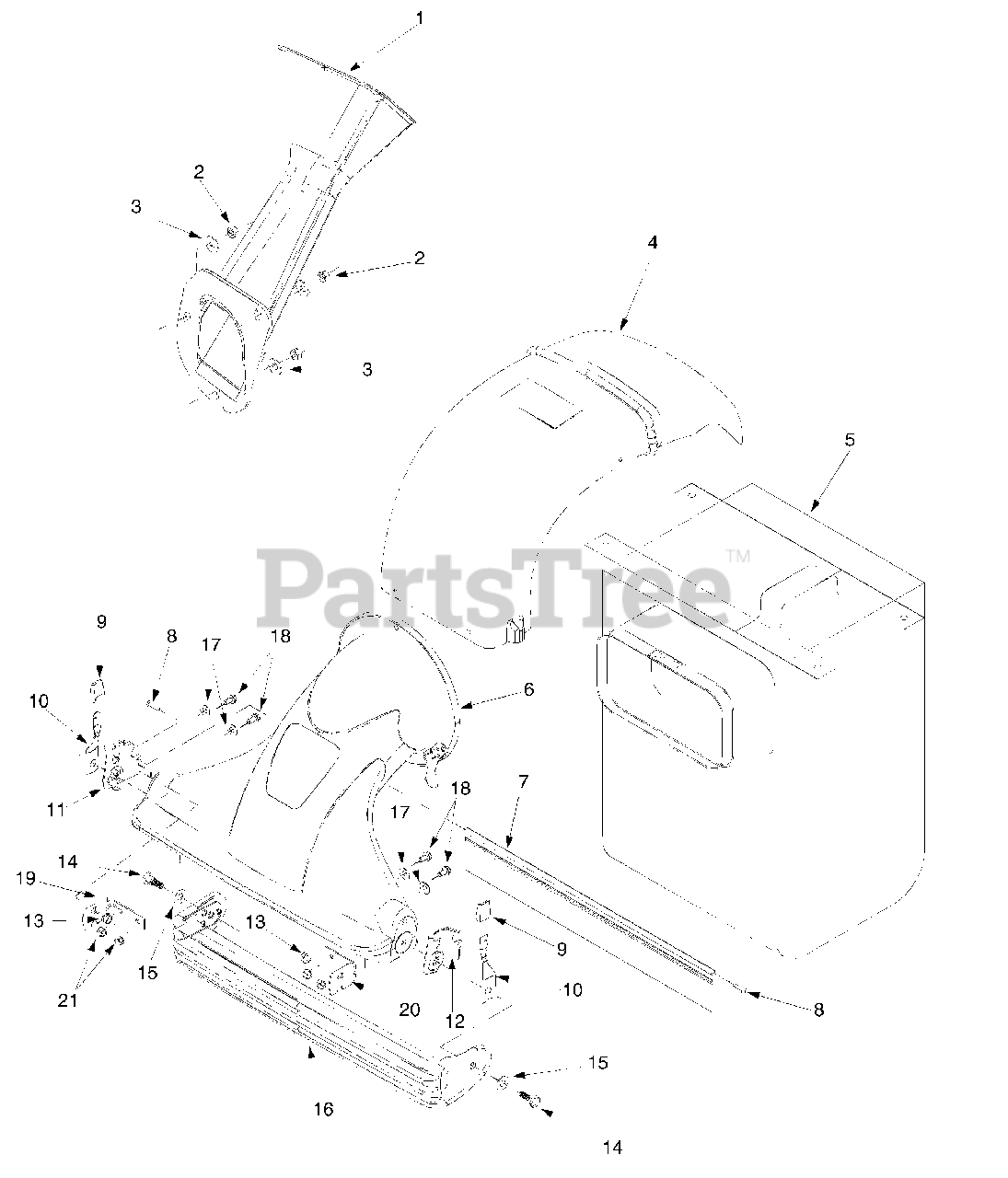

Chute/Nozzle/Bag Parts Diagram

  • Title

1

Cub Cadet 681-0095

Chipper Chute

Variations

Cub Cadet 681-0095-0638

CHUTE ASSY-CHIPPER COMPLETE - MTD/TROY-BILT RED (0638)

$239.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0095-0691

CHUTE ASSY-CHIPPER COMPLETE - BLACK JACK (0691)

$239.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0095-0709

CHUTE ASSY-CHIPPER COMPLETE - MASTERCRAFT GREEN (0709)

$239.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0095-0483

CHUTE ASSY-CHIPPER COMPLETE - CHARCOAL GRAY (0483)

$239.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0095-0498

CHUTE ASSY-CHIPPER COMPLETE - OLD CUB YELLOW (0498)

$213.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0095-0650

CHUTE ASSY-CHIPPER COMPLETE - RED METALLIC (0650)

$208.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0095-0665

CHUTE ASSY-CHIPPER COMPLETE - YARDMAN GREEN (0665)

$239.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0095-0716

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW-99 (0716)

$213.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0095-4021

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW 2 (4021)

$213.99

$

Usually ships in 3-6 days

0

$222.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0242

Bell Washer .340 ID x .872 OD

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 731-1838A

Discharge Chute

$180.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 764-0492

Bag
(Superseded to 964-04001)

$208.99

$

In Stock, only 1 left!

0

6

Cub Cadet 631-0070

Nozzle Asm
(Superseded to 631-0086)

$249.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 731-1831

Nozzle Flap

$18.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0969

Screw

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 720-0190

Height Adjustment Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

10

Cub Cadet 732-0754

Spring Lever

$9.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 781-0702

Index Bracket RH
(Superseded to 781-0702-0637)

Variations

Cub Cadet 781-0702-0637

Index Door Bracket, RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

12

Cub Cadet 781-0703

Index Bracket LH
(Superseded to 781-0703-0637)

Variations

Cub Cadet 781-0703-0637

Index Door Bracket, LH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

13

Cub Cadet 712-0431

Hex Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 738-0913

Shoulder Screw

$11.99

$

In Stock, only 2 left!

0

15

Cub Cadet 736-3084

Flat Washer .510 x 1.12 x .060

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 631-0049

Door Asm

$

$

Not available

17

Cub Cadet 736-0173

Flat Washer .28 ID x .74 OD

$3.99

$

In Stock, Qty 10

0

18

Cub Cadet 710-0258

Hex Cap Screw 1/4-20 x .625
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 781-0704

Nozzle Reinforcement Bracket RH
(Superseded to 781-0704-0637)

$

$

Not available

20

Cub Cadet 781-0705

Nozzle Reinforcement Bracket LH

$

$

Not available

21

Cub Cadet 712-3027

Hex Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0
