CSV 240 (24A-203B101) - Cub Cadet Chipper/Shredder/Vacuum Engine (1999) Carburetor & Starter Assembly Parts Diagram

Chipper/Shredder/Vacuum Engine

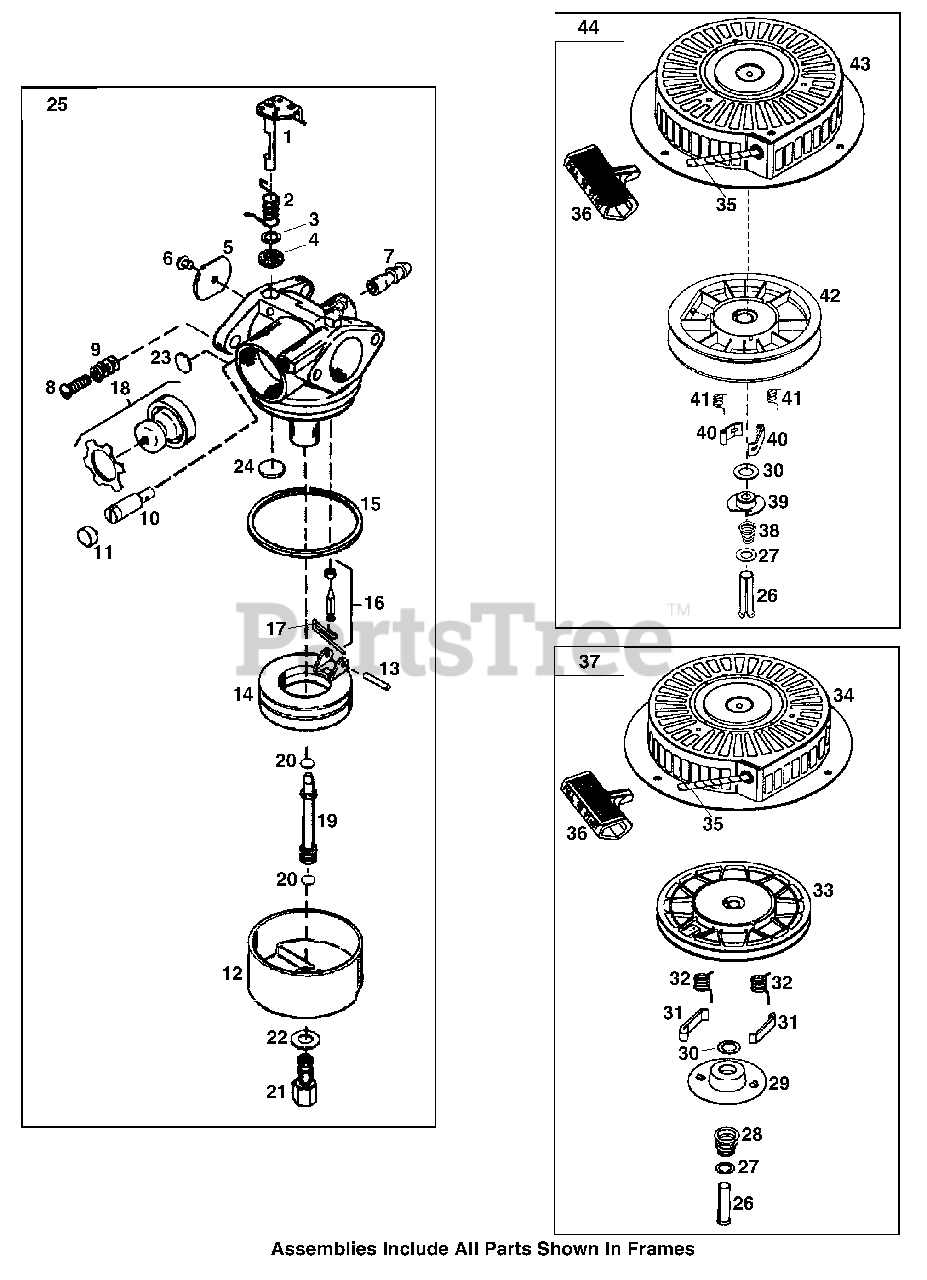

Carburetor & Starter Assembly Parts Diagram

  • Title

1

Cub Cadet TC-631615

Throttle Shaft & Lever Ass’y

$9.49

$

In Stock, only 1 left!

0

2

Cub Cadet TC-631767

Throttle Return Spring

$1.99

$

In Stock, Qty 7

0

3

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, Qty 18

0

4

Cub Cadet TC-631183

Dust Seal (Throttle)

$1.99

$

In Stock, Qty 13

0

5

Cub Cadet TC-631036

Throttle Shutter

$1.99

$

In Stock, only 1 left!

0

6

Cub Cadet TC-650506

Shutter Screw

$1.49

$

In Stock, Qty 17

0

7

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

8

Cub Cadet TC-651025

Throttle Crack/Idle Speed Screw

$1.99

$

In Stock, Qty 5

0

9

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, only 4 left!

0

10

Cub Cadet TC-640018

Idle Restrictor Screw

$8.99

$

In Stock, only 1 left!

0

11

Cub Cadet TC-640053

Idle Restrictor Screw Cap
(Superseded to TC-640200)

$1.99

$

In Stock, Qty 11

0

12

Cub Cadet TC-631867

Float Bowl

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, Qty 17

0

14

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 7

0

15

Cub Cadet TC-631028

Float Bowl "O" Ring
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 20+

0

16

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, Qty 7

0

18

Cub Cadet TC-36045A

Primer Bulb/Retainer Ring

$6.49

$

In Stock, Qty 11

0

19

Cub Cadet TC-640019

Main Nozzle Tube

$6.99

$

In Stock, Qty 20+

0

20

Cub Cadet TC-632547

Main Nozzle Tube "O" Ring

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet TC-640015

High Speed Bowl Nut

$7.49

$

In Stock, only 3 left!

0

22

Cub Cadet TC-27110

Bowl Nut Washer
(Superseded to TC-27110A)

$2.49

$

In Stock, Qty 20+

0

23

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

$1.99

$

In Stock, Qty 8

0

24

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 3 left!

0

25

Cub Cadet TC-640025B

Carburetor Assembly
(Superseded to TC-640025C)

$105.99

$

In Stock, only 1 left!

0

26

Cub Cadet TC-590599A

Spring Pin

Note: (Incl. 52)

$5.49

$

In Stock, only 3 left!

0

27

Cub Cadet TC-590600

Washer

$1.99

$

In Stock, Qty 5

0

28

Cub Cadet TC-590697

Brake Spring

$3.99

$

Usually ships in 3-12 days

0

29

Cub Cadet TC-590696

Retainer

$7.49

$

In Stock, only 1 left!

0

30

Cub Cadet TC-590601

Washer

$1.99

$

In Stock, only 4 left!

0

31

Cub Cadet TC-590698

Starter Dog

$6.99

$

In Stock, Qty 6

0

32

Cub Cadet TC-590699

Dog Spring

$7.49

$

In Stock, only 2 left!

0

33

Cub Cadet TC-590700

Pulley & Rewind Spring Ass’y

$26.99

$

Usually ships in 3-12 days

0

34

Cub Cadet TC-590705

Starter Housing Ass’y

$

$

Not available

35

Cub Cadet TC-590535

Starter Rope (98")

$9.49

$

In Stock, Qty 18

0

36

Cub Cadet TC-590701

Starter Handle

$6.49

$

In Stock, Qty 6

0

37

Cub Cadet TC-590704

Rewind Starter Ass’y
(Superseded to TC-590788)

$65.99

$

Usually ships in 3-12 days

0

38

Cub Cadet TC-590768

Brake Spring

$

$

Currently unavailable

39

Cub Cadet TC-590679

Retainer

$3.99

$

Usually ships in 3-12 days

0

40

Cub Cadet TC-590680

Starter Dog

$5.99

$

In Stock, Qty 6

0

41

Cub Cadet TC-590412

Dog Spring

$8.49

$

In Stock, only 2 left!

0

42

Cub Cadet TC-590681

Pulley & Rewind Spring Ass’y

$

$

Not available

43

Cub Cadet TC-590747

Starter Housing Ass’y

$

$

Not available

44

Cub Cadet TC-590746

Rewind Starter Ass’y
(Superseded to TC-590788)

$65.99

$

Usually ships in 3-12 days
