CSV 260 (247-315C100) - Cub Cadet Chipper/Shredder/Vacuum (1997) Drive Parts Diagram

Chipper/Shredder/Vacuum

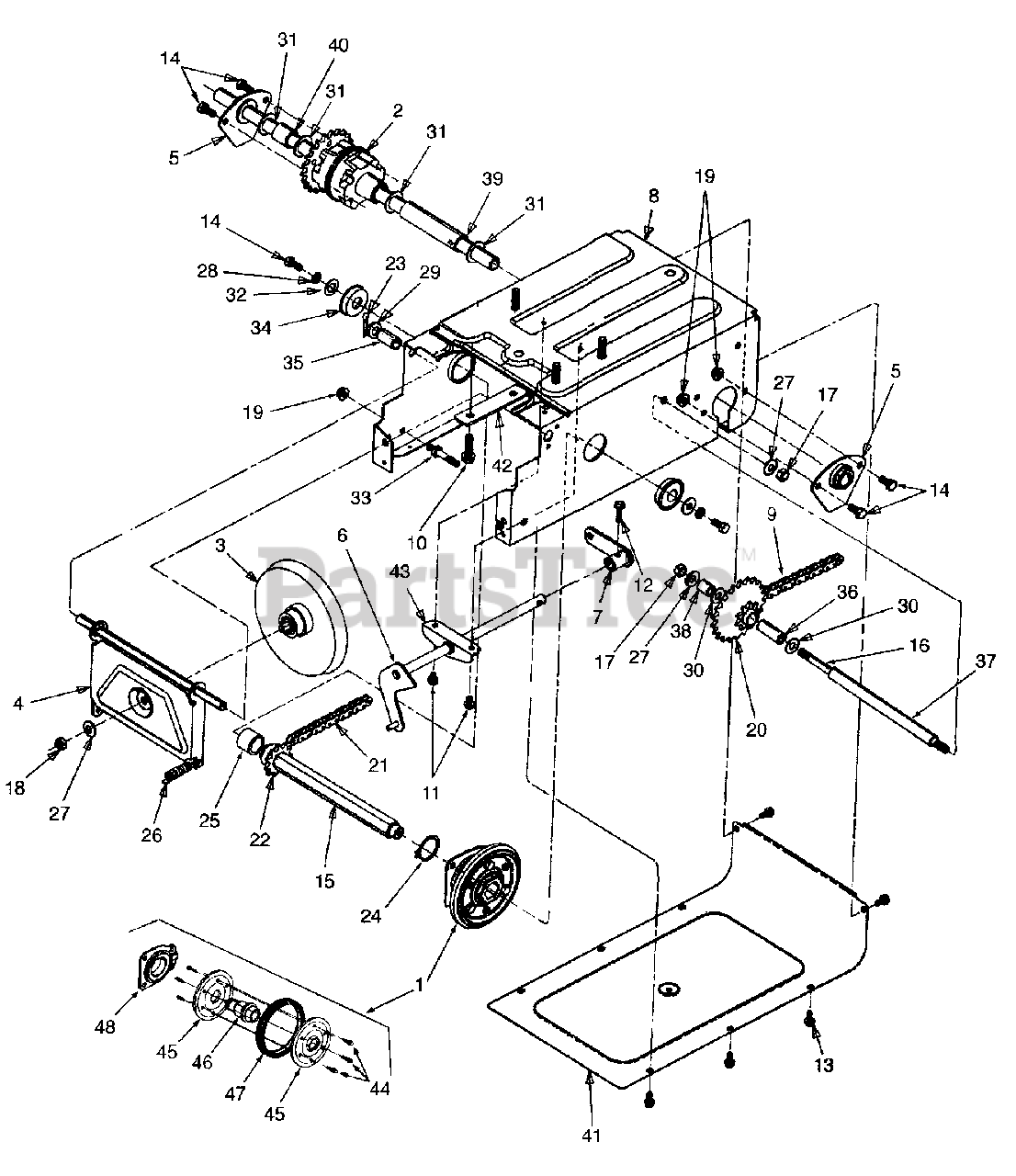

Drive Parts Diagram

  • Title

1

Cub Cadet 684-0042A

Friction Wheel Ass'y Complete
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

2

Cub Cadet 618-0168

Differential Ass'y Complete

$

$

Not available

3

Cub Cadet 656-0012A

Friction Disc Assembly
(Superseded to 956-0012A)

$117.99

$

In Stock, Qty 8

0

4

Cub Cadet 681-0055

Bracket Ass'y, Frctn Wheel Supt
(Superseded to 681-0055-0637)

$

$

Not available

5

Cub Cadet 681-0058

Bracket Ass'y, Axle

$

$

Not available

6

Cub Cadet 681-0082

Shaft Ass'y, Shift

$

$

Not available

7

Cub Cadet 681-0072

Arm Ass'y, Shift

Variations

Cub Cadet 681-0072-0637

SHIFT ARM (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 681-0081

Frame Assembly

Note: Code 0498

Variations

Cub Cadet 681-0081-0483

FRAME ASSEMBLY CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 681-0081-0498

FRAME ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0081-0638

FRAME ASSEMBLY (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 681-0081-0650

FRAME ASSEMBLY (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 681-0081-0716

FRAME ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

9

Cub Cadet 713-0374

Chain, #420 x 36 Lnks

$23.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0502A

Screw, Hex Wash Hd Tapp 3/8-16 x 1.25

$6.49

$

In Stock, Qty 7

0

11

Cub Cadet 710-0653

Screw, Hex Wash Hd Tapp 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

12

Cub Cadet 710-0788

Screw, Hex Wash Hd Tapp 1/4-20 x 1.0

$6.99

$

In Stock, only 4 left!

0

13

Cub Cadet 710-0896

Screw, Hex Wash Hd Tapp 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 711-1073

Hex Shaft

$

$

Not available

16

Cub Cadet 711-1028

Jack Shaft

$

$

Not available

17

Cub Cadet 712-0241

Nut, Hex, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0711

Nut, Hex Jam, 3/8-24

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet 713-0330

Sprocket Ass'y, 9T & 22T

$

$

Not available

21

Cub Cadet 713-0284

Chain, #41 x 36 Lnks

$22.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 713-0413

Sprocket, 10T

$11.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 714-0111

Pin, Cotter, 3/32 x 1.0

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 716-0102

Ring, Snap, 1.0 Dia

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 750-0998

Spacer, .675 x 1.0 x 1.53

$

$

Not available

26

Cub Cadet 732-0209

Spring, Extension
(Superseded to 932-0209)

$7.49

$

In Stock, Qty 11

0

27

Cub Cadet 736-0105

Washer, Bell, .406 x .870 x .063

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0160

Washer, Flat, .536 x .930 x .05

$3.99

$

In Stock, only 2 left!

0

30

Cub Cadet 736-0267

Washer, Flat, .385 x .87 x .06

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0287

Washer, Flat, .793 x 1.24 x .06

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-3089

Washer, Flat, .345 x 1.0 x .100

$

$

Not available

33

Cub Cadet 738-0908

Bolt, Idler

$

$

Not available

34

Cub Cadet 741-0563

Bearing, Ball
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

35

Cub Cadet 748-0382

Spacer, .508 x .75 x .94

$

$

Not available

36

Cub Cadet 750-0351

Sleeve, .380 x .623 x 1.5

$

$

Not available

37

Cub Cadet 750-0978

Spacer, .407 x .625 x 7.86

$

$

Not available

38

Cub Cadet 750-0979

Spacer, .407 x .625 x .71

$

$

Not available

39

Cub Cadet 750-0980

Spacer, .782 x 1.0 x 4.11

$

$

Not available

40

Cub Cadet 750-0981

Spacer, .782 x 1.0 x .99

$

$

Not available

41

Cub Cadet 781-0612A

Cover, Frame Bottom

Note: Code 0498

Variations

Cub Cadet 781-0612A-0483

FRAME COVER CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0612A-0498

FRAME COVER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0612A-0650

FRAME COVER (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0612A-0716

FRAME COVER (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

42

Cub Cadet 781-0638A

Plate, Frame Reinforcement

Variations

Cub Cadet 781-0638A-0483

REINFORCEMENT PLATE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0638A-0637

PLATE-REINFORCEMEN - POWDER BLACK (0637)

$

$

Not available

$

$

43

Cub Cadet 784-5590

Bracket, Frame Shift

Note: Code 0498

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$11.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 X .5

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 784-5617

Plate, Friction Wheel

$

$

Currently unavailable

46

Cub Cadet 718-0301A

Hub, Friction Wheel
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

47

Cub Cadet 735-0243

Wheel, Rubber Friction
(Superseded to 935-0243B)

$17.99

$

In Stock, Qty 20+

0

48

Cub Cadet 618-0063

Bearing Ass'y, Friction Wheel

$85.99

$

Usually ships in 3-6 days

0
