CSV 260 (24A-315C100) - Cub Cadet Chipper/Shredder/Vacuum (2001) Chute, Nozzle & Bag Parts Diagram

Chipper/Shredder/Vacuum

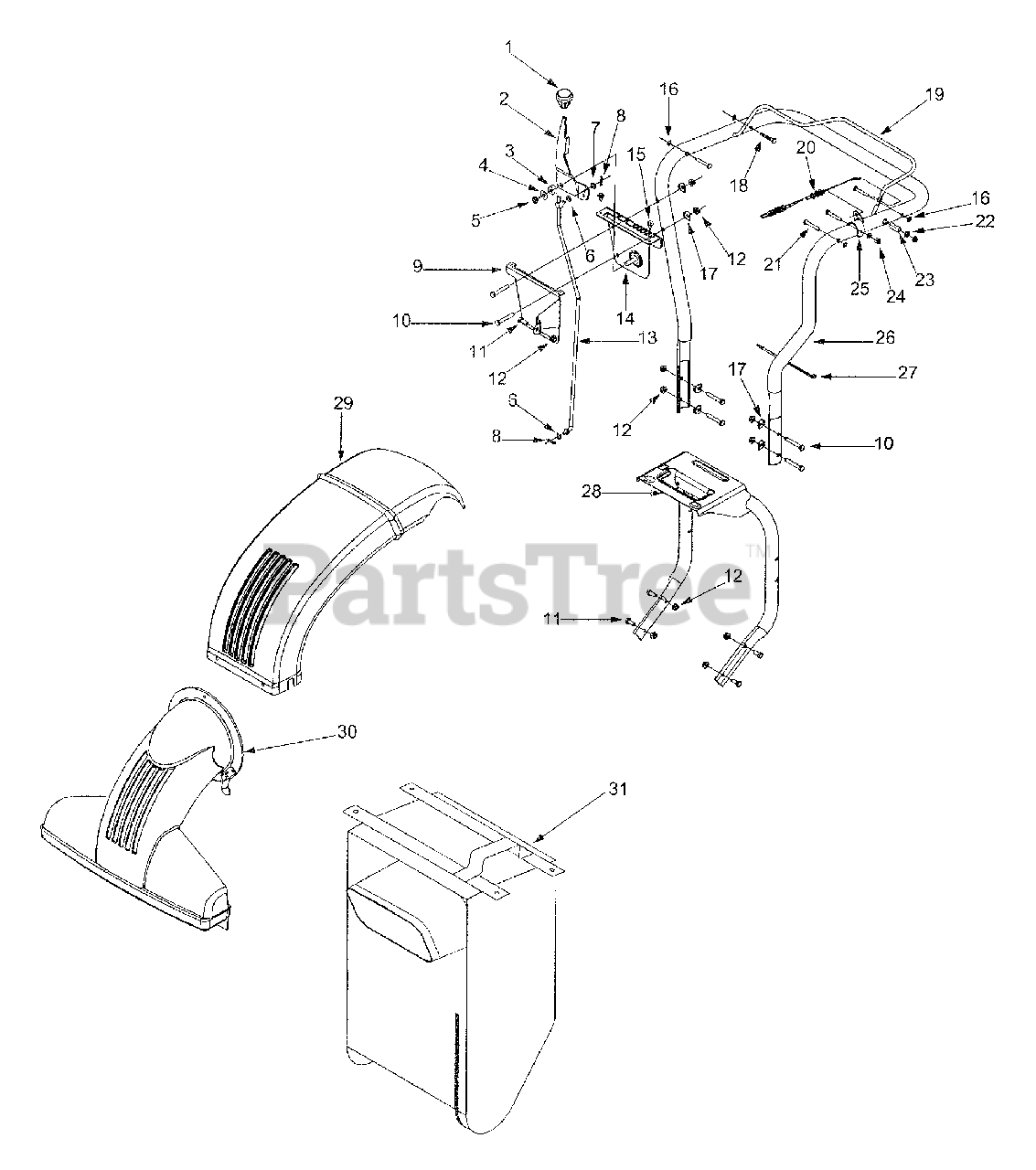

Chute, Nozzle & Bag Parts Diagram

  • Title

1

Cub Cadet 720-0232

Shift Knob
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

2

Cub Cadet 784-0297A

Shift Lever

Variations

Cub Cadet 784-0297A-0483

SHIFT HANDLE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0297A-0498

SHIFT HANDLE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0297A-0662

HANDLE-SHIFT (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0297A-0716

HANDLE-SHIFT (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

Cub Cadet 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

4

Cub Cadet 736-0300

Flat Washer

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0116

Lock Nut 3/8-24

$4.49

$

In Stock, Qty 7

0

6

Cub Cadet 736-0413

Spring Washer

$6.49

$

In Stock, only 3 left!

0

7

Cub Cadet 736-0117

Flat Washer .375 ID x .620 OD
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 781-0626

Shift Cover

Variations

Cub Cadet 781-0626-0483

SHIFT COVER CHAR - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0626-0637

SHIFT COVER POWDER BLAC - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0626-0650

SHIFT COVER - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0626-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0626-0716

SHIFT COVER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

10

Cub Cadet 710-3103

Hex Cap Screw 5/16-18 x 2.0

$4.49

$

In Stock, Qty 17

0

11

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet 747-0626

Shift Rod

$

$

Not available

14

Cub Cadet 681-0076

Shift Bracket Assembly

Variations

Cub Cadet 681-0076-0483

SHIFT ASSEMBLY BRACKET - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 681-0076-0498

SHIFT ASSEMBLY BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0076-0638

SHIFT ASSEMBLY BRACKET - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 681-0076-0650

SHIFT ASSEMBLY BRACKET - RED METALLIC (0650)

$

$

Not available

Cub Cadet 681-0076-0662

SHIFT ASSEMBLY BRACKET - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 681-0076-0689

SHIFT ASSEMBLY BRACKET - POLO GREEN (0689)

$

$

Not available

Cub Cadet 681-0076-0716

SHIFT ASSEMBLY BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$

$

15

Cub Cadet 710-0896

Hex Washer Screw 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 1539-019

Push Nut .250

$3.99

$

In Stock, Qty 16

0

17

Cub Cadet 736-0451

Shoulder Washer .320 ID x .93 OD

$3.99

$

In Stock, only 2 left!

0

18

Cub Cadet 711-0737

Pin .250 x 1.75
(Superseded to 911-0737)

$4.49

$

In Stock, Qty 11

0

19

Cub Cadet 747-1133

Drive Clutch Handle

Variations

Cub Cadet 747-1133-0498

CLUTCH CONTROL ROD - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 747-1133-0662

ROD CLUTCH CONTROL - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 747-1133-0716

CLUTCH CONTROL ROD - CUB YELLOW-99 (0716)

$

$

Not available

$

$

20

Cub Cadet 746-1080

Clutch Cable

$

$

Not available

21

Cub Cadet 710-0136

Hex Cap Screw 1/4-20 x 1.75

$3.99

$

In Stock, only 1 left!

0

22

Cub Cadet 736-0275

Flat Washer 5/16

$6.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 750-1185

Spacer .345 ID x .51 OD

$

$

Not available

24

Cub Cadet 712-0442

Lock Nut 1/4-20

$6.49

$

In Stock, Qty 5

0

25

Cub Cadet 781-0157

Cable Mounting Bracket

Variations

Cub Cadet 781-0157-0637

BRACKET CABLE MGT - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 749-1083

Upper Handle

Variations

Cub Cadet 749-1083-0498

HANDLE UPPER CSV - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 749-1083-0650

UPPER HANDLE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 749-1083-0716

UPPER HANDLE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

28

Cub Cadet 649-0012

Lower Handle

Variations

Cub Cadet 649-0012-0483

LOWER HANDLE ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 649-0012-0498

USE 649-0012-0716 HANDLE-ASSY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 649-0012-0637

LOWER HANDLE ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 649-0012-0638

LOWER HANDLE ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 649-0012-0650

LOWER HANDLE ASSEMBLY - RED METALLIC (0650)

$

$

Not available

Cub Cadet 649-0012-0716

HANDLE-ASSY-LOWER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

29

Cub Cadet 731-1616

Discharge Chute

$

$

Not available

30

Cub Cadet 631-0029

Nozzle Assembly

$

$

Not available

31

Cub Cadet 764-0474

Vacuum Bag

$

$

Not available
