CSV 260 (24A-315C100) - Cub Cadet Chipper/Shredder/Vacuum (2002) Drive Parts Diagram

Chipper/Shredder/Vacuum

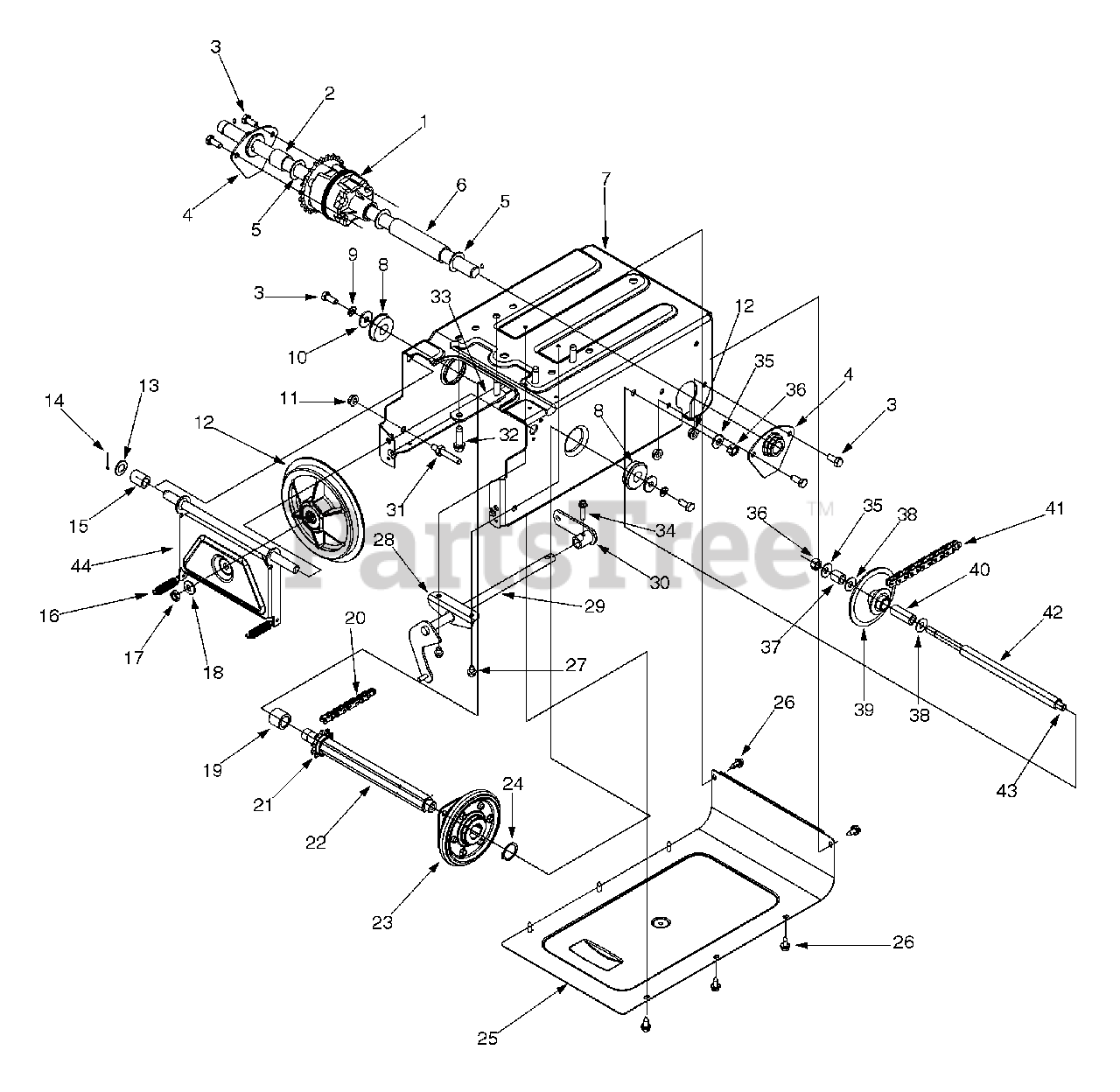

Drive Parts Diagram

  • Title

1

Cub Cadet 618-0168

Transmission Assembly

$

$

Not available

2

Cub Cadet 750-0981

Spacer .782 ID x 1.0 OD

$

$

Not available

3

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 681-0058

Axle Bracket Assembly

$

$

Not available

5

Cub Cadet 736-0287

Flat Washer .793 ID x 1.24 OD

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 750-0980

Spacer .782 ID x 1.0 OD

$

$

Not available

7

Cub Cadet 681-0081

Frame Assembly

Variations

Cub Cadet 681-0081-0483

FRAME ASSEMBLY CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 681-0081-0498

FRAME ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0081-0638

FRAME ASSEMBLY (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 681-0081-0650

FRAME ASSEMBLY (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 681-0081-0716

FRAME ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

8

Cub Cadet 741-0563

Ball Bearing
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-3089

Flat Washer .312 ID x .934 OD

$

$

Not available

11

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet 656-0012A

Friction Disc Assembly
(Superseded to 956-0012A)

$117.99

$

In Stock, Qty 8

0

13

Cub Cadet 736-0160

Flat Washer .53 ID x .93 OD

$3.99

$

In Stock, only 2 left!

0

14

Cub Cadet 714-0111

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 748-0382

Spacer .508 ID x .75 OD

$

$

Not available

16

Cub Cadet 732-0209

Extension Spring .48 OD x 2.03
(Superseded to 932-0209)

$7.49

$

In Stock, Qty 11

0

17

Cub Cadet 712-0711

Jam Nut 3/8-24

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0105

Spring Washer .401 ID x .870 OD

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 750-0998

Spacer .675 ID x 1.0 OD

$

$

Not available

20

Cub Cadet 713-0284

Chain #41 36 Links

$22.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 713-0413

Sprocket 10T #41

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 711-1073

Hex Shaft .875

$

$

Not available

23

Cub Cadet 684-0042B

Friction Wheel Assembly
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

24

Cub Cadet 716-0102

Snap Ring 1.0 Dia.

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 781-0612A

Bottom Frame Cover

Variations

Cub Cadet 781-0612A-0483

FRAME COVER CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0612A-0498

FRAME COVER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0612A-0650

FRAME COVER (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0612A-0716

FRAME COVER (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

26

Cub Cadet 710-0896

Hex Washer Screw 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0653

Hex Washer Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

28

Cub Cadet 784-5590

Frame Shift Bracket

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$11.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 681-0082

Shift Shaft Assembly

$

$

Not available

30

Cub Cadet 681-0072

Shift Assembly

Variations

Cub Cadet 681-0072-0637

SHIFT ARM (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 738-0908

Idler Bolt 5/16-18 x 2.25

$

$

Not available

32

Cub Cadet 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.49

$

In Stock, Qty 7

0

33

Cub Cadet 781-0638A

Frame Reinforcement Plate

Variations

Cub Cadet 781-0638A-0483

REINFORCEMENT PLATE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0638A-0637

PLATE-REINFORCEMEN - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 710-0788

Hex Washer Screw 1/4-20 x 1.0

$6.99

$

In Stock, only 4 left!

0

35

Cub Cadet 736-0105

Spring Washer .401 ID x .870 OD

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 750-0979

Spacer .407 ID x .625 OD

$

$

Not available

38

Cub Cadet 736-0267

Flat Washer .375 ID x .870 OD

$4.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 713-0330

Sprocket Assembly 9T & 22T

$

$

Not available

40

Cub Cadet 750-0351

Sleeve .380 ID x .623 OD x 1.5

$

$

Not available

41

Cub Cadet 713-0374

Chain #420 36L

$23.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 750-0978

Spacer .407 ID x .625 OD x 7.86

$

$

Not available

43

Cub Cadet 711-1028

Jack Shaft .375 x 11.40

$

$

Not available

44

Cub Cadet 681-0055

Friction Wheel Support Bracket
(Superseded to 681-0055-0637)

$

$

Not available
