CSV 260 (24A-315C101) - Cub Cadet Chipper/Shredder/Vacuum (1998) Differential Parts Diagram

Chipper/Shredder/Vacuum

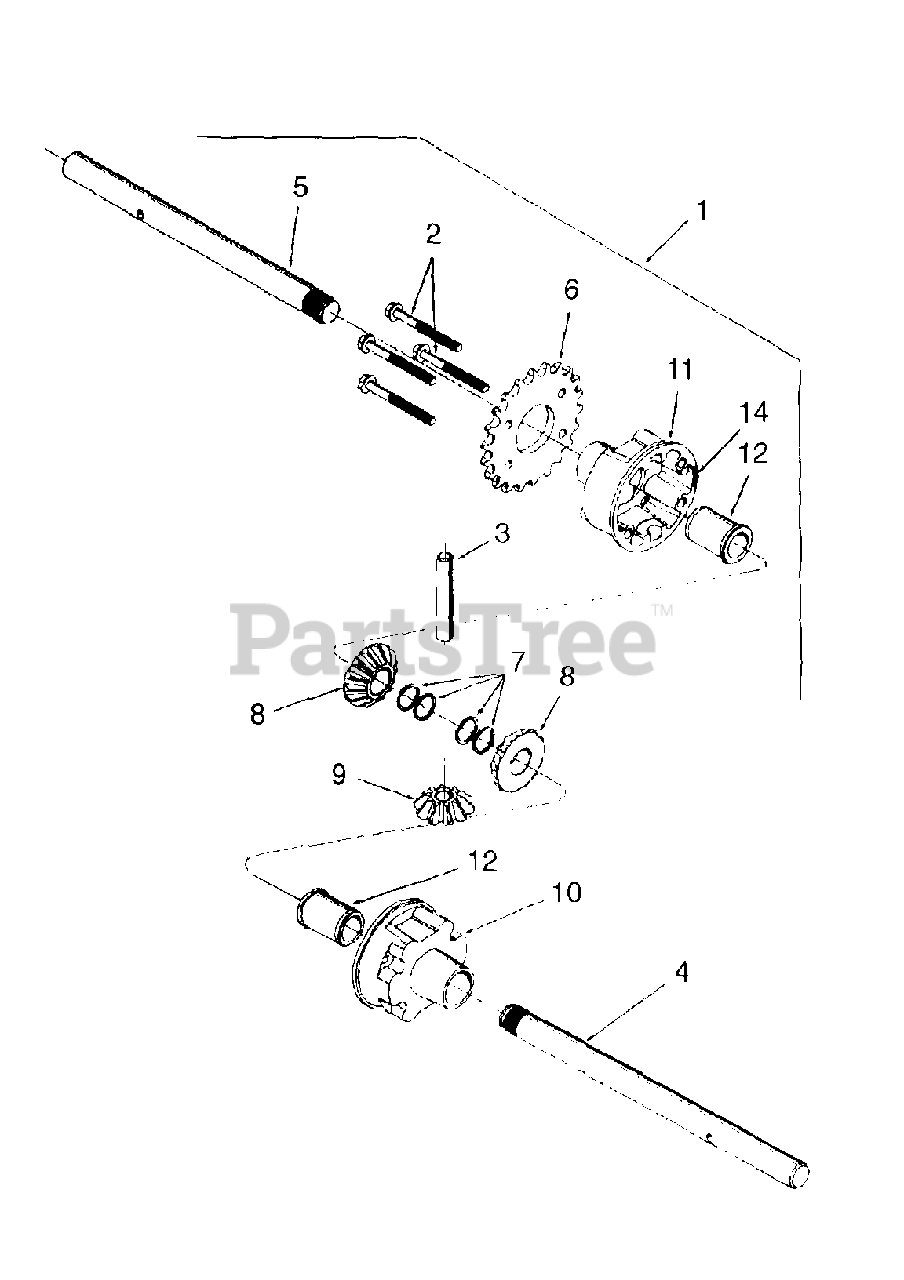

Differential Parts Diagram

  • Title

1

Cub Cadet 618-0168

Differential Ass'y Complete

$

$

Not available

2

Cub Cadet 710-1206

Screw, Hex Wash Hd Tapp 1/4-20 x 2-5/16

$7.49

$

In Stock, only 2 left!

0

3

Cub Cadet 711-1035

Cross Shaft

$

$

Not available

4

Cub Cadet 711-1037

Axle Shaft, .75 x 10.95

$

$

Not available

5

Cub Cadet 711-1038

Axle Shaft, .75 x 9.82

$

$

Not available

6

Cub Cadet 713-0445

Sprocket, 227

$

$

Not available

7

Cub Cadet 716-0232

Ring, Retaining

$

$

Not available

8

Cub Cadet 717-1358

Gear, Differential, 14T

$

$

Not available

9

Cub Cadet 717-1437

Gear, Differential, 10T

$

$

Not available

10

Cub Cadet 719-0333

Housing, Differential RH

$

$

Not available

11

Cub Cadet 719-0334

Housing, Differential LH

$

$

Not available

12

Cub Cadet 748-0383

Bearing, Flange, .75 ID x 1.0 OD
(Superseded to 948-0383)

$

$

Not available

?13

Cub Cadet 737-0300

Grease, Benalene
(Superseded to 737-0300A)

$36.99

$

In Stock, Qty 6

0

14

Cub Cadet 721-0328

Sealant, Ultra Grey Loctite 5699

$

$

Currently unavailable
