CSV 260 (24A-315C101) - Cub Cadet Chipper/Shredder/Vacuum (1998) Drive Parts Diagram

Chipper/Shredder/Vacuum

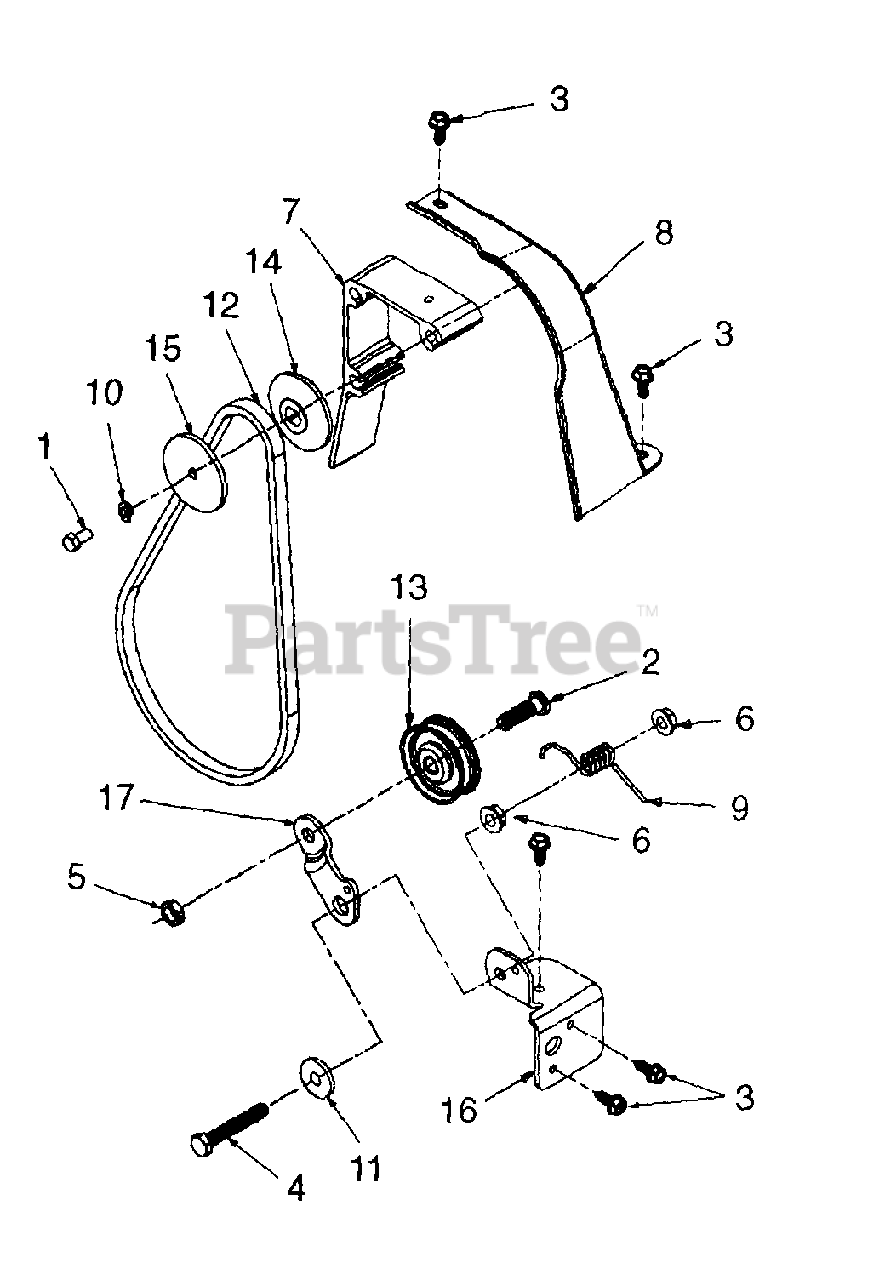

Drive Parts Diagram

  • Title

1

Cub Cadet 710-0230

Screw, Hex Cap, 1/4-28 x .50

$

$

Not available

2

Cub Cadet 710-0723

Screw, Hex Cap, 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

3

Cub Cadet 710-0896

Screw, Hex Wash Hd Tapp. 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0646

Screw, Hex Cap, 5/16-18 x 2.0
(Superseded to 710-04039)

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 712-0266

Nut, Hex Cent-L Jam, 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 719-0330A

Adapter, Engine Mtg

$

$

Not available

8

Cub Cadet 731-1584

Belt Cover

Variations

Cub Cadet 731-1584-0637

Belt Cover, Plastic - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 732-0745

Spring, Torsion, .54 x 1.0

$

$

Not available

10

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

11

Cub Cadet 748-0234

Shoulder Spacer, .50 ID x .27 Lg

$4.49

$

In Stock, Qty 10

0

12

Cub Cadet 754-0256

V-Belt, 3/8 x 29.0 Lg
(Superseded to 954-0256)

$47.99

$

In Stock, only 3 left!

0

13

Cub Cadet 756-0313

Pulley, Flat Idler

$24.99

$

In Stock, Qty 8

0

14

Cub Cadet 756-0986

Pulley Half, 2.0 Dia

$

$

Not available

15

Cub Cadet 756-0987

Pulley Half, 2.0 Dia
(Superseded to 956-0987)

$

$

Not available

16

Cub Cadet 781-0611-0498

Bracket, Idler Pivot

$

$

Not available

17

Cub Cadet 781-0614

Bracket, Idler

$

$

Not available
