CSV 260 (24A-315C101) - Cub Cadet Chipper/Shredder/Vacuum (1998) Handle Assembly Parts Diagram

Chipper/Shredder/Vacuum

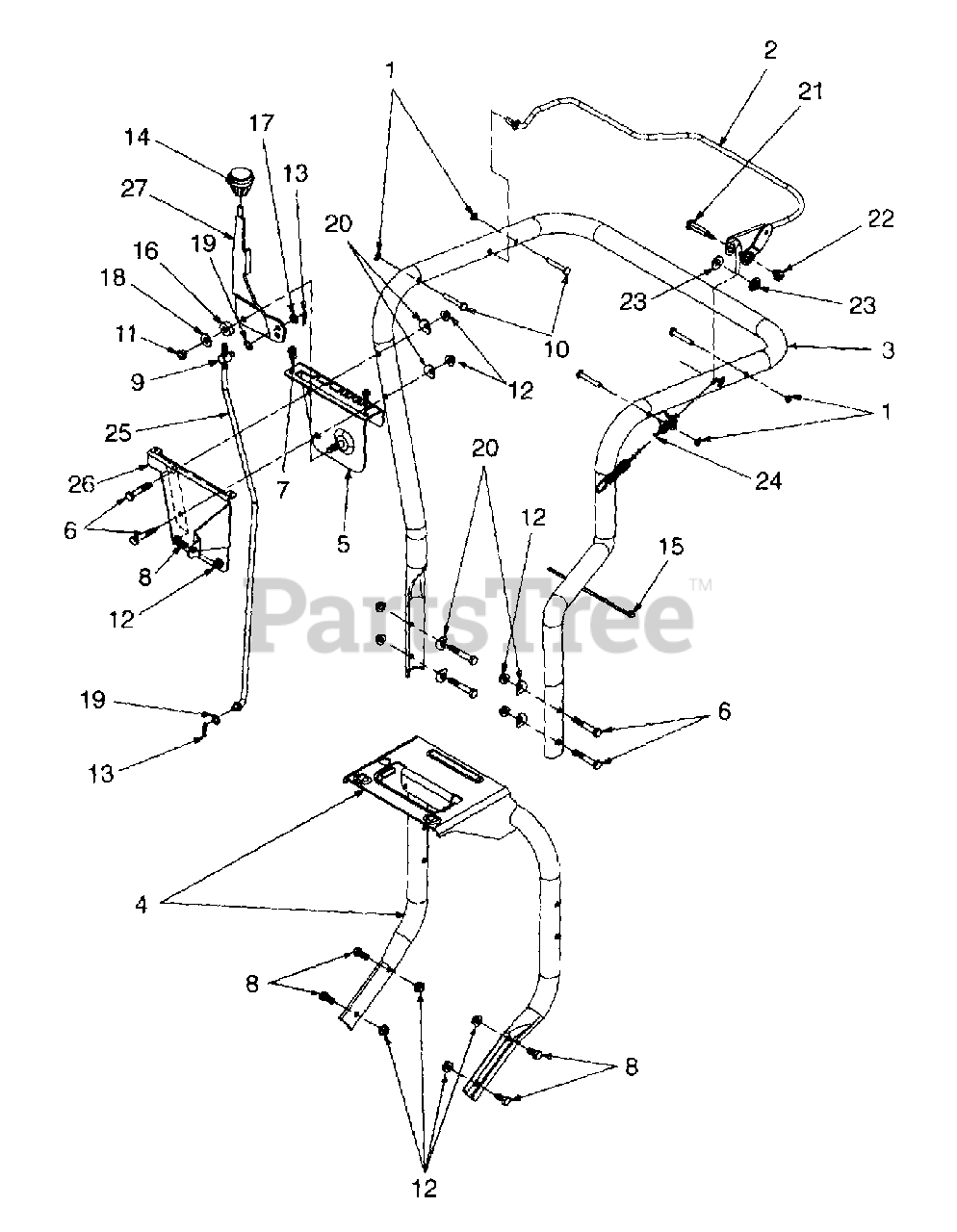

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 1539-019

Nut, Push, .25

$3.99

$

In Stock, Qty 16

0

2

Cub Cadet 647-0019-0498

Control Assembly, Clutch

$

$

Not available

3

Cub Cadet 649-0008-0498

Handle Assembly, Upper

$

$

Not available

4

Cub Cadet 649-0012-0498

Handle Assembly, Lower
(Superseded to 649-0012-0716)

$

$

Not available

5

Cub Cadet 681-0076-0498

Bracket Assembly, Shift
(Superseded to 681-0076-0637)

$

$

Not available

6

Cub Cadet 710-0116

Screw, Hex Cap, 5/16-18 x 2.0
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 19

0

7

Cub Cadet 710-0896

Screw,Hex Wash Hd, 4-14x

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

10

Cub Cadet 711-0737

Pin, Stud, .250 x 1.75
(Superseded to 911-0737)

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 712-0116

Nut, Hex Insert Jam Lock 3/8

$4.49

$

In Stock, Qty 7

0

12

Cub Cadet 712-3004A

Nut, Hex Flange Lock 5/16-18

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0104

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 720-0232

Knob, Shift
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

15

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

16

Cub Cadet 735-0126

Washer, Rubber
(Superseded to 735-0126A)

$

$

Not available

17

Cub Cadet 736-0117

Washer, Flat, .385 x .62 x .06
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

18

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0413

Washer, Spring, .390 x .62

$6.49

$

In Stock, only 3 left!

0

20

Cub Cadet 736-0451

Washer, Saddle, .320 x .93

$3.99

$

In Stock, only 2 left!

0

21

Cub Cadet 738-0560

Shoulder Screw, .374 x 1.375
(Superseded to 938-0560)

$9.99

$

In Stock, only 2 left!

0

22

Cub Cadet 738-0561

Shoulder Nut, 1/4-20
(Superseded to 938-0561)

$9.49

$

In Stock, only 1 left!

0

23

Cub Cadet 741-0402

Bearing, Hex Plastic Flange

$

$

Not available

24

Cub Cadet 746-0921

Cable, Clutch
(Superseded to 946-0921)

$55.99

$

In Stock, only 4 left!

0

25

Cub Cadet 747-0626

Rod, Shift

$

$

Not available

26

Cub Cadet 781-0626-0498

Cover, Shift

$

$

Currently unavailable

27

Cub Cadet 784-0297A

Handle, Shift

Variations

Cub Cadet 784-0297A-0483

SHIFT HANDLE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0297A-0498

SHIFT HANDLE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0297A-0662

HANDLE-SHIFT (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0297A-0716

HANDLE-SHIFT (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$
