CSV-5 - Echo Chipper Shredder Vacuum Handlebar, Rear Axle, Engine Frame (Push Model Only) Parts Diagram

Chipper Shredder Vacuum

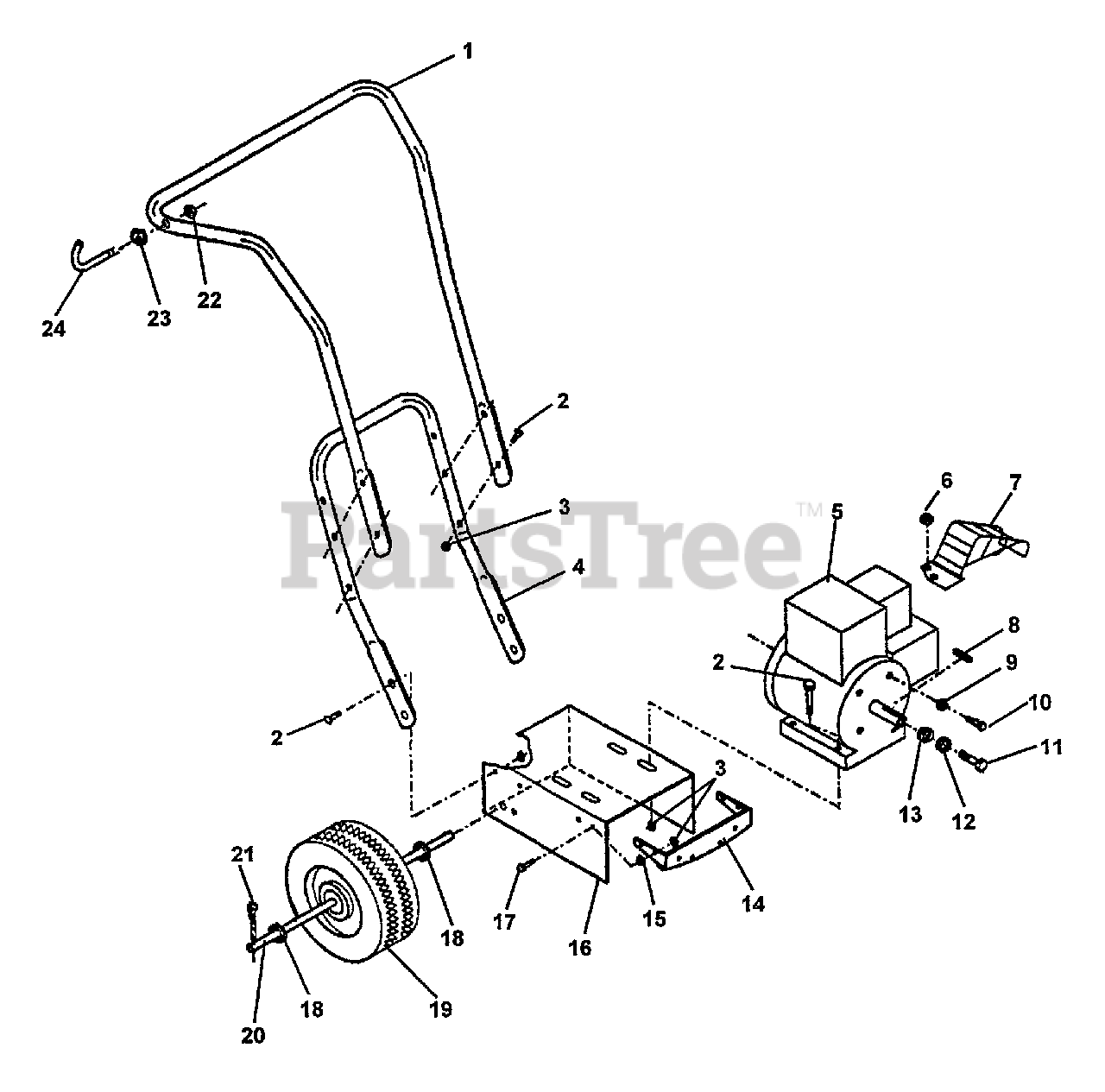

Handlebar, Rear Axle, Engine Frame (Push Model Only) Parts Diagram

  • Title

------------------

ENGINE - BRIGGS & STRATTON 5HP

Note: MODEL 135212 TYPE 0308

$

$

Not available

9

LOCKWASHER - 5/16"

Note: Purchase Local Source

$

$

Not available

------------------

BOLT - 5/16-24×1"

Note: Purchase Local Source

$

$

Not available

13

WASHER - 5/16"

Note: Purchase Local Source

$

$

Not available

------------------

BOLT - 5/16-18×1-1/4"

Note: Purchase Local Source

$

$

Not available

18

WASHER - 5/8"

Note: Purchase Local Source

$

$

Not available

------------------

PIN, COTTER 1/8×1-1/4

Note: Purchase Local Source

$

$

Not available
