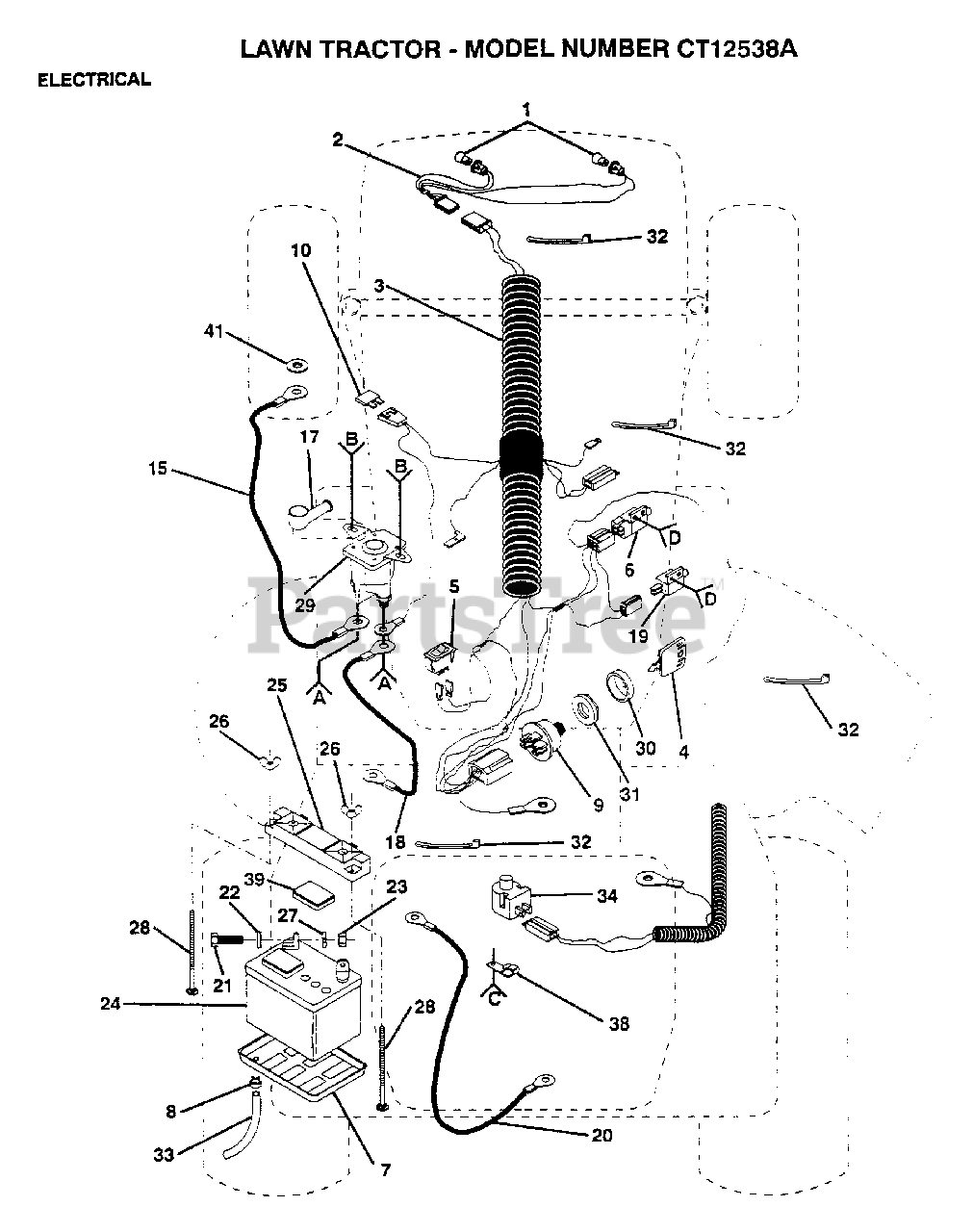

CT 12538 A - Electrolux/AYP Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Electrolux/AYP 7662J

SUB= 4152J
(Superseded to 532004152)

$5.99

$

In Stock, Qty 20+

0

2

Electrolux/AYP 110859X

HARNESS T
(Superseded to 532110859)

$

$

Not available

3

Electrolux/AYP 124904X

"HARNESS,WIRING"

$

$

Not available

4

Electrolux/AYP 7552H

SUB= STD365410

$

$

Not available

5

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$9.49

$

In Stock, Qty 12

0

6

Electrolux/AYP 104445X

SWITCH-INTER. GT
(Superseded to 532104445)

$17.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$7.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$

$

Not available

9

Electrolux/AYP 4406R

SUB= STD365402

$

$

Not available

10

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$

$

Not available

15

Electrolux/AYP 2033J

SUB= 2955J

$

$

Not available

17

Electrolux/AYP 719J

SUB= 154336

$

$

Not available

18

Electrolux/AYP 5114J

STARTER CABLE GT
(Superseded to 532005114)

$

$

Not available

19

Electrolux/AYP 109553X

SWITCH INTERLOCKT
(Superseded to 539101080)

$23.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 5907J

SUB= 597J

$

$

Not available

21

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$3.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$

$

Not available

23

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 121265X

SUB= 123899X

$

$

Not available

25

Electrolux/AYP 102476X

SUB= 150109
(Superseded to 532102476)

$

$

Not available

26

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

27

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 72240460

BOLT
(Superseded to 872240460)

$

$

Not available

29

Electrolux/AYP 109081X

SUB= 146154

$

$

Not available

30

Electrolux/AYP 109787X

SUB= 147626

$

$

Not available

31

Electrolux/AYP 109788X

SUB= 124211X

$

$

Not available

32

Electrolux/AYP 7192J

WIRE TIE
(Superseded to 532007192)

$9.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 105687X

SUB= 109238X

$

$

Not available

34

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$15.99

$

In Stock, Qty 14

0

38

Electrolux/AYP 4171R

CLIP T

$

$

Not available

39

Electrolux/AYP 121264X

"CAP,BATTERY "
(Superseded to 532121264)

$

$

Not available

41

Electrolux/AYP 11050400

LOCKWASHER

$2.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 101539X

SHEET INSTR LT
(Superseded to 532101539)

$

$

Not available

Electrolux/AYP 128879

NLA

$

$

Not available

Electrolux/AYP 127903

NLA

$

$

Not available
