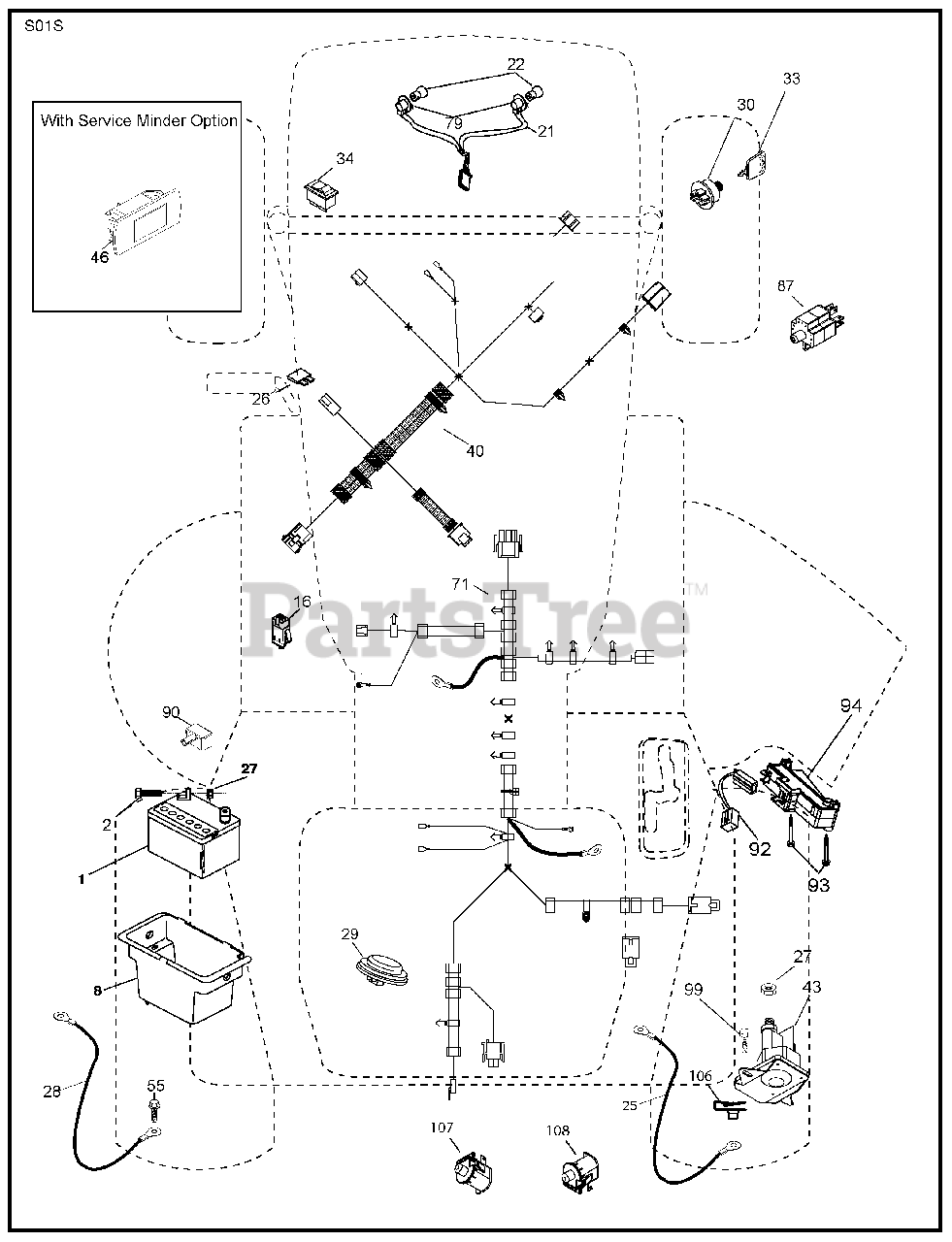

CT 126 (960410077-01) - Husqvarna 30" Lawn Tractor (2010-01) Electrical Parts Diagram

30" Lawn Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532144924

Battery
(Superseded to 532123899)

$205.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

Bolt Hex Head 1/4-20 x 3/4

$3.99

$

In Stock, Qty 5

0

8

Husqvarna 532419791

Box Battery
(Superseded to 583377701)

$26.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532176138

Switch Interlock Push-In

$22.99

$

In Stock, Qty 10

0

21

Husqvarna 532400252

Harness Socket Light w/4152J

$26.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb Light

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532416694

Cable Starter

$22.99

$

In Stock, only 3 left!

0

26

Husqvarna 532175158

Fuse

$5.99

$

In Stock, Qty 16

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532421686

Cable, Ground
(Superseded to 583390701)

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

Switch, Seat

$39.99

$

In Stock, Qty 20+

0

30

Husqvarna 532193350

Switch, Ign

$26.99

$

In Stock, Qty 20+

0

33

Husqvarna 532411935

Key/Chain

$11.99

$

In Stock, Qty 6

0

34

Husqvarna 532110712

Switch Light/Reset

$9.49

$

In Stock, Qty 8

0

40

Husqvarna 532421002

Harness Ign. Dash
(Superseded to 583384801)

$113.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532192507

Solenoid
(Superseded to 582042802)

$28.99

$

In Stock, Qty 20+

0

55

Husqvarna 817060512

Screw Thdrol 5/16-18 x 3/4 TYTT
(Superseded to 532171877)

$5.99

$

In Stock, only 2 left!

0

71

Husqvarna 532429412

Harness Ign. Chassis
(Superseded to 583451301)

$159.99

$

In Stock, only 1 left!

0

79

Husqvarna 532175242

Socket Asm. Bulb

$11.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532421060

Switch Railmount NO-NC-NC
(Superseded to 583385701)

$22.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532400725

Cover Terminal
(Superseded to 532435395)

$5.99

$

In Stock, only 2 left!

0

92

Husqvarna 532196615

Harness Pigtail Console ROS

$17.99

$

In Stock, only 1 left!

0

93

Husqvarna 532192540

Screw Plastite 14 X 6
(Superseded to 596039601)

$2.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

Module Reverse ROS

$26.99

$

In Stock, only 3 left!

0

99

Husqvarna 817670412

Screw 1/4-20 x 3/4

$4.99

$

In Stock, only 2 left!

0

106

Husqvarna 532174814

Palnut 1/4 Lugs

$3.49

$

In Stock, only 1 left!

0

107

Husqvarna 532421061

Switch Snapmount No #2

$13.99

$

In Stock, only 2 left!

0

108

Husqvarna 532421062

Switch Snapmount NC

$17.99

$

In Stock, Qty 13

0
