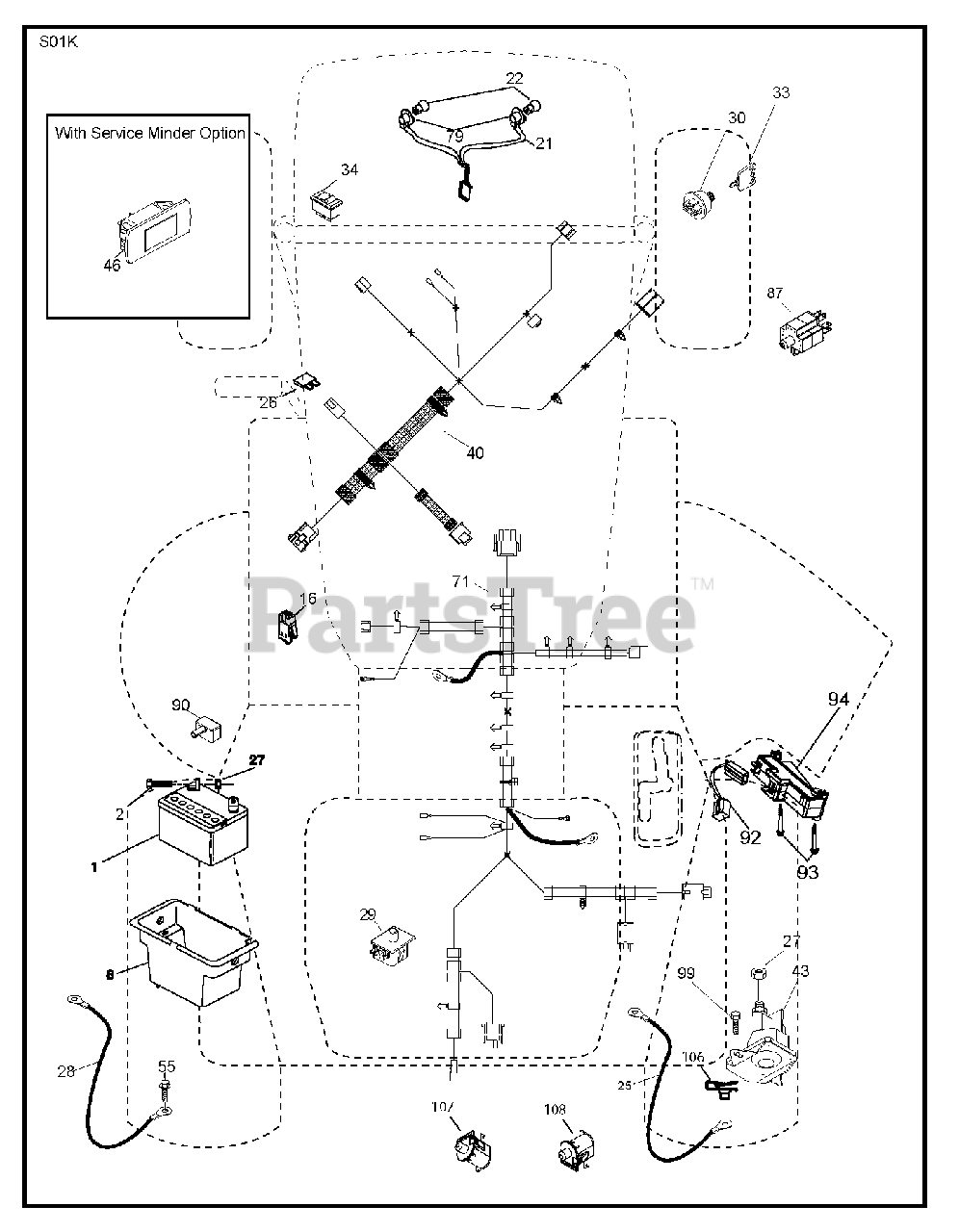

CT 126 (960510007-03) - Husqvarna 30" Lawn Tractor (2011-07) ELECTRICAL Parts Diagram

30" Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna 532144924

REPL BY 532 12 38-99
(Superseded to 532123899)

$205.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, Qty 5

0

8

Husqvarna 532419791

BOX.BATTERY.LT/SRD
(Superseded to 583377701)

$26.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 10

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$26.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532416694

CABLE.BATTERY.20.RED.8 AWG

$22.99

$

In Stock, only 3 left!

0

26

Husqvarna 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 16

0

27

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532421686

CABLE.GROUND.REAR.BATTERY.8G
(Superseded to 583390701)

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 20+

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$26.99

$

In Stock, Qty 20+

0

33

Husqvarna 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$11.99

$

In Stock, Qty 7

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 8

0

40

Husqvarna 532421002

RP HARNESS.ELECTRICAL.DASH.SRD
(Superseded to 583384801)

$113.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$28.99

$

In Stock, Qty 20+

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, only 2 left!

0

71

Husqvarna 532429412

RP HARNESS.ELEC.CHASSIS.SRD
(Superseded to 583451301)

$159.99

$

In Stock, only 1 left!

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$11.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532421060

RP SWITCH.RAILMOUNT.NO-NC-NC
(Superseded to 583385701)

$22.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$5.99

$

In Stock, only 2 left!

0

92

Husqvarna 532196615

HARNESS.PIGTAIL.CONSLE

$17.99

$

In Stock, only 1 left!

0

93

Husqvarna 532192540

SCREW.PLASTITE
(Superseded to 596039601)

$2.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

MODULE.REVERSE.ROS

$26.99

$

In Stock, only 3 left!

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

106

Husqvarna 532174814

1/4-20 U NUT

$3.49

$

In Stock, only 1 left!

0

107

Husqvarna 532421061

SWITCH.SNAPMOUNT.NO.#2

$13.99

$

In Stock, only 2 left!

0

108

Husqvarna 532421062

SWITCH.SNAPMOUNT.NC

$17.99

$

In Stock, Qty 13

0
