CT 130 (954170012-A) - Husqvarna 36" Lawn Tractor (1999-03) CHASSIS & ENCLOSURES Parts Diagram

36" Lawn Tractor

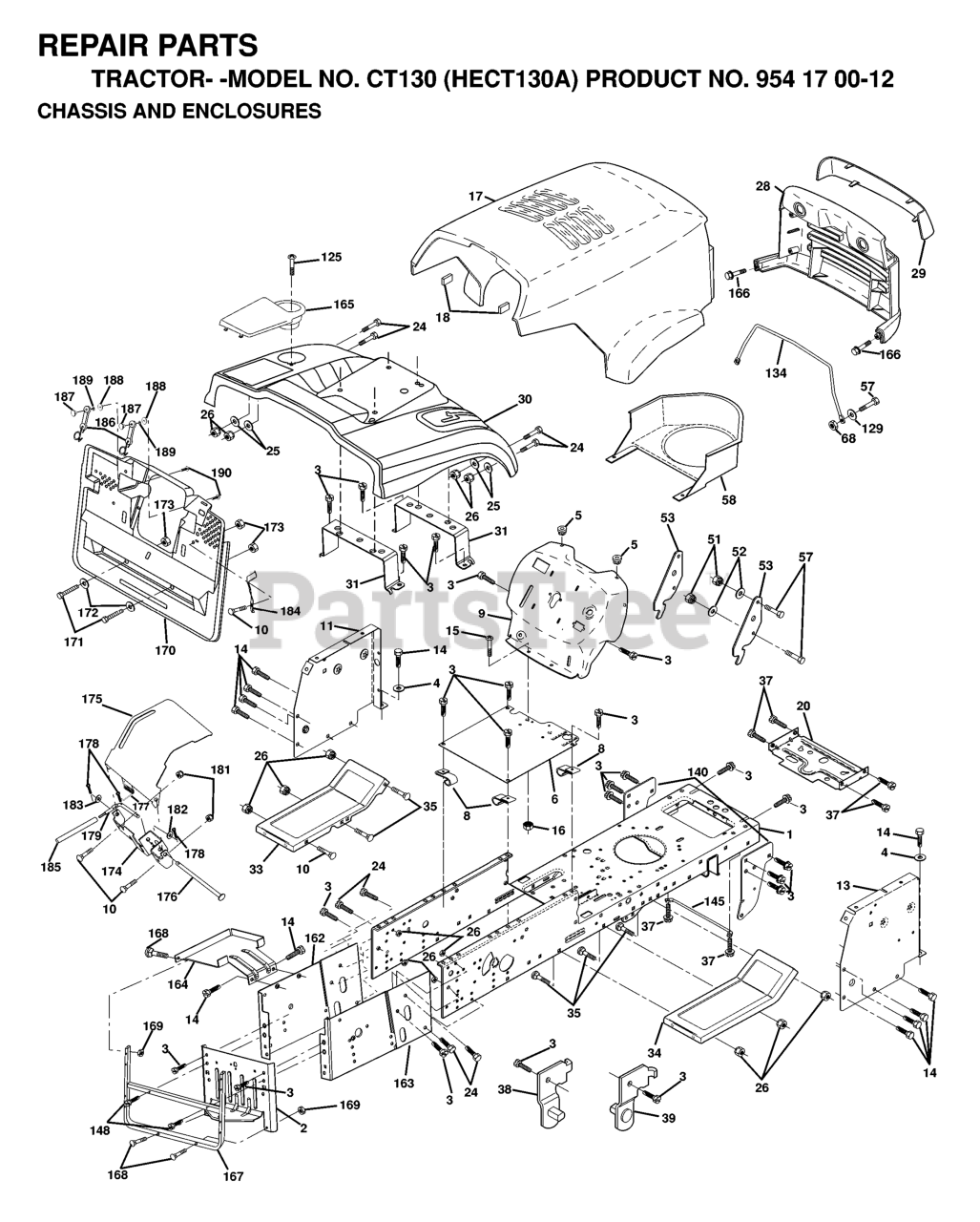

CHASSIS & ENCLOSURES Parts Diagram

  • Title

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

187

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

140

Husqvarna 532158418

BRACKET SUSPENSION FRONT

$

$

Not available

134

Husqvarna 532160219

ROD SUPPORT HOOD LT/PL HUS.

$7.99

$

Usually ships in 3-10 days

0

129

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532165606

DRAWBAR

$56.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532165672

BRACKET

$72.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532155923

SADDLE FLAT

$14.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532150067

BRACKET PNT PICK OFF LT/PL

$

$

Not available

35

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 874180512

Screw, Machine, Truss Head 5/16-18 UNC x 3/4

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

33

Husqvarna 532147203

FOOT REST LH

$

$

Not available

186

532160793

LATCH ASSY

$

$

Not available

166

Husqvarna 532164863

SCREW
(Superseded to 532189747)

$12.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532165378

HOOD
(Superseded to 532156051)

$519.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532128600

HINGE PIN
(Superseded to 532192786)

$12.99

$

Usually ships in 3-10 days

0

174

Husqvarna 532165939

BRACKET

$

$

Not available

52

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

125

Husqvarna 874180412

SCREW.MACHINE.CR.1/4-20

$4.99

$

In Stock, only 4 left!

0

- -

Husqvarna 532005479

PLUG BUTTON T

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

163

Husqvarna 532165673

BRACKET

$

$

Not available

171

Husqvarna 874520628

Bolt, 3/8-16 x 1-3/4

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, Qty 5

0

164

Husqvarna 532165605

SUPPORT

$

$

Not available

38

Husqvarna 532139886

BRACKET LH PIVOT

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532167977

PANEL

$109.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532168428

GUARD

$728.99

$

Usually ships in 3-10 days

0

188

Husqvarna 819061216

WASHER

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

31

Husqvarna 532165156

BRACKET SUPPORT FENDER

$

$

Not available

190

Husqvarna 871161010

SCREW
(Superseded to 871081010)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 532165380

LENS
(Superseded to 532149777)

$

$

Not available

57

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532155936

DASH PANEL
(Superseded to 532172108)

$

$

Not available

68

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

181

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532167979

COVER BATTERY
(Superseded to 583687501)

$

$

Not available

189

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 532165379

GRILL
(Superseded to 532156880)

$

$

Not available

16

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

185

Husqvarna 532165940

TUBE LEVER

$6.49

$

Usually ships in 3-10 days

0

148

Husqvarna 817490620

SCREW
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

180

Husqvarna 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

178

Husqvarna 876020312

COTTER PIN
(Superseded to 876020308)

$

$

Not available

170

Husqvarna 532165607

COVER BACKPLATE

$182.99

$

Usually ships in 3-10 days

0

14

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

172

Husqvarna 819132016

WASHER
(Superseded to 819132012)

$3.49

$

In Stock, Qty 20+

0

183

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532156437

PLATE MTG
(Superseded to 532180679)

$10.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532139887

BRACKET RH PIVOT

$8.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532138200

WASHER

$4.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532166212

GUARD

$

$

Not available

173

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

179

Husqvarna 532165942

ROD PIVOT

$7.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532132796

SPRING COVER LH

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 819131216

Washer 13/32 X 3/4 X 16 Ga.

$

$

Not available

169

Husqvarna 532123976

NUT T
(Superseded to 873900400)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532155927

PANEL DASH LH
(Superseded to 532174996)

$11.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

AIR DUCT P/L/LT

$

$

Not available

184

Husqvarna 532166139

BRACKET

$

$

Not available

168

Husqvarna 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

167

Husqvarna 532165779

SUPPORT.ASM.BACKPLATE

$66.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532165480

CHASSIS

$

$

Not available

34

Husqvarna 532147202

FOOTREST RH
(Superseded to 532145243)

$

$

Not available

18

Husqvarna 532126938

BUMPER HOOD T

$

$

Not available
