CT 150 (954170019-B) - Husqvarna 42" Lawn Tractor (2000-01) Drive Parts Diagram

42" Lawn Tractor

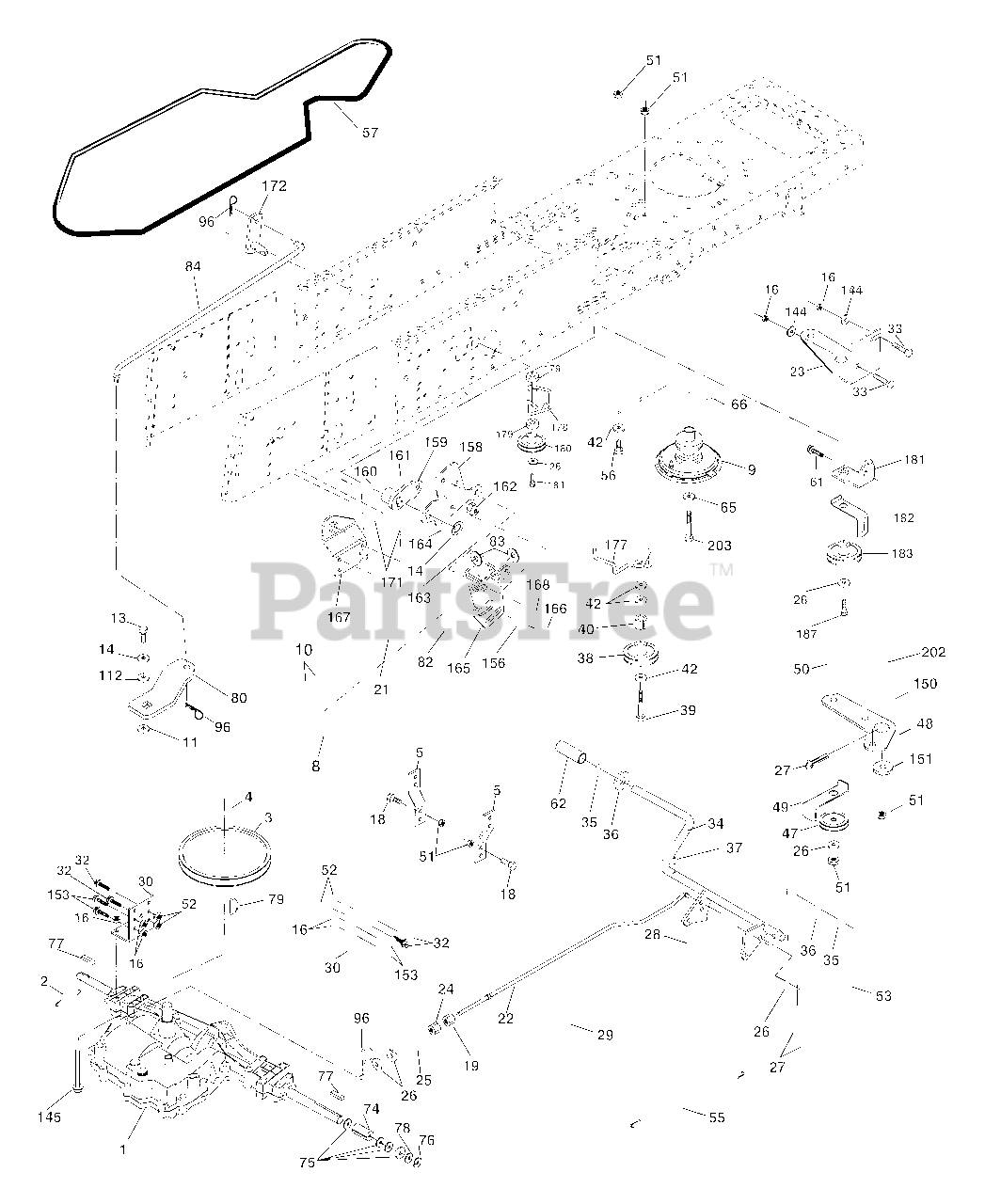

Drive Parts Diagram

  • Title

1

Transaxle Peerless 206-546

Note: (Order parts from transaxle manufacturer)

$

$

Not available

2

Husqvarna 532146682

Spring Brake Return

$8.99

$

In Stock, only 1 left!

0

3

Husqvarna 532165999

Pulley Transaxle
(Superseded to 584450701)

$60.99

$

Usually ships in 3-10 days

0

4

Husqvarna 812000028

Ring Retainer #5100-62

$7.49

$

In Stock, Qty 20+

0

5

Husqvarna 532121520

Strap torque 30 degrees

$7.49

$

In Stock, only 3 left!

0

8

Husqvarna 532165619

Rod Shift Fender Adjust Lt

$

$

Not available

9

Husqvarna 532170163

Clutch Asm Noram
(Superseded to 532179887)

$605.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532105701

Washer Plate Shf .3888 sq hole

$6.49

$

In Stock, only 1 left!

0

13

Husqvarna 874550412

Bolt 1/4-28 Unf Gr 8 w/patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

Washer, Lock Hvy Helical
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 873800500

Nut, Lock Hex w/Ins 5/16-18 UNC

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874780616

Bolt Hex 3/8-16 UNC x 1 Gr.5

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

Nut, Lock Hex w/Wsh 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532150280

Bolt, Hex 7/16-20 x 4-1/4 5 Ga. 1.38
(Superseded to 532173937)

$4.99

$

In Stock, Qty 11

0

21

Husqvarna 532121274

Knob Duckhead 1/2-13 Unc Blk

$8.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532165811

Rod, Brake CRD 0650

$47.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532171826

Bracket Asm Clutch Noram

$

$

Currently unavailable

24

Husqvarna 873350600

Nut
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

25

Husqvarna 532106888

Spring, Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

26

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532145204

Rod, Parking Brake

$

$

Not available

29

Husqvarna 532071673

Cap, Parking Brake

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 532130807

Bracket, Mfg. Transaxle

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

Bolt Hex 5/16-18 UNC x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 872140516

Bolt Rdhd Sqnk 5/16-18 Unc x 3/4

$

$

Currently unavailable

34

Husqvarna 532165496

Shaft, Asm Pedal Foot CRD

$31.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

Bearing, Nylon

$6.49

$

In Stock, Qty 7

0

36

Husqvarna 819211616

Washer 21/32 x 1 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

Pin, Roll 3/16 x 1"
(Superseded to 532002882)

$6.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532165936

Pulley, Flat

$31.99

$

In Stock, only 1 left!

0

39

Husqvarna 872110622

Bolt Rdhd 3/8-16 Unc x 2-3/4 Gr. 5

$3.99

$

In Stock, only 3 left!

0

40

Husqvarna 532124965

Spacer, Split 395 x 59 Bzp

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

47

Husqvarna 532127783

Pulley, Idler, V Groove Plasitc
(Superseded to 532139245)

$34.99

$

In Stock, Qty 9

0

48

Husqvarna 532154407

Bellcrank Clutch Grnd Drv

$8.99

$

In Stock, only 1 left!

0

49

Husqvarna 532123205

Retainer, Belt Style Spring

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

Bolt Hex Hd 3/8-16 UNC x 1-1/2
(Superseded to 874930624)

$

$

Not available

51

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

Link, Clutch 7.66
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

Spring, Return, Clutch

$10.99

$

In Stock, Qty 20+

0

56

Husqvarna 874760620

Bolt, Hex 3/8-16 UNC x 1-1/4

$7.49

$

In Stock, only 3 left!

0

57

Husqvarna 532165631

V-Belt Kev PMST CRD

$84.99

$

In Stock, only 1 left!

0

61

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532123533

Cover, Pedal

$6.99

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

Washer
(Superseded to 539990247)

$

$

Not available

66

Husqvarna 532154778

Keeper, Belt Engine F-Proof

$12.99

$

In Stock, only 1 left!

0

74

Husqvarna 532137057

Spacer Axle

$7.49

$

In Stock, Qty 10

0

75

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

76

Husqvarna 812000001

Ring, E

$4.99

$

In Stock, Qty 20+

0

77

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, Qty 8

0

78

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

79

Husqvarna 532125096

Key Woodruff

$4.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532145090

Arm Shift PMST 20" Tires

$4.99

$

In Stock, only 1 left!

0

82

Husqvarna 532123782

Spring, Torsion

$

$

Not available

83

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 734117771)

$6.49

$

In Stock, only 3 left!

0

84

Husqvarna 532165621

Link Shift CRD Pmst 18" Tires

$33.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532124788

Spring, Retainer 1"
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

112

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

145

Husqvarna 874490540

Bolt Hex FGHD 5/16-18 x Gr 5

$4.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532165850

Bushing, Bellcrank Grnd Dr

$

$

Not available

151

Husqvarna 819133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 532413524)

$

$

Not available

153

Husqvarna 874760516

Bolt Hex Hd 5/16-18 Unc x 1
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

156

Husqvarna 532166002

Washer Srred 5/16 ID x 1.125

$6.49

$

Usually ships in 3-10 days

0

158

Husqvarna 532165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Husqvarna 532165494

Hub Tapered Flange Shift Lt
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Husqvarna 873680400

Nut Crownlock 1/4-20 Unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

163

Husqvarna 874780416

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5

$6.49

$

Usually ships in 3-10 days

0

164

Husqvarna 819091010

Washer 5/8 x .281 x 10 Ga.

$

$

Not available

165

Husqvarna 532165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Husqvarna 532166880

Screw 5/16-18 x 5/8

$6.49

$

Usually ships in 3-10 days

0

167

Husqvarna 532165588

Bracket Support Shift CRD

$22.99

$

Usually ships in 3-10 days

0

168

Husqvarna 532165492

Bolt Shoulder 5/16-18 x .561

$6.49

$

In Stock, only 3 left!

0

171

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2 Ty-Tt

$6.49

$

Usually ships in 3-10 days

0

172

Husqvarna 532165635

Shaft Asm Shift Front CRD PMST
(Superseded to 584324101)

$14.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532165932

Keeper Flat Idler 3.06" CRD

$6.49

$

Usually ships in 3-10 days

0

178

Husqvarna 532165933

Keeper Belt Idler 1.88" CRD

$3.99

$

Usually ships in 3-10 days

0

179

Husqvarna 532120958

Washer Sintered

$

$

Not available

180

Husqvarna 532165630

Pulley Flat Composite 3.06"

$34.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532165797

Bracket Idler Ground Drive CRD

$2.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532165634

Keeper Belt 2.5" Od V-Idler CRD
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

183

Husqvarna 532165626

Pulley V-Idler 2.50" Od CRD

$34.99

$

In Stock, only 2 left!

0

184

Husqvarna 817490644

Screw Hexwsh Thdrol 3/8-16 x 2-3/4

$

$

Not available

187

Husqvarna 817490620

Screw Thdrol 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

198

Husqvarna 532169593

Washer Nyl 7/8 ID x .105" Hyd CRD

$7.49

$

Usually ships in 3-10 days

0

202

Husqvarna 872110612

Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

203

Husqvarna 871170780

Bolt Hex 7/16-20 x 5
(Superseded to 583789701)

$4.99

$

Usually ships in 3-10 days

0
