CT 151 (960610179-06) - Husqvarna Lawn Tractor (2008-01) ENGINE Parts Diagram

Lawn Tractor

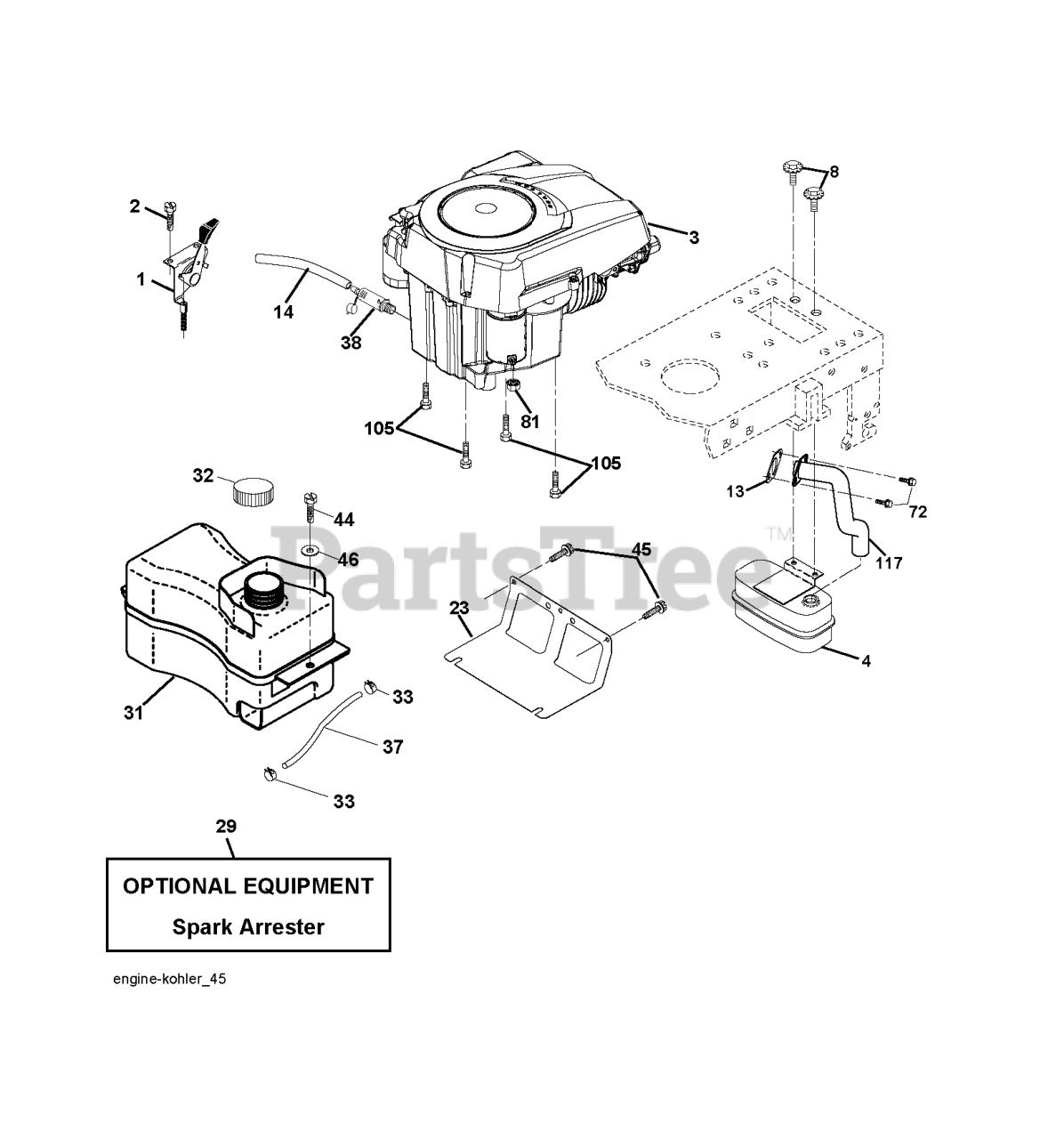

ENGINE Parts Diagram

  • Title

81

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$53.99

$

In Stock, Qty 20+

0

32

Husqvarna 532197725

FUEL CAP
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

1

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$35.99

$

In Stock, Qty 20+

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

31

Husqvarna 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$62.99

$

In Stock, Qty 6

0

72

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 13

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

In Stock, Qty 20+

0

117

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$35.99

$

In Stock, Qty 20+

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$27.99

$

In Stock, Qty 7

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

2

Husqvarna 817191611

NEEDS DESCRIPTION

$

$

Currently unavailable

46

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

38

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$23.99

$

In Stock, Qty 20+

0

3

NEEDS DESCRIPTION

Note: Engine Kohler SV470 (Order Parts from Engine Manufacturer)

$

$

Not available
