CT 151 (960610180-08) - Husqvarna Lawn Tractor (2009-02) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

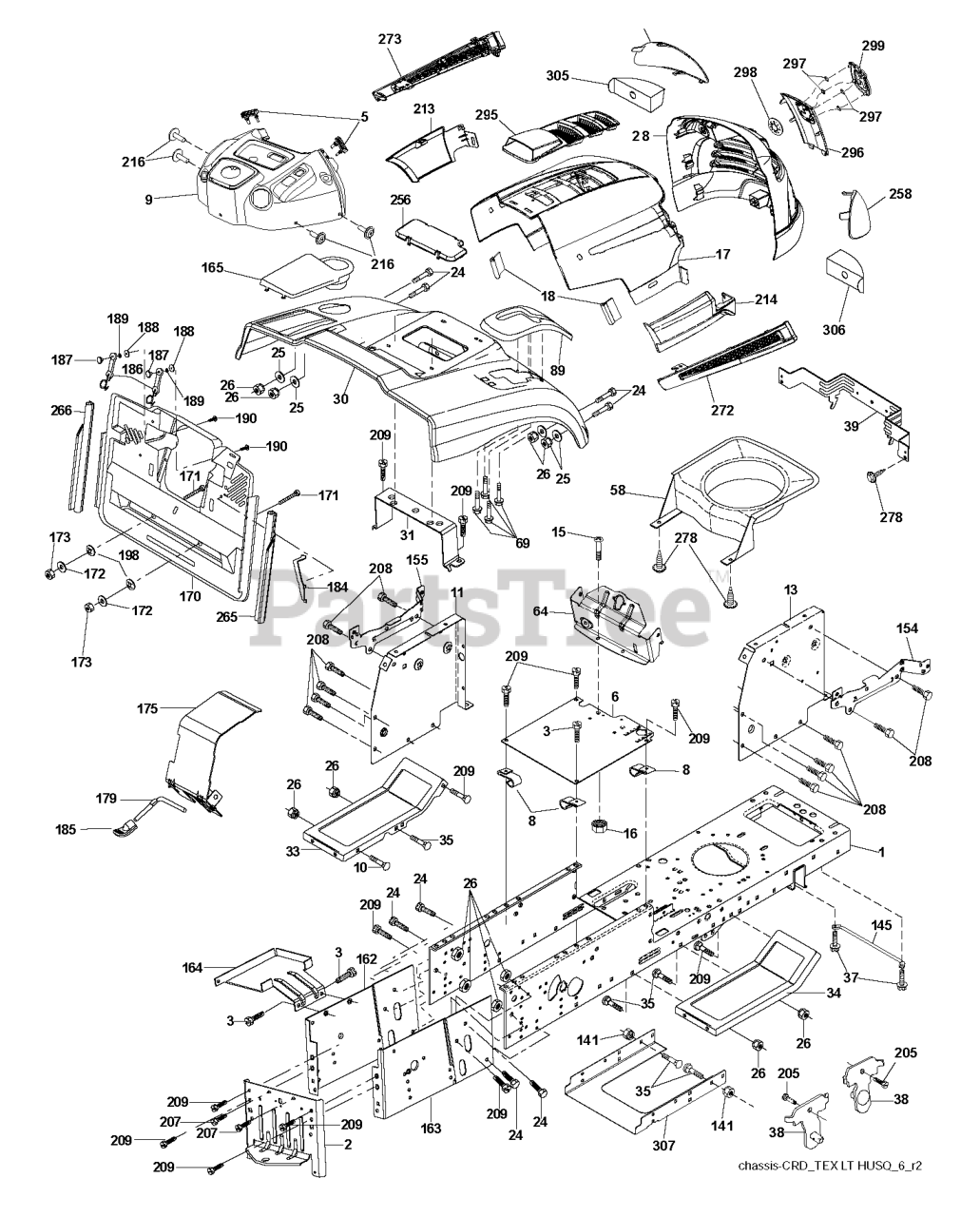

CHASSIS & ENCLOSURES Parts Diagram

  • Title

266

Husqvarna 532185703

SEALING
(Superseded to 583146601)

$21.99

$

Usually ships in 3-10 days

0

188

Husqvarna 819061216

WASHER

$4.99

$

In Stock, Qty 18

0

38

Husqvarna 532181748

BRACKET ASM PIVOT MOWER REAR
(Superseded to 583117401)

$9.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532188203

DOOR TRAP
(Superseded to 583707801)

$24.99

$

Usually ships in 3-10 days

0

198

Husqvarna 532168937

NUT

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

15

Husqvarna 874180512

Screw, Machine, Truss Head 5/16-18 UNC x 3/4

$4.99

$

Usually ships in 3-10 days

0

164

Husqvarna 532165605

SUPPORT

$

$

Not available

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$6.49

$

In Stock, only 2 left!

0

24

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

185

Husqvarna 532181101

$

$

Not available

256

Husqvarna 532181361

COVER FENDER CRD
(Superseded to 532197364)

$133.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532184419

PLATE
(Superseded to 583133601)

$12.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532408127

$

$

Currently unavailable

259

Husqvarna 532411079

LENS.HUSQVARNA LT.LH
(Superseded to 532406664)

$24.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

216

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

205

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

296

Husqvarna 532411119

TRIM
(Superseded to 532407881)

$20.99

$

Usually ships in 3-10 days

0

265

Husqvarna 532185704

SEALING
(Superseded to 583146701)

$21.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532165156

BRACKET SUPPORT FENDER

$

$

Not available

3

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

179

Husqvarna 532188202

ROD PIVOT FBI
(Superseded to 583170601)

$27.99

$

Usually ships in 3-10 days

0

258

Husqvarna 532411078

LENS.HUSQVARNA LT.RH
(Superseded to 532406663)

$24.99

$

Usually ships in 3-10 days

0

155

Husqvarna 532408123

$

$

Currently unavailable

163

Husqvarna 532180383

BRACKET EXTEN CHASSIS RH CRD
(Superseded to 583100901)

$42.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532181057

FOOTREST PNT LH
(Superseded to 532182507)

$27.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.49

$

In Stock, only 2 left!

0

186

532160793

LATCH ASSY

$

$

Not available

213

Husqvarna 532411077

SKIRT SIDE LH
(Superseded to 532441345)

$9.99

$

Usually ships in 3-10 days

0

173

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

273

Husqvarna 532411074

VENT SIDE HOOD RH
(Superseded to 532406671)

$8.99

$

Usually ships in 3-10 days

0

297

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532411115

PLUG DASH
(Superseded to 532439976)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

278

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

34

Husqvarna 532181058

FOOTREST PNT RH
(Superseded to 532442579)

$27.99

$

Usually ships in 3-10 days

0

187

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

171

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

141

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 532180384

DRAWBAR
(Superseded to 583101001)

$

$

Not available

307

Husqvarna 532420919

NEEDS DESCRIPTION

$

$

Not available

272

Husqvarna 532411075

VENT SIDE HOOD LH
(Superseded to 532406670)

$8.99

$

Usually ships in 3-10 days

0

299

Husqvarna 532405012

RP LOGO
(Superseded to 532430771)

$8.99

$

In Stock, only 1 left!

0

295

Husqvarna 532411116

VENT TOP HOOD
(Superseded to 532441375)

$30.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532197376

CONSOLE.CRD.AUTO.GRY

$8.99

$

Usually ships in 3-10 days

0

154

Husqvarna 532408122

$

$

Currently unavailable

172

Husqvarna 819132016

WASHER
(Superseded to 819132012)

$3.49

$

In Stock, Qty 20+

0

58

Husqvarna 532407537

DUCT.AIR.

$40.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532199488

$

$

Not available

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532406667

RP GRILLE/LENS ASM.
(Superseded to 532439421)

$157.99

$

Usually ships in 3-10 days

0

298

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 532407807

BRACKET PIVOT

$26.99

$

Usually ships in 3-10 days

0

305

Husqvarna 532406665

INSERT REFLECTIVE

$9.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532172106

PANEL ASM, DASH RH

$18.99

$

Usually ships in 3-10 days

0

184

Husqvarna 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$4.99

$

Usually ships in 3-10 days

0

306

Husqvarna 532416500

INSERT.REFLECTIVE.RH.

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532174620

CHASSIS

$136.99

$

Usually ships in 3-10 days

0

190

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

162

Husqvarna 532180382

BRACKET
(Superseded to 583100801)

$47.99

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

89

Husqvarna 532197407

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 532409467

NEEDS DESCRIPTION

$

$

Currently unavailable

17

Husqvarna 532411073

HOOD
(Superseded to 532441267)

$84.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532174996

PANEL.DASH.LH.LTX

$11.99

$

Usually ships in 3-10 days

0

189

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 12

0

209

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

In Stock, only 2 left!

0

165

Husqvarna 532181100

RP.COVER.BATTERY.CRD.GREY
(Superseded to 532441516)

$15.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532411076

SKIRT SIDE RH
(Superseded to 532406668)

$9.99

$

Usually ships in 3-10 days

0
