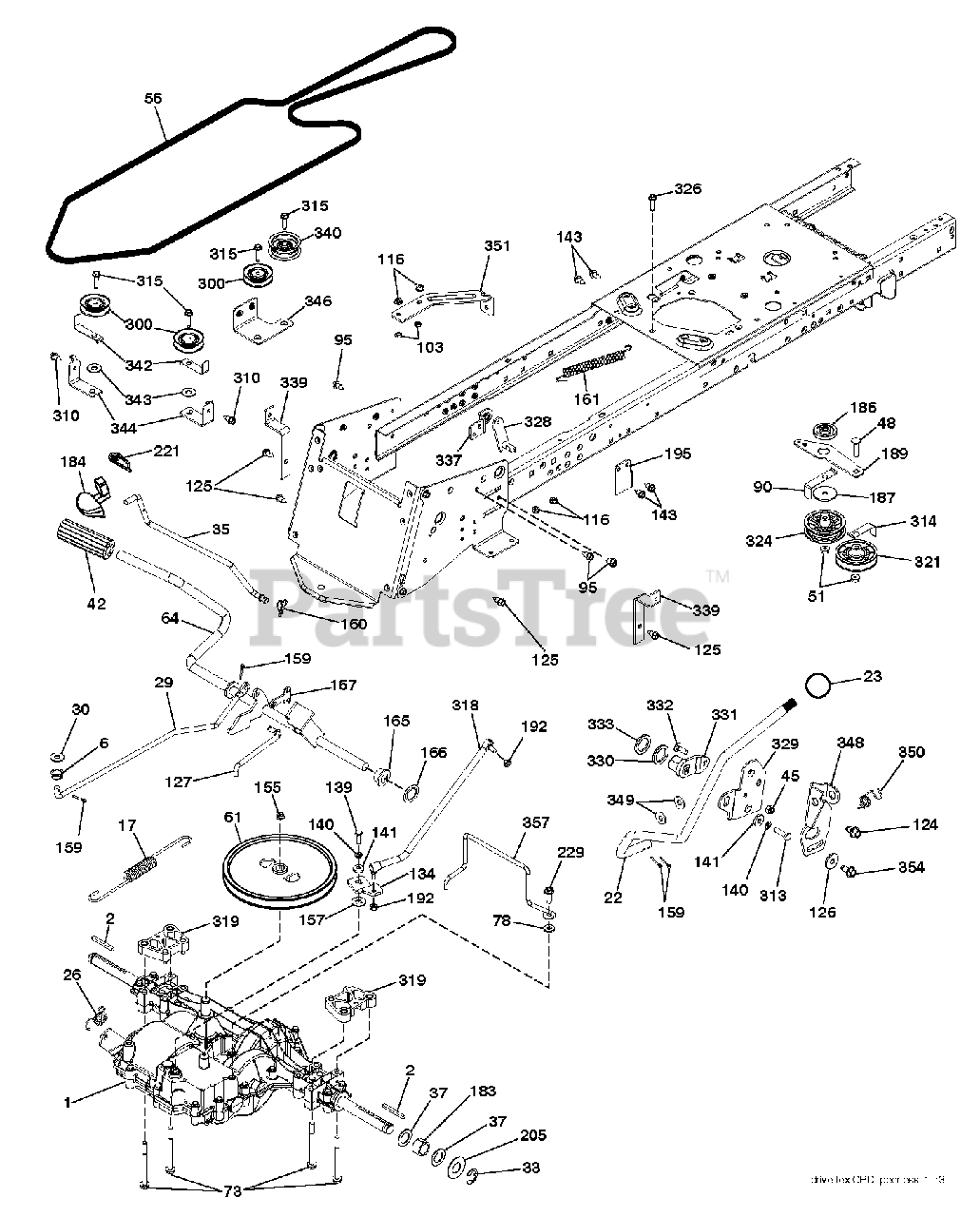

CT 153 (960510015-00) - Husqvarna Lawn Tractor (2011-03) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

000000000

Note: TRANSAXLE PEERLESS 206-578

$

$

Not available

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

6

Husqvarna 532124208

MANDREL ASS'Y

$157.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532440867

SPRING SPRING BRAKE GEAR CRD
(Superseded to 583552401)

$

$

Not available

22

Husqvarna 532435670

ROD ROD SHIFT CRD TEX
(Superseded to 583506601)

$23.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 1 left!

0

29

Husqvarna 532437016

ROD.BRAKE.GEAR.CRD.TEX

$

$

Not available

30

Husqvarna 819131616

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 17

0

35

Husqvarna 532401031

ROD.CNTRL.PARK.PREDATOR.LT.TEX

$18.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

45

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 532436384

BELT BELT V CRD GEAR
(Superseded to 583508901)

$109.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532165999

PULLEY
(Superseded to 584450701)

$60.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532196200

SHAFT.ASM.PEDAL.BRAKE.

$34.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

78

Husqvarna 819111212

WASHER

$8.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532439848

BRACKET KEEPER BELT CLUTCHING
(Superseded to 583546001)

$6.99

$

Usually ships in 3-10 days

0

95

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

103

Husqvarna 873350500

JAM NUT TI
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

124

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$6.49

$

In Stock, only 3 left!

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

126

Husqvarna 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

127

Husqvarna 532194323

RP LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

134

Husqvarna 532145090

ARM SHIFT

$4.99

$

In Stock, only 1 left!

0

139

Husqvarna 874550412

BOLT 1/4-28X3/4
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

140

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

141

Husqvarna 819091210

WASHER LT

$6.99

$

Usually ships in 3-10 days

0

143

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

155

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 16

0

157

Husqvarna 532105701

WASH-SHFT PLT LT

$6.49

$

In Stock, only 1 left!

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

161

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

165

Husqvarna 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.49

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, Qty 5

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

183

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

184

Husqvarna 532441407

HANDLE.PARKING.BRK.PRED.LT.RED
(Superseded to 532411484)

$67.99

$

Usually ships in 3-10 days

0

186

Husqvarna 532194321

SPACER.RETAINER

$7.49

$

In Stock, only 1 left!

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

189

Husqvarna 532433611

BELLCRANK BELLCRANK GROUNDDRI
(Superseded to 583492701)

$7.49

$

Usually ships in 3-10 days

0

192

Husqvarna 532150360

NUT LOCK CENTER 1/4 -28 FNTHD

$

$

Not available

195

Husqvarna 532435865

$

$

Not available

205

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

229

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

300

Husqvarna 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

310

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

313

Husqvarna 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

314

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

315

Husqvarna 817580520

BOLT.5/16-18X1.25

$5.99

$

In Stock, only 3 left!

0

318

Husqvarna 532437022

GEAR LINK SHIFT GEAR
(Superseded to 583515501)

$

$

Not available

319

Husqvarna 532436794

SPACER SPACER TRANSAXLE TEX C
(Superseded to 583512001)

$14.99

$

Usually ships in 3-10 days

0

321

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$34.99

$

In Stock, Qty 7

0

324

Husqvarna 532438285

$

$

Not available

326

Husqvarna 872110618

BOLT CARRIAGE

$6.49

$

Usually ships in 3-10 days

0

329

Husqvarna 532437458

BRACKET.SHIFT.MOUNT

$7.49

$

Usually ships in 3-10 days

0

330

Husqvarna 532169593

WASHER.NYL.7/8IDX.105"HYD CR

$7.49

$

Usually ships in 3-10 days

0

331

Husqvarna 532183900

RB HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

332

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

333

Husqvarna 532170868

WASHER.WAVE.SPRING

$8.99

$

In Stock, only 4 left!

0

337

Husqvarna 532435937

BRACKET BRACKET SUPT SHIFT CR
(Superseded to 583507801)

$7.49

$

Usually ships in 3-10 days

0

339

Husqvarna 532436867

STRAP STRAP TORQUE K46 CRD TE
(Superseded to 583512601)

$3.99

$

Usually ships in 3-10 days

0

340

Husqvarna 532436812

IDLER.FLAT.2.25.INCH
(Superseded to 583512101)

$31.99

$

Usually ships in 3-10 days

0

342

Husqvarna 532182682

BELT GUIDE
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

343

Husqvarna 819111012

WASHER T

$6.49

$

Usually ships in 3-10 days

0

344

Husqvarna 532435645

BRACKET BRACKET IDLER CRD TEX
(Superseded to 583506401)

$4.99

$

Usually ships in 3-10 days

0

346

Husqvarna 532430208

$

$

Currently unavailable

348

Husqvarna 532438250

BRACKET.PIVOT.LEVER

$7.49

$

Usually ships in 3-10 days

0

350

Husqvarna 532165711

SHIFT SPRING

$7.49

$

In Stock, Qty 8

0

351

Husqvarna 532436998

BRACKET BRACKET DECK SWAY
(Superseded to 583515101)

$9.99

$

Usually ships in 3-10 days

0

354

Husqvarna 817490510

CAPSCREW.HXHD.FLG.5/16-18X.625

$4.99

$

Usually ships in 3-10 days

0

328

Husqvarna 532437958

SHAFT SHAFT SHIFT FRONT
(Superseded to 583524801)

$14.99

$

Usually ships in 3-10 days

0

349

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

357

Husqvarna 532441338

KEEPER KEEPER
(Superseded to 583555901)

$21.99

$

Usually ships in 3-10 days
