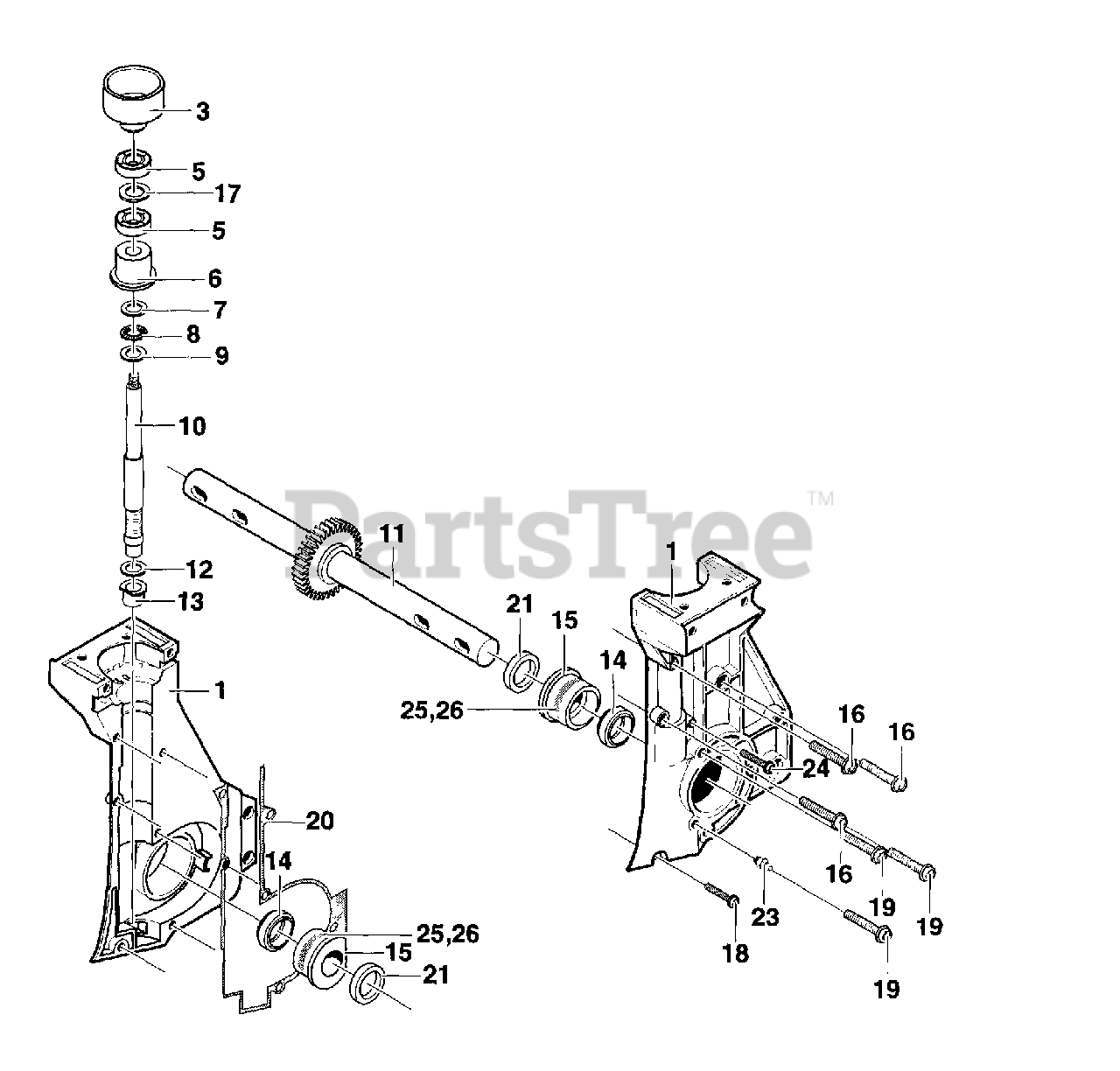

CT 16 - Husqvarna Cultivator (1997-11) Transmission Breakdown Parts Diagram

Cultivator

Transmission Breakdown Parts Diagram

  • Title

1

Husqvarna 601001864

GEARCASE HALF - RIGHT

$

$

Not available

2

Husqvarna 601001865

GEARCASE HALF - LEFT

$

$

Not available

3

Husqvarna 601000615

DRUM

$

$

Not available

4

Husqvarna 601001298

SEALANT, GASKET ELIMINATOR

$

$

Not available

5

Husqvarna 601000297

SEAL - OIL

$

$

Not available

6

Husqvarna 601000437

BRNG, FL .501IDX1.002ODX .63

$

$

Not available

7

Husqvarna 601000601

WASHER, THRUST

$

$

Not available

8

Husqvarna 601000600

NEEDLE BEARING

$

$

Not available

9

Husqvarna 601000424

WASHER, FLAT .50X .94X.120

$

$

Not available

10

Husqvarna 601000296

SHAFT, WORM

$

$

Not available

11

Husqvarna 601000603

SHAFT/GEAR - LONG

$

$

Not available

12

Husqvarna 601000671

WASHER, FLAT .506X .75X.024

$

$

Not available

13

Husqvarna 601000567

BRNG, FL .502IDX .752ODX .75

$

$

Not available

14

Husqvarna 601001866

SEAL, OIL, .75 X 1.19 X .25

$

$

Not available

15

Husqvarna 601000298

BRNG, FL .751IDX1.50 ODX.765

$

$

Not available

16

Husqvarna 601000324

SCREW, 1/4-20X1.25 HHWATAP

$

$

Not available

17

Husqvarna 601000644

WASHER, FLAT .515X .94X.104

$

$

Not available

18

Husqvarna 601000421

SCREW, 10-24X.62 HHWATAP

$

$

Not available

19

Husqvarna 601000325

SCREW, 1/4-20X1.75 HHWATAP

$

$

Not available

20

Husqvarna 601002010

GASKET,GEARCASE/TILLER/ 02

$

$

Not available

21

Husqvarna 601000598

WASHER, FLAT .76 X1.25X.104PL

$

$

Not available

23

Husqvarna 601000434

FITTING, GREASE - .69 0.A.L

$

$

Not available

24

Husqvarna 601000514

SCREW, 10-24X.38 SLHWATAP

$

$

Not available

25

UNKNOWN

Note: NOT A SERVICEABLE ITEM

$

$

Not available

26

UNKNOWN

Note: NOT A SERVICEABLE ITEM

$

$

Not available
