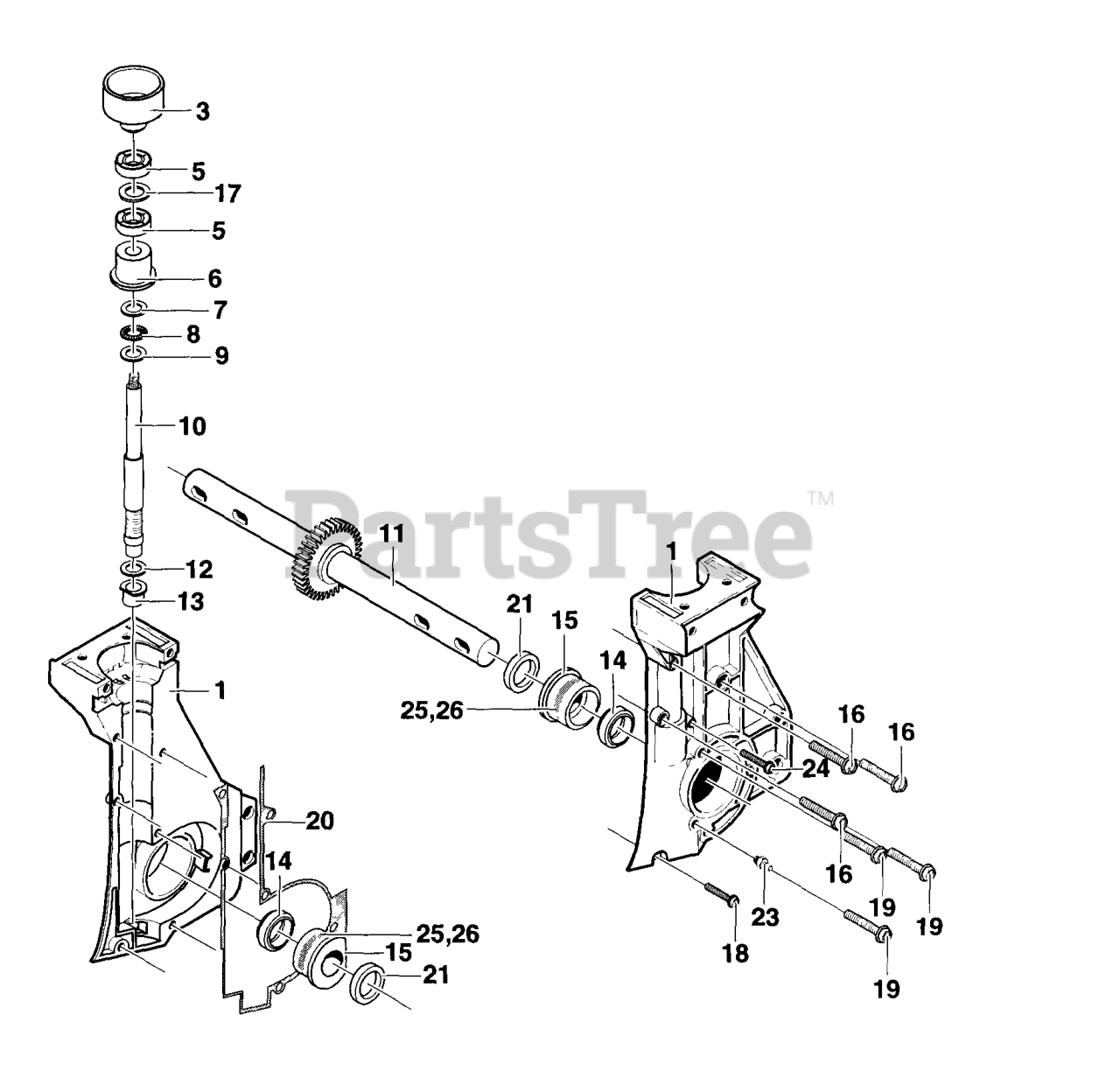

CT 16 - Husqvarna Cultivator (1997-11) Transmission Breakdown Parts Diagram

Cultivator

Transmission Breakdown Parts Diagram

  • Title

1

Husqvarna 601001864

GEARCASE HALF - RIGHT

$

$

Not available

2

Husqvarna 601001865

GEARCASE HALF - LEFT

$

$

Not available

3

Husqvarna 601000615

DRUM

$

$

Not available

4

Husqvarna 601001298

SEALANT/GASKET ELIMINATOR NLA

$

$

Not available

5

Husqvarna 601000297

SEAL - OIL

$

$

Not available

6

Husqvarna 601000437

BEARING

$

$

Not available

7

Husqvarna 601000601

WASHER, THRUST - TORR TRA

$

$

Not available

8

Husqvarna 601000600

NEEDLE BEARING

$

$

Not available

9

Husqvarna 601000424

WASHER, THRUST - INA TWD

$

$

Not available

10

Husqvarna 601000296

SHAFT, WORM

$

$

Not available

11

Husqvarna 601000603

SHAFT/GEAR - LONG

$

$

Not available

12

Husqvarna 601000671

WASHER, FLAT .506X .75X.

$

$

Not available

13

Husqvarna 601000567

BRNG, FL .502IDX .752OD

$

$

Not available

14

Husqvarna 601001866

SEAL, OIL, .75 X 1.19 X .25

$

$

Not available

15

Husqvarna 601000298

BEARING - TINE SHAFT

$

$

Not available

16

Husqvarna 601000324

SCREW

$

$

Not available

17

Husqvarna 601000644

WASHER, FLAT .515X .94X.

$

$

Not available

18

Husqvarna 601000421

SCREW

$

$

Not available

19

Husqvarna 601000325

SCREW

$

$

Not available

20

Husqvarna 601002010

GASKET, GEAR CASE

$

$

Not available

21

Husqvarna 601000598

WASHER, FLAT .76 X1.25X.

$

$

Not available

23

Husqvarna 601000434

GREASE FITTING NLA

$

$

Not available

24

Husqvarna 601000514

SCREW, 10-24X.38 SLHWATAP

$

$

Not available

25

UNKNOWN

Note: NOT A SERVICEABLE ITEM

$

$

Not available

26

UNKNOWN

Note: NOT A SERVICEABLE ITEM

$

$

Not available
