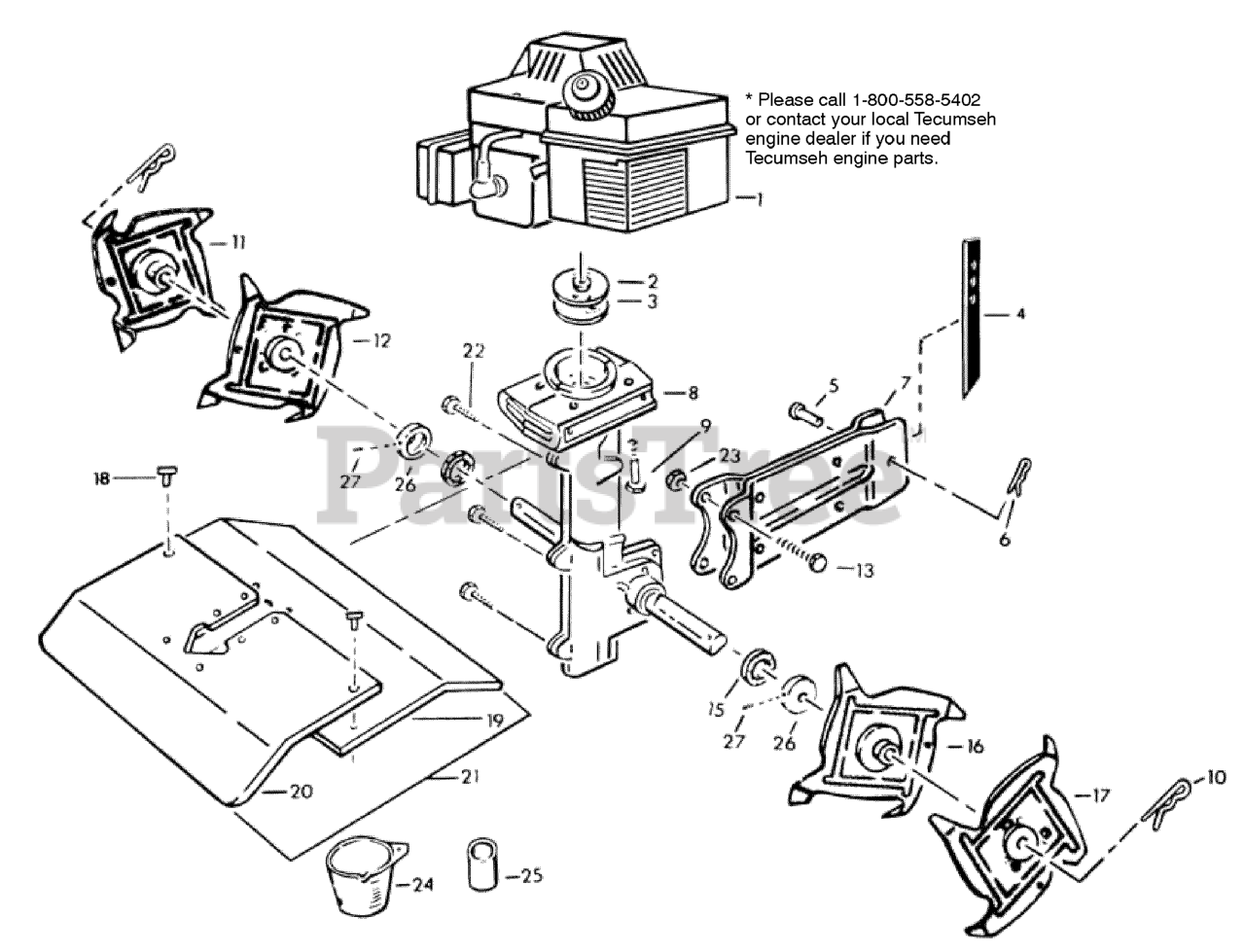

CT 20 (966957301) - Husqvarna Cultivator (2008-04) Engine/Transmission/Tines/Shield Parts Diagram

Cultivator

Engine/Transmission/Tines/Shield Parts Diagram

  • Title

1

Engine

Note: Please call 1-800-558-5402 or contact your local Tecumseh engine dealer if you need Tecumseh engine parts.

$

$

Not available

2

Husqvarna 505290061

CLUTCH

$

$

Not available

3

Husqvarna 505290062

SPRING CLUTCH

$

$

Not available

4

Husqvarna 505290039

DRAG STAKE

$

$

Not available

5

Husqvarna 505290058

Pin, Clevis 5/16 x 7/8

$

$

Currently unavailable

6

Husqvarna 505290040

HAIRPIN

$

$

Not available

7

Husqvarna 505290035

DRAG STAKE BRKT ASSY

$

$

Not available

8

Husqvarna 505290041

DRIVE HOUSING ASSY

$

$

Not available

9

Husqvarna 505290042

SCREW 1/4 X 2

$

$

Not available

10

Husqvarna 505290043

HAIRPIN

$

$

Not available

11

Husqvarna 505290044

TINE & HUB RH OUTBRD

Note: (D)

$

$

Not available

12

Husqvarna 505290045

TINE & HUB RH INBRD

Note: (C)

$

$

Not available

13

Husqvarna 505290036

SCREW 1/4-20 X 1

$

$

Not available

15

Husqvarna 505290032

FELT SEAL

$

$

Not available

16

Husqvarna 505290046

TINE & HUB-LH INBRD

Note: (B)

$

$

Not available

17

Husqvarna 505290047

TINE & HUB LH OUTBRD

Note: (A)

$

$

Not available

22

Husqvarna 505290037

SCREW 1/4-20 X 7/8

$

$

Not available

23

Husqvarna 505290014

NUT 1/4-20

$

$

Not available

24

Husqvarna 505290063

FUEL MIX CUP

$

$

Not available

25

Husqvarna 505290048

TINE SPACERS

$

$

Not available

26

Husqvarna 505290033

METAL DIRT CAP-SILVER

$

$

Not available

27

Husqvarna 505290034

SET SCREW 10-32 X .25

$

$

Not available
