CT 20 (966957301) - Husqvarna Cultivator (2008-04) Transmission Assembly Parts Diagram

Cultivator

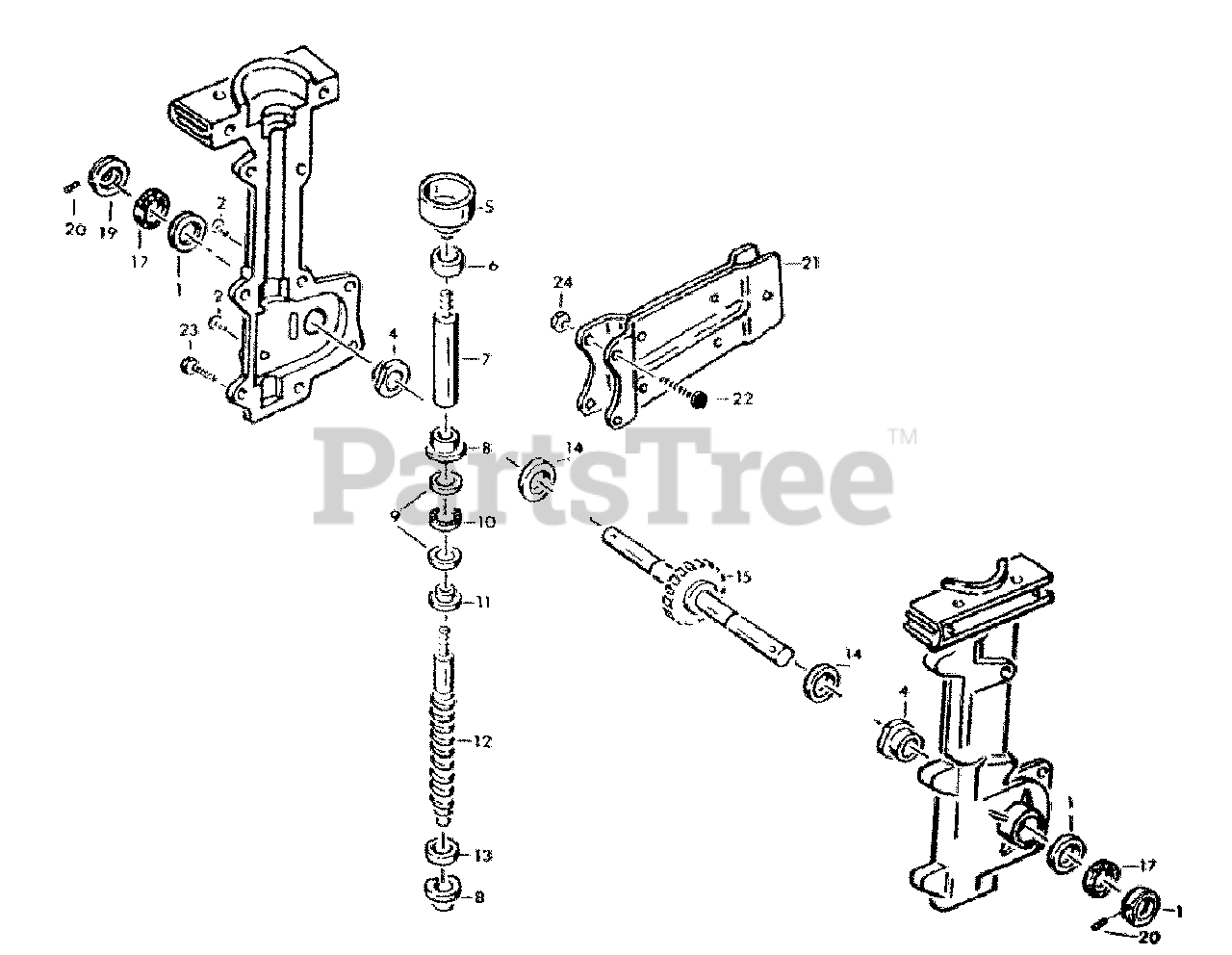

Transmission Assembly Parts Diagram

  • Title

1

Husqvarna 505290018

Seal

$

$

Not available

2

Husqvarna 505290019

Screw, Phillips Pan Hd 1/4-20 x 1/2

$

$

Not available

4

Husqvarna 505290020

Bushing, Bronze

$

$

Not available

5

Husqvarna 505290021

Drum & Hub, Clutch

$

$

Not available

6

Husqvarna 505290022

Bearing, Roller

$

$

Not available

7

Husqvarna 505290023

Shaft, Connecting

$

$

Not available

8

Husqvarna 505290024

Bushing, Bronze

$

$

Not available

9

Husqvarna 505290025

Washer, Thrust

$

$

Not available

10

Husqvarna 505290026

Bearing, Needle, Thrust

$

$

Not available

11

Husqvarna 505290027

Washer, Adaptor

$

$

Not available

12

Husqvarna 505290028

Shaft, Worm

$

$

Not available

13

Husqvarna 505290029

Washer, Thrust

$

$

Not available

14

Husqvarna 505290030

Washer, Thrust

$

$

Not available

15

Husqvarna 505290031

Shaft, Tine, w/Worm Wheel

$

$

Not available

17

Husqvarna 505290032

Felt Seal

$

$

Not available

19

Husqvarna 505290033

Dirt Cap, Silver, Metal

$

$

Not available

20

Husqvarna 505290034

Set Screw, # 10-32 x 1/4

$

$

Not available

21

Husqvarna 505290035

Bracket Assy, Drag Stake

$

$

Not available

22

Husqvarna 505290036

Screw, 1/4-20 x 1

$

$

Not available

23

Husqvarna 505290037

Screw, 1/4-20 x 7/8

$

$

Not available

24

Husqvarna 505290038

Nut, 1/4-20

$

$

Not available

24

Husqvarna 505290041

Transmission Assembly, Complete

$

$

Not available
