CT 20 (966957301) - Husqvarna Cultivator (2008-04) Transmission Assembly Parts Diagram

Cultivator

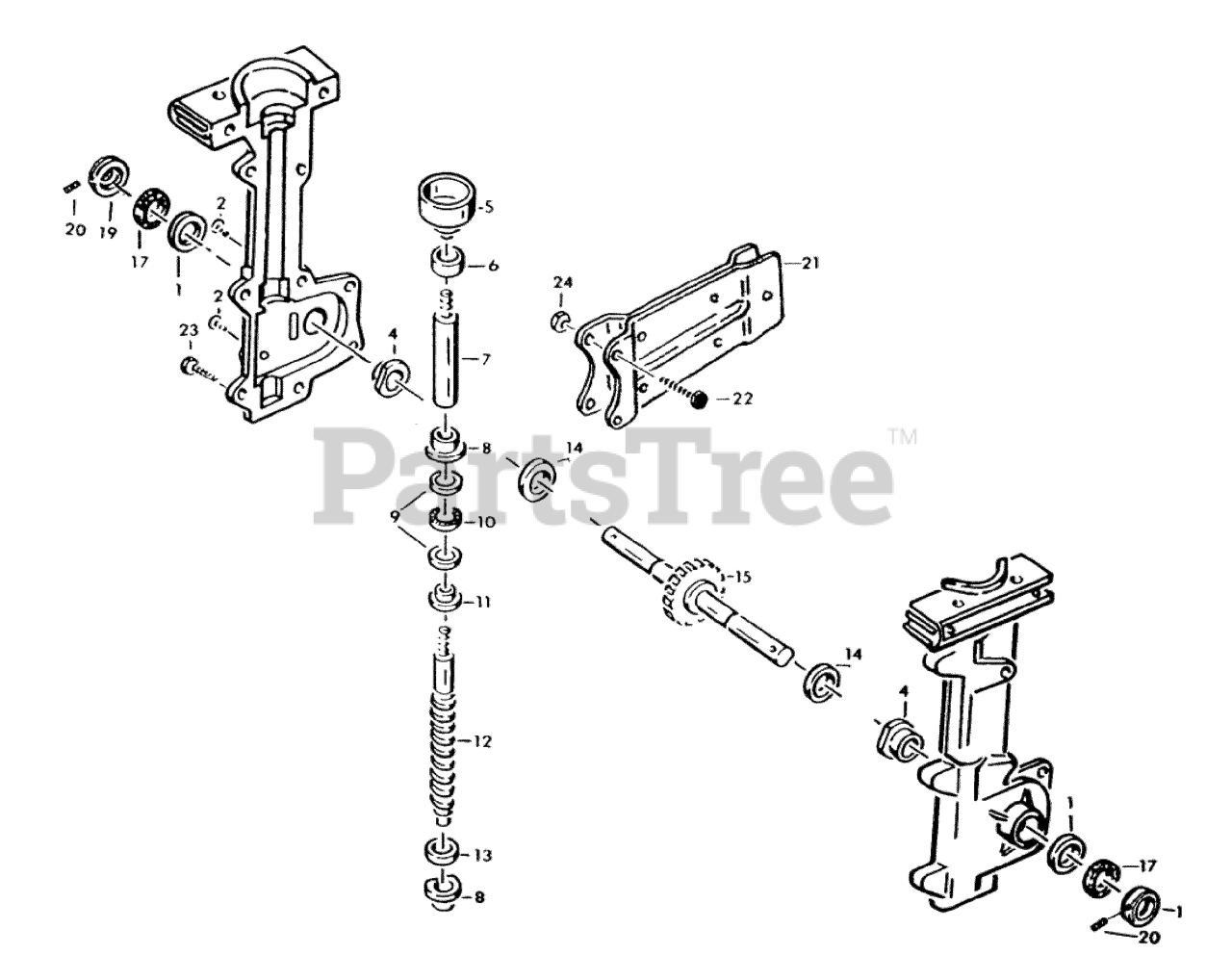

Transmission Assembly Parts Diagram

  • Title

1

Husqvarna 505290018

SEAL

$

$

Not available

2

Husqvarna 505290019

SCREW 1/4-20 X 1/2

$

$

Not available

4

Husqvarna 505290020

BRONZE BUSHING

$

$

Not available

5

Husqvarna 505290021

CLUTCH DRUM AND HUB

$

$

Not available

6

Husqvarna 505290022

ROLLER BEARING

$

$

Not available

7

Husqvarna 505290023

CONNECTING SHAFT

$

$

Not available

8

Husqvarna 505290024

BRONZE BUSHING

$

$

Not available

9

Husqvarna 505290025

THRUST WASHER

$

$

Not available

10

Husqvarna 505290026

NEEDLE BEARING

$

$

Not available

11

Husqvarna 505290027

ADAPTER WASHER

$

$

Not available

12

Husqvarna 505290028

WORM SHAFT

$

$

Not available

13

Husqvarna 505290029

THRUST WASHER

$

$

Not available

14

Husqvarna 505290030

THRUST WASHER

$

$

Not available

15

Husqvarna 505290031

TINE SHAFT W/WORM WHEEL

$

$

Not available

17

Husqvarna 505290032

FELT SEAL

$

$

Not available

19

Husqvarna 505290033

METAL DIRT CAP-SILVER

$

$

Not available

20

Husqvarna 505290034

SET SCREW 10-32 X .25

$

$

Not available

21

Husqvarna 505290035

DRAG STAKE BRKT ASSY

$

$

Not available

22

Husqvarna 505290036

SCREW 1/4-20 X 1

$

$

Not available

23

Husqvarna 505290037

SCREW 1/4-20 X 7/8

$

$

Not available

24

Husqvarna 505290038

ENGINE

$

$

Not available

24

Husqvarna 505290041

DRIVE HOUSING ASSY

$

$

Not available
