CT 2105 F (960810001-06) - Jonsered Front-Tine Cultivator (2010-01) TRANSMISSION Parts Diagram

Front-Tine Cultivator

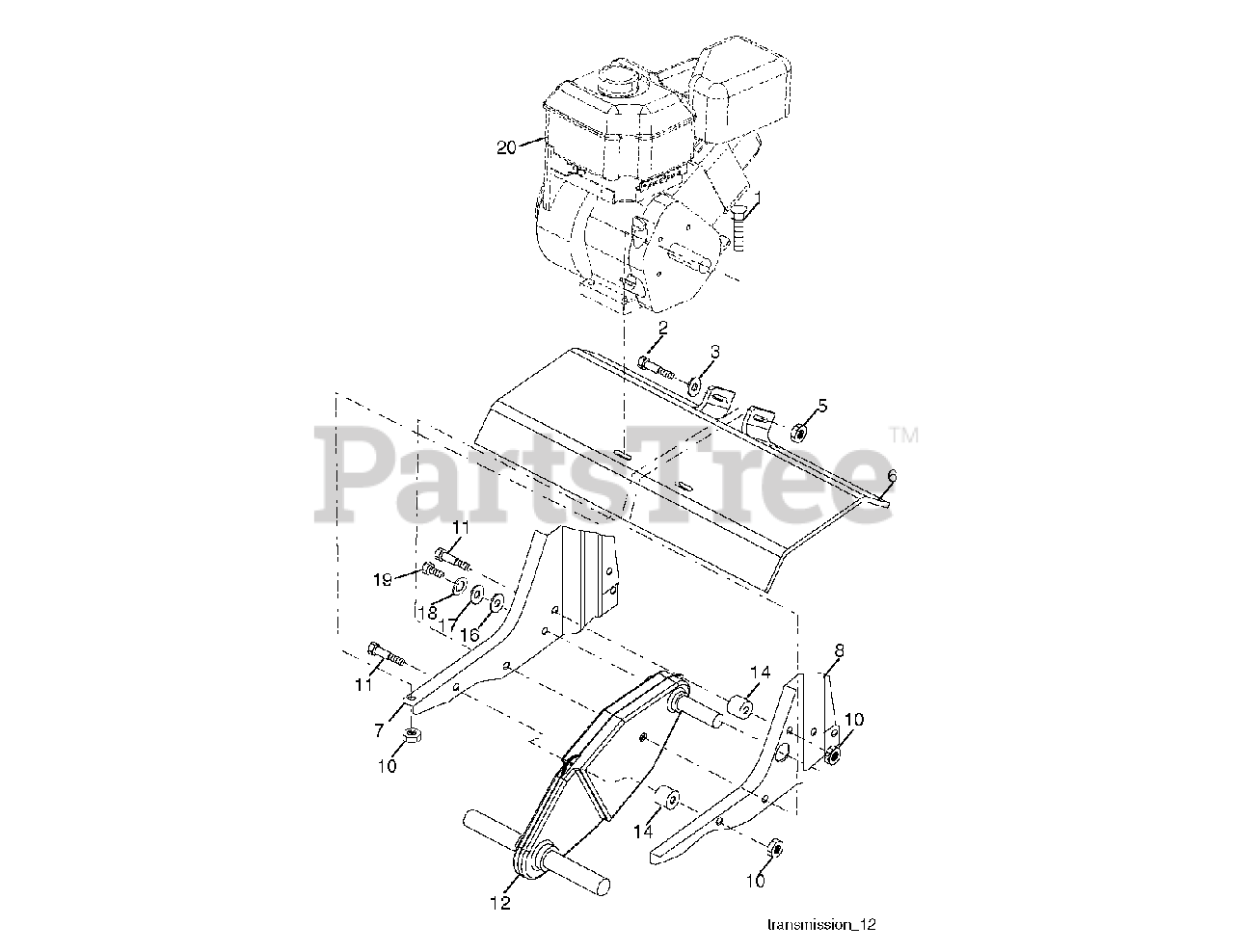

TRANSMISSION Parts Diagram

  • Title

1

Jonsered 874760524

BOLT
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

2

Jonsered 874780652

No Description Available
(Superseded to 583614901)

$2.99

$

Usually ships in 3-10 days

0

3

Jonsered 819131311

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

5

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

6

Jonsered 532138343

No Description Available
(Superseded to 532405110)

$

$

Not available

7

Jonsered 532188195

RP BRACKET, ENGINE, R.H.
(Superseded to 532446006)

$

$

Not available

8

Jonsered 532165834

BRKT.ENGINE.LH.BLACK
(Superseded to 584325101)

$

$

Not available

10

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

11

Jonsered 532187912

BOLT, HEX HEAD 5/16-18 X 2.5

$4.99

$

Usually ships in 3-10 days

0

12

Jonsered 532151222

TRANSMISSION.ASM.W/1".D-SHAFT

$

$

Not available

14

Jonsered 532009173

SPACER

$

$

Not available

16

Jonsered 819091412

No Description Available
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 819092016

WASHER

$4.99

$

In Stock, only 1 left!

0

18

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

19

Jonsered 874610412

No Description Available
(Superseded to 582738901)

$4.99

$

In Stock, only 1 left!

0

20

Jonsered TBD

No Description Available

Note: Engine Briggs Model 126302-421-B1

$

$

Not available
