CT 2105 F (960810001-06) - Jonsered Front-Tine Cultivator (2010-01) WHEEL DEPTH STAKE ASSEMBLY Parts Diagram

Front-Tine Cultivator

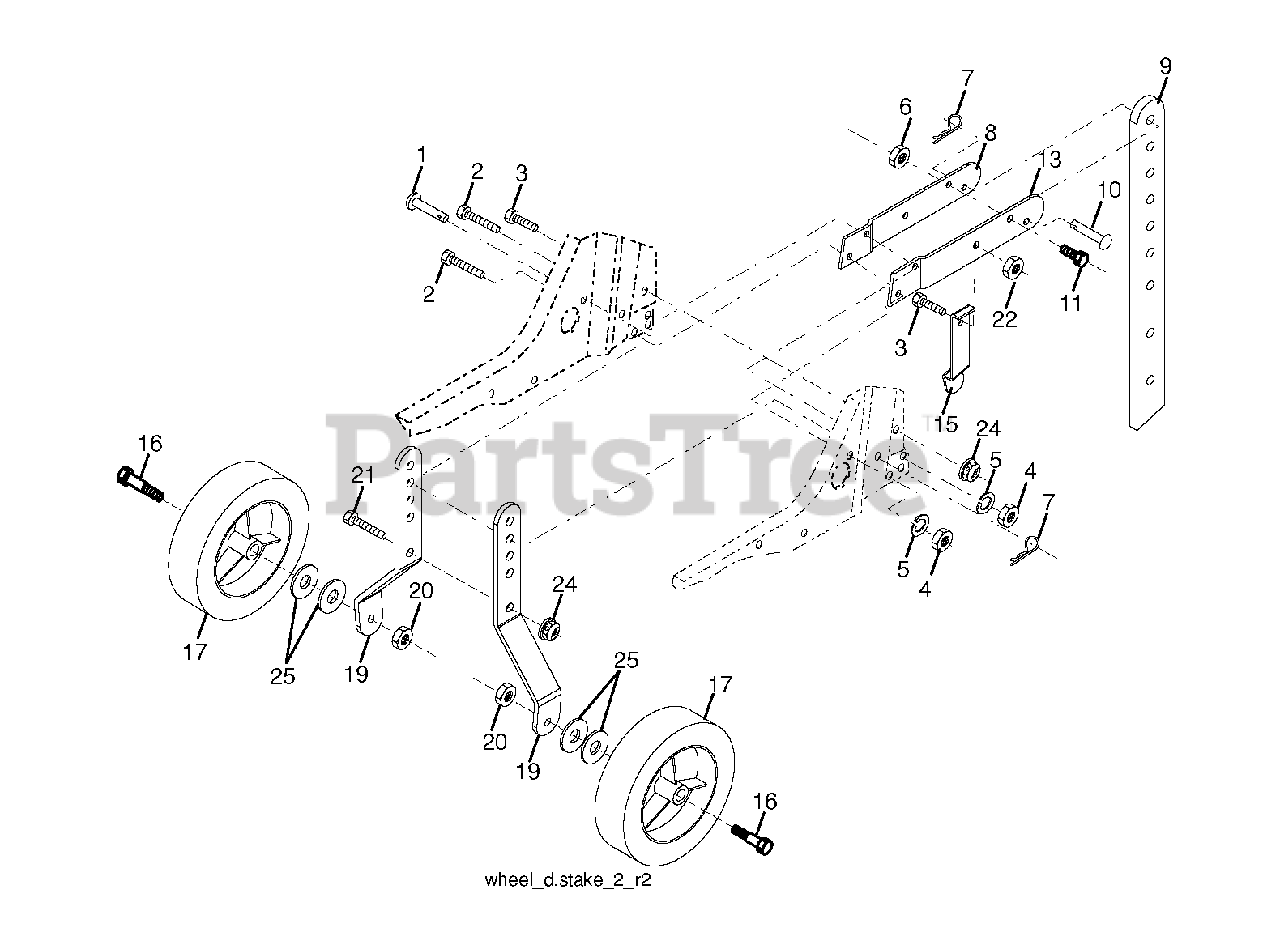

WHEEL DEPTH STAKE ASSEMBLY Parts Diagram

  • Title

1

Jonsered 532009194

PIN
(Superseded to 532443676)

$7.49

$

In Stock, Qty 19

0

2

Jonsered 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 874760512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

4

Jonsered 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

5

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Jonsered 532124961

SPRING TI
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

8

Jonsered 532001952

SUPPORT.STAKE.RH.BLACK

$

$

Not available

9

Jonsered 532122233

RP STAKE.DEPTH.13.25.W/9HOLES
(Superseded to 532446066)

$53.99

$

In Stock, only 1 left!

0

10

Jonsered 532000326

No Description Available
(Superseded to 532004929)

$7.49

$

In Stock, only 3 left!

0

11

Jonsered 874780628

BOLT
(Superseded to 582740701)

$6.49

$

In Stock, Qty 5

0

13

Jonsered 532001951

No Description Available
(Superseded to 532149209)

$

$

Not available

15

Jonsered 532005388

No Description Available
(Superseded to 532124724)

$

$

Not available

16

Jonsered 532121117

BOLT.SHOULDER

$8.99

$

In Stock, Qty 10

0

17

Jonsered 532427025

WHEEL.8X1.75.STORM.GREY

$21.99

$

Usually ships in 3-10 days

0

19

Jonsered 532124707

No Description Available
(Superseded to 532009190)

$

$

Not available

20

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

21

Jonsered 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

22

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

24

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

25

Jonsered 819171416

WASHER

$4.99

$

In Stock, Qty 13

0
