CT 2105 R (960910001-08) - Husqvarna Cultivator (2011-02) MAINFRAME RIGHT SIDE Parts Diagram

Cultivator

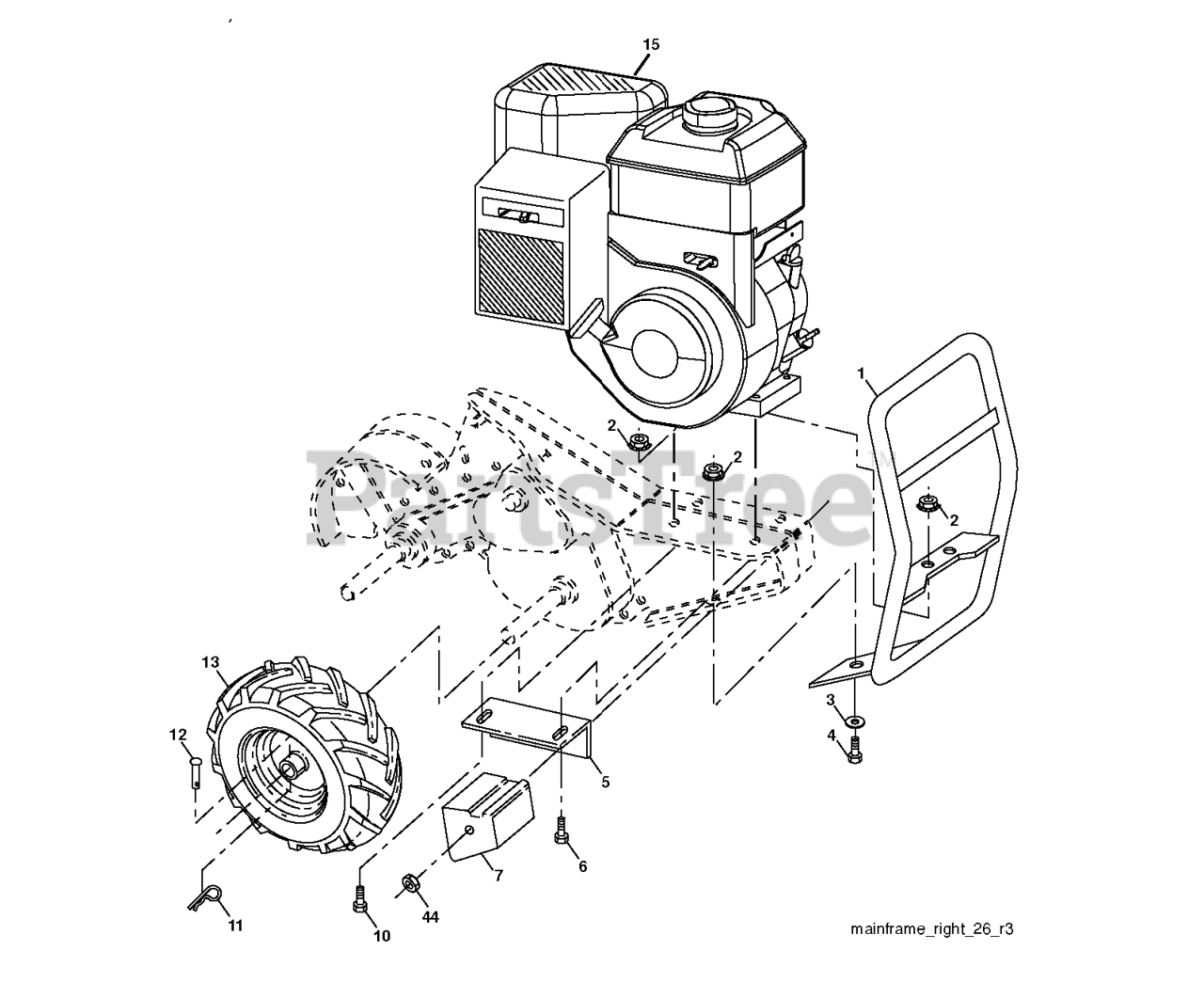

MAINFRAME RIGHT SIDE Parts Diagram

  • Title

1

Husqvarna 532185190

RP.BUMPER.ASM.TILLER.
(Superseded to 583879301)

$

$

Not available

2

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$

$

Not available

3

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532102332

DNO BRACKET RH CRT
(Superseded to 581864701)

$

$

Not available

6

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 532102173

COUNTERWEIGHT, RH

$

$

Not available

10

Husqvarna 874760524

BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 7

0

12

Husqvarna 532126875

RIVET,DRILLED

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532005015

TIRE.16X4-8.CHEVRON.TILLER

$53.99

$

In Stock, only 1 left!

0

Husqvarna 532124366

RIM
(Superseded to 532128952)

$

$

Not available

Husqvarna 532124718

VALVE STEM LT
(Superseded to 532065139)

$4.99

$

In Stock, Qty 15

0

15

Husqvarna TBD

Note: ENGINE BRIGGS MODES 121002-1423-B8

$

$

Not available

44

Husqvarna 873510600

NUT

$

$

Not available
