CT 2105 R (960910001-08) - Jonsered Rear-Tine Cultivator (2011-05) MAINFRAME RIGHT SIDE Parts Diagram

Rear-Tine Cultivator

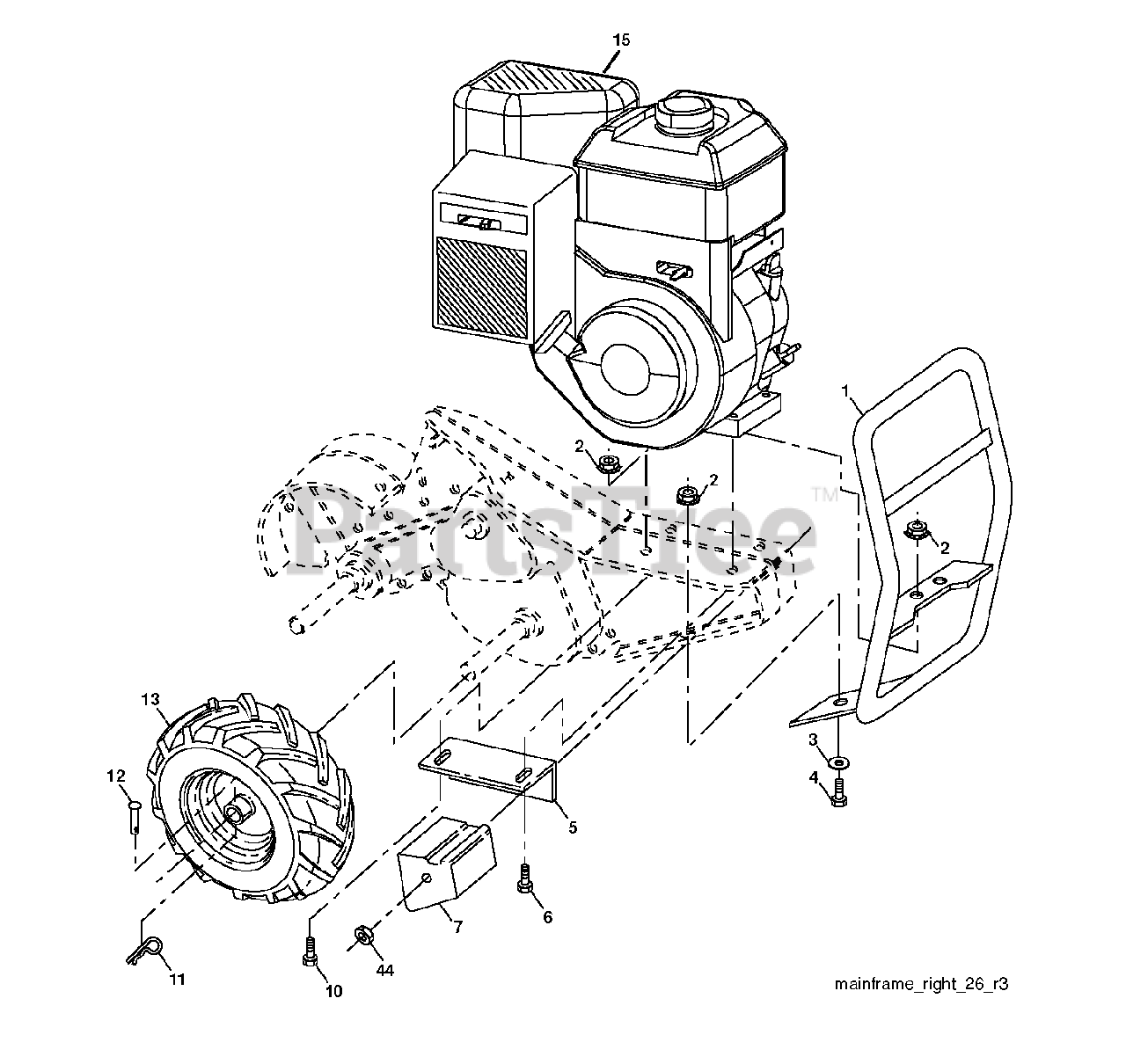

MAINFRAME RIGHT SIDE Parts Diagram

  • Title

1

Jonsered 532185190

BUMPER.ASM.TILLER.
(Superseded to 583879301)

$

$

Not available

2

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Jonsered 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

5

Jonsered 532102332

BRACKET RH CRT
(Superseded to 581864701)

$

$

Not available

6

Jonsered 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, only 3 left!

0

7

Jonsered 532102173

COUNTERWEIGHT, RH

$

$

Not available

10

Jonsered 874760524

BOLT
(Superseded to 539976935)

$3.99

$

In Stock, only 2 left!

0

11

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 10

0

12

Jonsered 532126875

RIVET,DRILLED

$3.99

$

In Stock, Qty 20+

0

13

Jonsered 532005015

TIRE

$53.99

$

In Stock, only 1 left!

0

Jonsered 532124366

RIM
(Superseded to 532128952)

$

$

Not available

Jonsered 532124718

VALVE STEM LT
(Superseded to 532065139)

$4.99

$

In Stock, Qty 15

0

15

Jonsered 000000000

No Description Available

Note: Engine Briggs Stratton Model No 121002-1423-B8 435278) (Order parts from engine manufacturer)

$

$

Not available

44

Jonsered 873510600

NUT **

$

$

Not available
