CT 2105 R (960910001-17) - Jonsered Rear-Tine Cultivator (2016-01) HANDLE Parts Diagram

Rear-Tine Cultivator

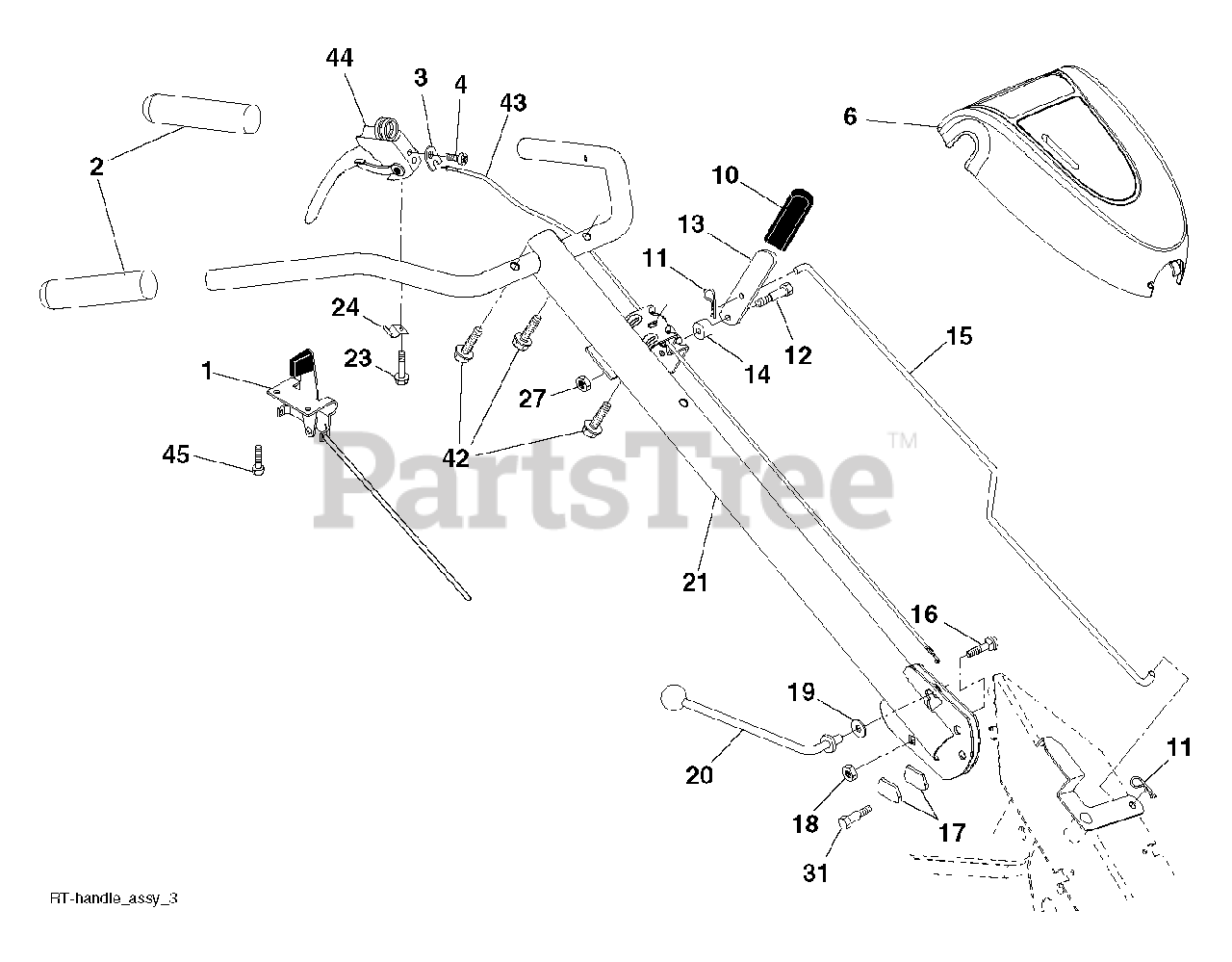

HANDLE Parts Diagram

  • Title

1

Jonsered 586681501

CONTROL.THROTTLE.SNAP.IN

$205.99

$

Usually ships in 3-10 days

0

2

Jonsered 532427643

GRIP.1X5.06
(Superseded to 532165787)

$6.99

$

In Stock, Qty 6

0

3

Jonsered 589284102

CLIP.RETAINER.CABLE.BZP

$

$

Not available

4

Jonsered 818101008

SCREW.TORX.#10-14X1/2

$

$

Not available

6

501857110

$

$

Not available

10

Jonsered 532124797

GRIP T
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

11

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 19

0

12

Jonsered 532081328

SHOULDER BOLT ST

$6.49

$

In Stock, only 2 left!

0

13

Jonsered 581851201

(Superseded to 584462101)

$

$

Not available

14

Jonsered 532109313

GROMMET.RUBBER.CRT.TILLER

$7.49

$

Usually ships in 3-10 days

0

15

Jonsered 532138400

ROD, SHIFT
(Superseded to 138400)

$39.99

$

In Stock, only 1 left!

0

16

Jonsered 872110608

BOLT D

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 532109229

LOCK CRT

$7.49

$

In Stock, only 4 left!

0

18

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 819131611

WASHER CRT
(Superseded to 596140201)

$3.99

$

In Stock, only 2 left!

0

20

Jonsered 532109228

LEVER.LOCK.CRT

$13.99

$

In Stock, Qty 10

0

21

Jonsered 581969401

Curved Plow Handle Assembly for Tiller, Black

$136.99

$

In Stock, Qty 5

0

23

Jonsered 532086777

TAPPING SCREW
(Superseded to 532750097)

$4.99

$

In Stock, Qty 8

0

24

Jonsered 532446045

CLIP.PLATED
(Superseded to 532009484)

$6.49

$

In Stock, only 3 left!

0

27

Jonsered 873900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 20+

0

31

Jonsered 532150696

BOLT.PIVOT

$7.49

$

In Stock, Qty 11

0

42

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

Usually ships in 3-10 days

0

43

Jonsered 588167002

CABLE.HANDLE.TINE.CONTROL.CE

$22.99

$

Usually ships in 3-10 days

0

44

Jonsered 532438782

No Description Available
(Superseded to 583534201)

$28.99

$

Usually ships in 3-10 days

0

45

Jonsered 532421756

SCREW.#10 X 0.500
(Superseded to 596434001)

$3.99

$

Usually ships in 3-10 days

0

581640202

Note: NOT SHOWN

$

$

Not available
