CT 2510 - Shindaiwa Cultivator Handles Parts Diagram

Cultivator

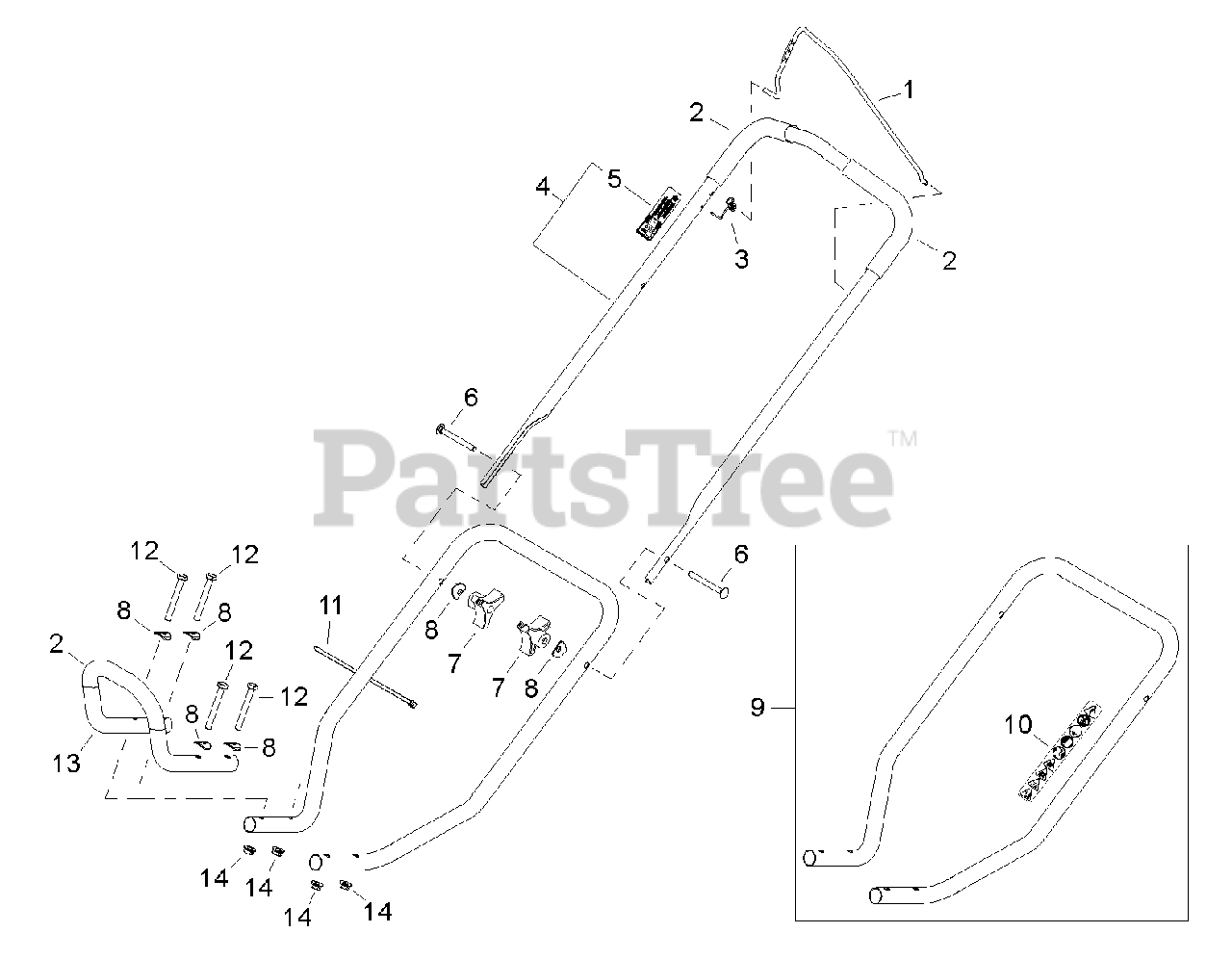

Handles Parts Diagram

  • Title

1

Echo 753-04042

CONTROL, BAIL THROTTLE

$55.99

$

Usually ships in 2-4 days

0

2

Echo 753-04044

GRIP, FOAM
(Superseded to Discontinued)

$

$

Not available

3

Echo 753-05940

SPRING, TORSION
(Superseded to Discontinued)

$

$

Not available

4

Echo 753-04498

HANDLE ASSY, UPPER
(Superseded to Discontinued)

$

$

Not available

5

Echo 89261

LABEL, IGNITION SWITCH
(Superseded to Discontinued)

$

$

Not available

6

Echo 791-182899

BOLT
(Superseded to Discontinued)

$

$

Not available

7

Echo 791-182677

KNOB
(Superseded to Discontinued)

$

$

Not available

8

Echo 753-04052

WASHER, SHOULDER
(Superseded to Discontinued)

$

$

Not available

9

Echo 753-04053

HANDLE ASSY, LOWER

$107.99

$

Usually ships in 2-4 days

0

10

Echo 89214

LABEL, CAUTION

$

$

Currently unavailable

11

Echo 753-04049

TIE, CABLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 753-04054

SCREW
(Superseded to Discontinued)

$

$

Not available

13

Echo 753-04055

HANDLE, FRONT
(Superseded to Discontinued)

$

$

Not available

14

Echo 753-04056

NUT, LOCK
(Superseded to Discontinued)

$

$

Not available
