CT 2510 - Shindaiwa Cultivator Outer Tube / Debris Shield /Gearcase / Tines Parts Diagram

Cultivator

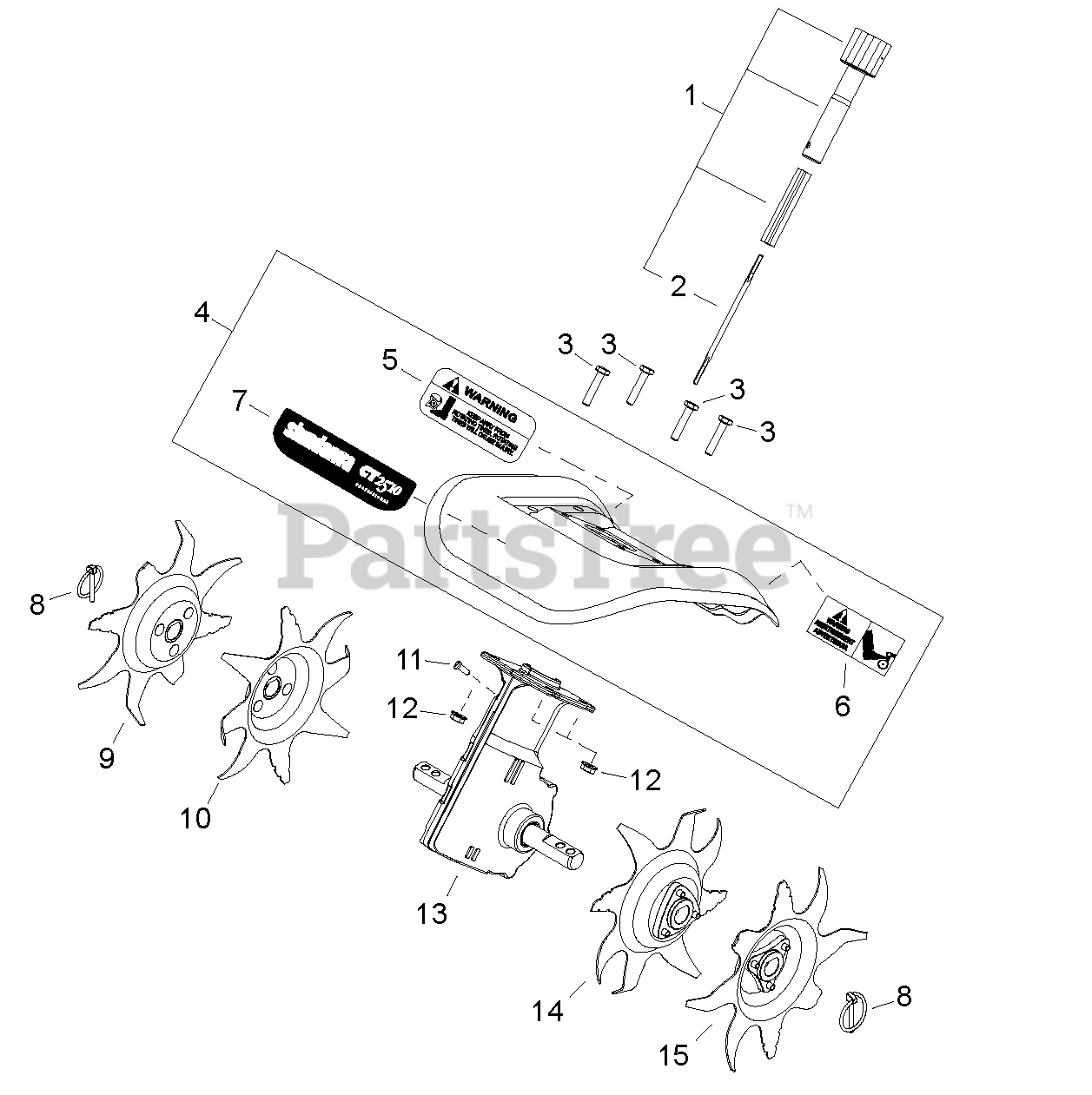

Outer Tube / Debris Shield /Gearcase / Tines Parts Diagram

  • Title

1

Echo 753-06068

MAIN PIPE ASSY

$68.99

$

Usually ships in 2-4 days

0

2

Echo 753-06067

DRIVESHAFT - FLEXIBLE

$27.99

$

Usually ships in 2-4 days

0

3

Echo 753-05001

SCREW
(Superseded to Discontinued)

$

$

Not available

4

Echo 753-04502

DEBRIS SHIELD ASSY

$201.99

$

Usually ships in 2-4 days

0

5

Echo 777S33251

LABEL - WARNING
(Superseded to Discontinued)

$

$

Not available

6

Echo 777S32047

LABEL - WARNING
(Superseded to Discontinued)

$

$

Not available

7

Echo 89188

LABEL - MODEL CT2510
(Superseded to Discontinued)

$

$

Not available

8

Echo 753-04070

PIN, CLICK

$19.99

$

Usually ships in 2-4 days

0

9

Echo 753-04073

TINE - OUTER RIGHT

$108.99

$

Usually ships in 2-4 days

0

10

Echo 753-04074

TINE - INNER RIGHT

$102.99

$

Usually ships in 2-4 days

0

11

Echo 791-180288

SCREW
(Superseded to Discontinued)

$

$

Not available

12

Echo 753-04061

LOCKNUT
(Superseded to Discontinued)

$

$

Not available

13

Echo 753-04075

GEAR CASE ASSY

$347.99

$

Usually ships in 2-4 days

0

14

Echo 753-04072

TINE - INNER LEFT

$105.99

$

Usually ships in 2-4 days

0

15

Echo 753-04071

TINE - OUTER LEFT

$114.99

$

Usually ships in 2-4 days

0
