CT04842GNAN - Generac 48kW Home Standby Generator (SN: 3908V30381 - 3908V30381) (2008) C2 Cooling Sytem & Fan Drive (0G5854) Parts Diagram

48kW Home Standby Generator

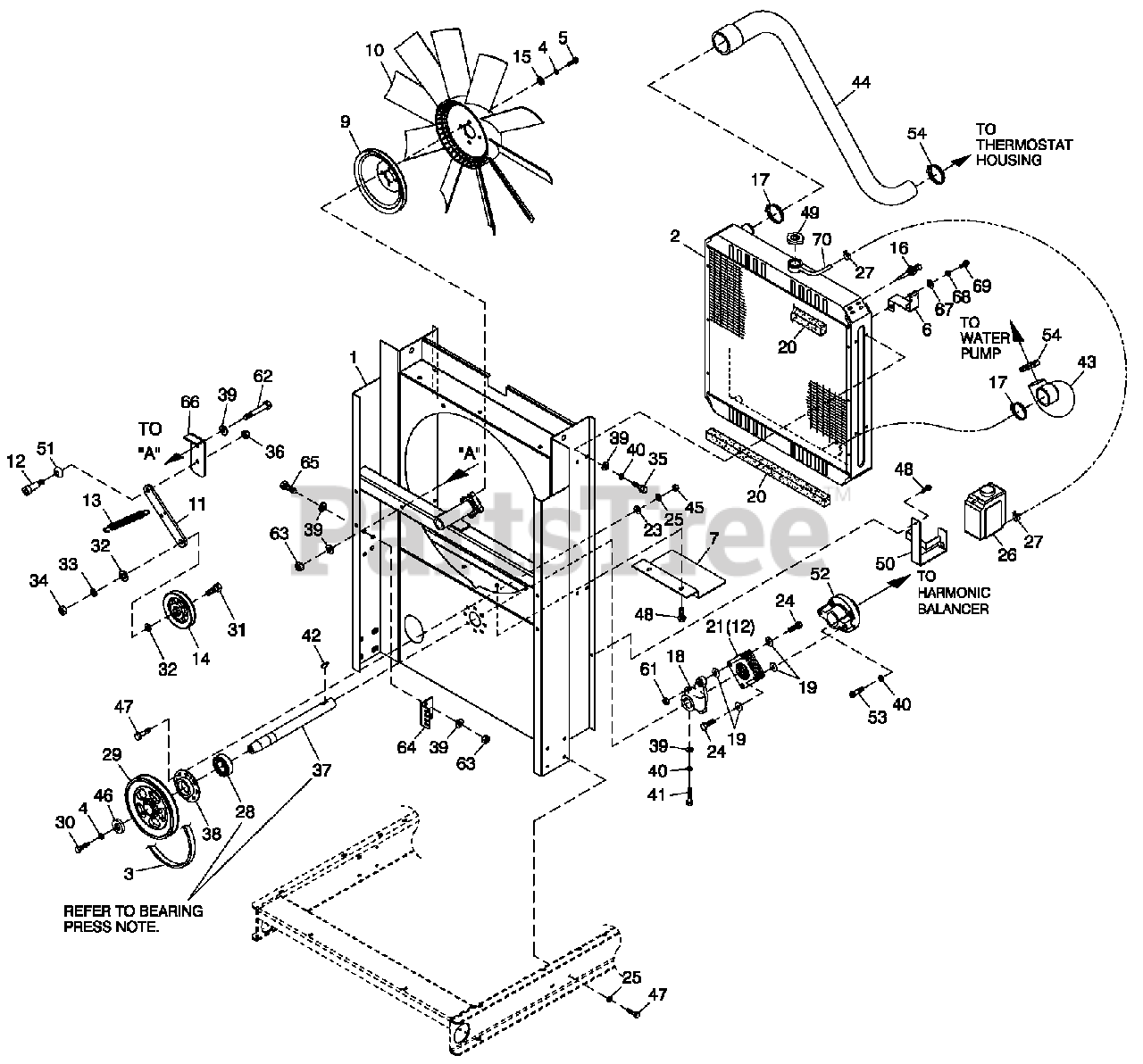

C2 Cooling Sytem & Fan Drive (0G5854) Parts Diagram

  • Title

1

Generac 0G68030ST03

WELDMENT RADIATOR SUPPORT C2

Note: ORDER 0H67310SRV

$

$

Not available

2

Generac 0F2608A

RADIATOR 598 X 568 X 49,CPL LH

Note: MUST ALSO ORDER: 069860E-DRAIN HOSE 043790-BRASS FITTING 090283-RADIATOR CAP. FOR 1.6L OR 2.4L QT ORDER RADIATOR CAP 0G0427. FOR OVERFLOW ADAPTR ORDER 0H2258.

$1493.99

$

Usually ships in 2-12 days

0

3

Generac 0E3256

V-BELT A58 (60IN O.C.) DDC S60

$68.99

$

Usually ships in 2-12 days

0

4

Generac 046526

WASHER LOCK M10

$

$

Not available

5

Generac 059981

SCREW HHC M10 -1.5X 30 G10.9

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TOTHREADS.

$

$

Not available

6

Generac 0F2776A

BRACKET, SIGNAL CONDITIONER (USED ONLY WITH QTA PRODUCT)

$3.99

$

Usually ships in 2-12 days

0

7

Generac 0F5050A

SHIELD RADIATOR C4

$47.99

$

Usually ships in 2-12 days

0

9

Generac 0F2573

PULLEY FAN V-GROOVE 9"

$76.99

$

Usually ships in 2-12 days

0

10

Generac 0F4011

FAN COOL 22" D IA 10 BLADE LH

$132.99

$

Usually ships in 2-12 days

0

11

Generac 0G56820ST03

FLAT TENSIONER ARM

$157.99

$

Usually ships in 2-12 days

0

12

Generac 0G2990

SHOULDER BOLT 3/8 X 1/2"

$2.99

$

Usually ships in 2-12 days

0

13

Generac 0F2862

SPRING TENSION CPL

$9.99

$

Usually ships in 2-12 days

0

14

Generac 0F2560

PULLEY V -BELT 4" FLANGED

$27.99

$

In Stock, only 2 left!

0

15

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

16

Generac 0E2507

PROBE COOLANT LEVEL 3/8 NPTF

Note: FOR H & G PANELS ORDER 0H50530SRV. FOR R-200,R-200A,R-200B, R-200C ORDER 0H50540SRV. FOR EXTERNAL MOUNTED PROBES IN ALUM. BLOCKS & ALL OTHER PRODUCT ORDER 0E2507.

$192.99

$

Usually ships in 2-12 days

0

17

Generac 035685

CLAMP HOSE #28 1.32-2.25

$

$

Not available

18

Generac 0F2561

HUB FLEX PLATE

$48.99

$

Usually ships in 2-12 days

0

19

Generac 0C8145

WASHER FLEX (THIN)

$2.99

$

Usually ships in 2-12 days

0

20

Generac 052250

TAPE FOAM 1 X 1 (26.75" LG)

$2.99

$

In Stock, only 1 left!

0

21

Generac 0C7043

DISK FLEX

Note: IF YOU NEED KIT ORDER P/N 0E33940SRV.KIT CONTAINS QTY-12 OF 0C7043.

$

$

Not available

23

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

24

Generac 0C8146

SCREW HHC 5/16-24X1.124

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TOTHREADS.

$2.49

$

Usually ships in 2-12 days

0

25

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

26

Generac 076749

TANK COOLANT RECOVERY
(Superseded to G076749)

$39.99

$

Usually ships in 2-12 days

0

27

Generac 048031C

CLAMP HOSE BAND 1/4

Note: INCLUDED WITH I/N 26.

$0.99

$

Usually ships in 2-12 days

0

28

Generac 031971

BEARING #6205 2NSE C3 E SRI2 S
(Superseded to G031971)

$35.99

$

In Stock, only 1 left!

0

29

Generac 0F4028

PULLEY 6.5" DIA MACHINED

$53.99

$

Usually ships in 2-12 days

0

30

Generac 042911

SCREW HHC M10-1.5X 30 G8.8

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TOTHREADS.

$

$

Not available

31

Generac 0F2872

SCREW HHC 1/2-13 X 2" G8

$19.99

$

Usually ships in 2-12 days

0

32

Generac 022304

WASHER FLAT 1/2 ZINC
(Superseded to G022304)

$7.49

$

In Stock, Qty 10

0

33

Generac 022195

WASHER LOCK 1/2

$

$

Not available

34

Generac 022196

NUT HEX 1/2-13 STEEL

$

$

Not available

35

Generac 0F8651

SCREW HHFC M8-1.25 X 20 W/M6

$1.99

$

Usually ships in 2-12 days

0

36

Generac 070015

NUT HEX LOCK 5/16-18 NY INS SS

$

$

Not available

37

Generac 0F9867

SHAFT FAN DRIVE

$98.99

$

Usually ships in 2-12 days

0

38

Generac 0F2461

RETAINER BEARING

$13.99

$

Usually ships in 2-12 days

0

39

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

40

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

41

Generac 039414

SCREW HHC M8-1.25X 35 G8.8
(Superseded to G039414)

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TOTHREADS.

$15.99

$

Usually ships in 2-12 days

0

42

Generac 082774

KEY WOODRUFF 4X19D
(Superseded to G082774)

$9.49

$

Usually ships in 2-12 days

0

43

Generac 0G5465

HOSE RADIATOR LOWER FRONT

$44.99

$

Usually ships in 2-12 days

0

44

Generac 0G5459

HOSE RADIATOR UPPER FRONT

$106.99

$

Usually ships in 2-12 days

0

45

Generac 049813

NUT HEX M6X 1.0 G8YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

46

Generac 052644

SPACER .5 X 1.5 X .25 STL/ZINC

$

$

Not available

47

Generac 0C8566

SCREW HHFC M6-1.0X 20 G8.8

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

$9.49

$

Usually ships in 2-12 days

0

48

Generac 0C2454

SCREW THF M6-1 X 16 N WAZ/JS

$3.49

$

Usually ships in 2-12 days

0

49

Generac 090283

CAP RADIATOR 13 PSI

$

$

Not available

50

Generac 080713

BRACKET COOLANT TANK

$

$

Not available

51

Generac 0G4376

WASHER BELLEVILLE .75X.38X.028

$21.99

$

Usually ships in 2-12 days

0

52

Generac 0G5299

COUPLING FLEX HUB MACHINED

$55.99

$

Usually ships in 2-12 days

0

53

Generac 049821

SCREW SHC M8-1.25X 30 G12.9
(Superseded to G049821)

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TOTHREADS.

$2.49

$

Usually ships in 2-12 days

0

54

Generac 099502

CLAMP HOSE #24 B1.06 -2.00

$

$

Not available

61

Generac 0C8165

NUT HEX LOCK 5/16-24 NY INS

$0.99

$

Usually ships in 2-12 days

0

62

Generac 051698

SCREW HHC M8-1.25X 75 C8.8

$

$

Not available

63

Generac 049820

NUT HEX LOCK M8-1.25 NY INS
(Superseded to G049820)

$0.99

$

In Stock, Qty 7

0

64

Generac 0G6793AST03

BRACKET TENSIONER SPRING

$21.99

$

Usually ships in 2-12 days

0

65

Generac 039253

SCREW HHC M8-1.25X 20 C8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

66

Generac 0G56830ST03

TENSIONER ARM SUPPORT BENT 90

$153.99

$

Usually ships in 2-12 days

0

67

Generac 022145

WASHER FLAT 5/16-M8 ZINC (USED ONLY WITH QTA PRODUCT)
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

68

Generac 022129

WASHER LOCK M8 -5/16 (USED ONLY WITH QTA PRODUCT)
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

69

Generac 0F8651

SCREW HHFC M8-1.25X20 W/M6 (USED ONLY WITH QTA PRODUCT)

$1.99

$

Usually ships in 2-12 days

0

70

Generac 029032

HOSE 9/32 ID (60" LG)
(Superseded to G029032)

$6.49

$

Usually ships in 2-12 days

0
