CT04842GNAN - Generac 48kW Home Standby Generator (SN: 3908V30381 - 3908V30381) (2008) Fuel System 2.4l C2 G2 (0G5967) Parts Diagram

48kW Home Standby Generator

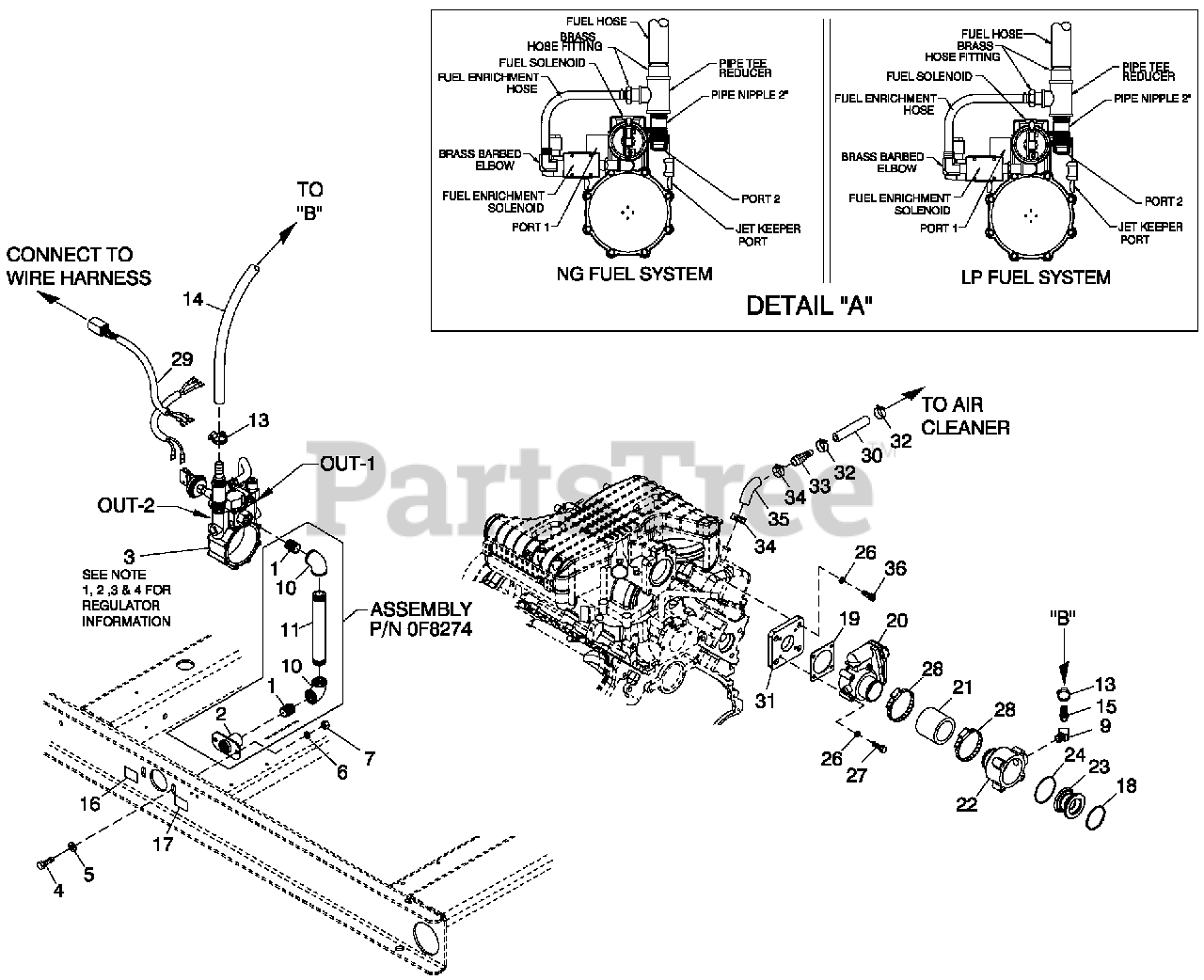

Fuel System 2.4l C2 G2 (0G5967) Parts Diagram

  • Title

1

Generac 026915

NIPPLE CLOSE 3/4X1.375

$

$

Not available

2

Generac 075580

FLANGE FUEL INLET

$

$

Not available

3

0F6390E

REGULATOR ASSY 4.2L 48KW

$

$

Not available

0F6390F

REGULATOR ASSY 4.2L 35KW

$

$

Not available

4

Generac 039253

SCREW H H CM 8-1.25X 20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

5

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

6

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

7

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 7

0

9

Generac 0E8286

STREET EL 45D 1/2 NPT BRASS

$100.99

$

Usually ships in 2-12 days

0

10

Generac 026812

ELBOW 90D 3/4 NPT

$

$

Not available

11

Generac 0F8379

NIPPLE P PE 3/4 NPT X 7

$34.99

$

Usually ships in 2-12 days

0

13

Generac 057823

CLAMP HOSE #10 .5 6 -1 .06
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

14

Generac 059057

HOSE 3/4 D SAE-30R2 (22" LG)

$

$

Not available

15

Generac 047527

BARBED STR 1/2 NPT X 3/4

$

$

Not available

16

Generac 0D1509

DECAL INLET PRESSURE

$8.49

$

Usually ships in 2-12 days

0

17

Generac 050279

DECAL FUEL INLET NG (NATURAL GAS APPLICATION)

$

$

Not available

Generac 050280

DECAL FUEL INLET LPG (LP VAPOR APPLICATION)

$

$

Not available

18

Generac 0F2119

O-RING 45.63 ID X 2.62 WIDT

$1.99

$

Usually ships in 2-12 days

0

19

Generac 0E6586

GASKET BOSC 32

$2.49

$

Usually ships in 2-12 days

0

20

Generac 0E4394

ACTUATOR BOSC 40 GOVERNOR

$701.99

$

In Stock, only 1 left!

0

21

Generac 040105

HOSE COOL 2 IN ID 20R4

$

$

Not available

22

Generac 0G4573B

MiXER ACTUATOR 40MM MACHINED

$42.99

$

Usually ships in 2-12 days

0

23

Generac 0F7790E

VENTURI THROTTLE 26MM

$4.49

$

Usually ships in 2-12 days

0

24

Generac 0E7121

O-RING 47.625 ID X 2.38 W DT

$29.99

$

Usually ships in 2-12 days

0

26

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

27

Generac 046580

SCREW S C M6-1.0 X 45 G12.9

$

$

Not available

28

Generac 035685

CLAMP OSE #28 1.32-2.25

$

$

Not available

29

Generac 0F6155

HARNESS CPL FUEL JUMPER

$72.99

$

Usually ships in 2-12 days

0

30

Generac 047290

HOSE 3/8 ID S NGLE BRA D (20" LG)
(Superseded to G047290)

$10.99

$

In Stock, only 1 left!

0

31

Generac 0E6123A

INTAKE ADAPTER 4.2L G3-BOSC

$59.99

$

Usually ships in 2-12 days

0

32

Generac 048031J

CLAMP OSE BAND .63

Note: ON ALL PORTABLE, HSB, INDUSTRIAL & L&G ENGINES THAT USE THE 0D3083 OIL DRAIN HOSE USE 0G3662

$1.49

$

Usually ships in 2-12 days

0

33

Generac 0G1462

HOSE BARB REDUCER 5/8"-3/8" D

$3.49

$

Usually ships in 2-12 days

0

34

Generac 048031P

CLAMP HOSE BAND .88"

$1.99

$

Usually ships in 2-12 days

0

35

Generac 0G0321

HOSE COOL 5/8" D 250&WP (2"LG)

$26.99

$

Usually ships in 2-12 days

0

36

Generac 047487

SCREW S C M6-1.0 X 18 G12.9

$

$

Not available
