CT13068GNSN - Generac 130kW Home Standby Generator (SN: 2808V28689 - 2808V28689) (2008) Battery 27F Gear Box 6.8L 100 & 130Kw CPL (0G0775) Parts Diagram

130kW Home Standby Generator

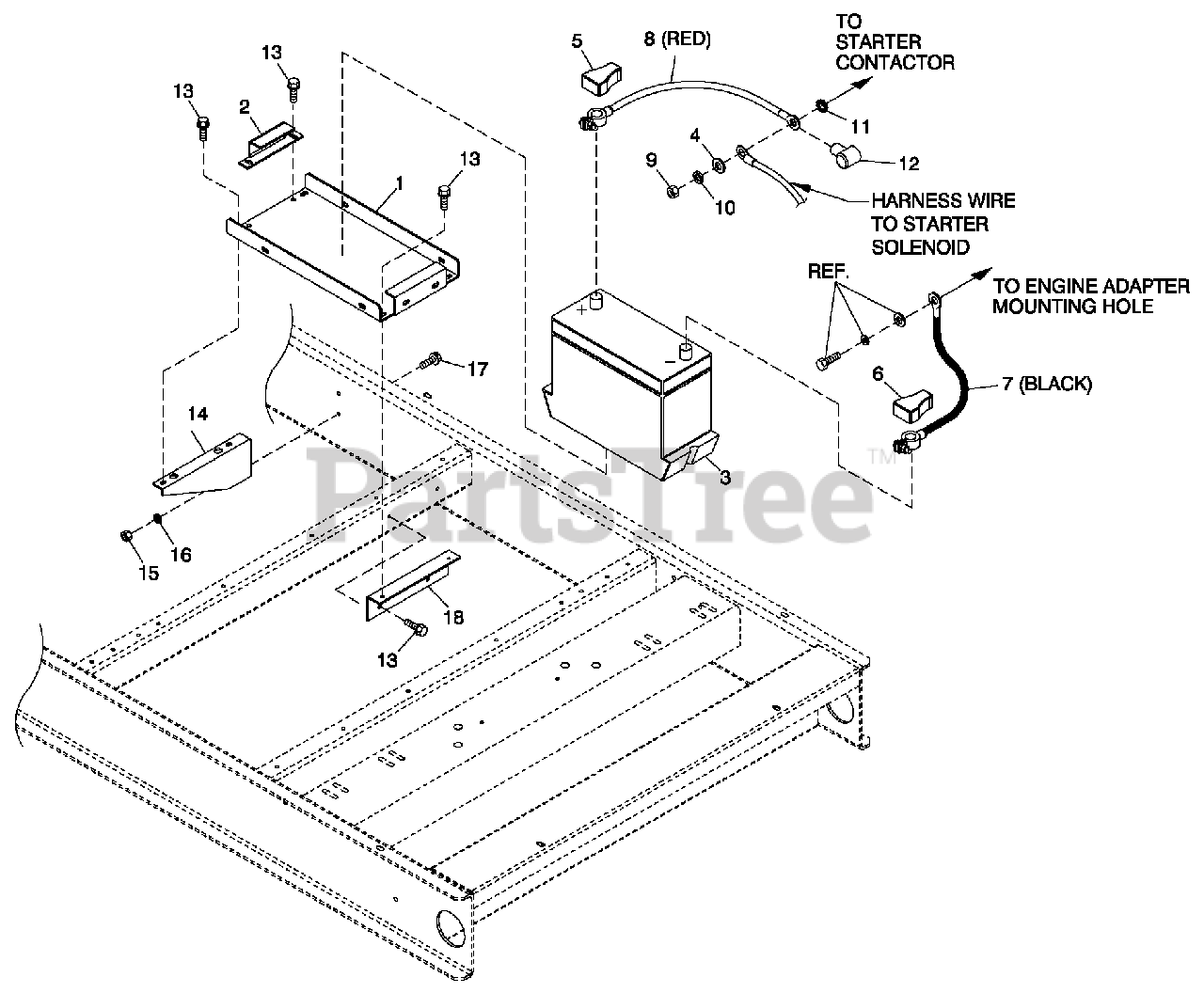

Battery 27F Gear Box 6.8L 100 & 130Kw CPL (0G0775) Parts Diagram

  • Title

1

Generac 0F3408A

TRAY BATTERY 27F

$106.99

$

Usually ships in 2-12 days

0

2

Generac 0F3411A

STRAP BATTERY RETAINMENT 27F

$38.99

$

Usually ships in 2-12 days

0

3

Generac 58665

BATTERY 12VDC 90-AH 27F

$

$

Not available

4

Generac 22131

WASHER FLAT 3/8-M10 ZINC

$

$

Not available

5

Generac 050331A

BATTERY POST COVER RED +

$4.99

$

Usually ships in 2-12 days

0

6

Generac 50331

BATTERY POST COVER BLK -

$

$

Not available

7

Generac 38805Z

CABLE BATTERY BACLK #1 X 26.00

$

$

Not available

8

Generac 038804U

CABLE BATTERY RED #1 X 28.00

$106.99

$

Usually ships in 2-12 days

0

9

Generac 45771

NUTHEXM8-1.25 G8YEL CHR

$

$

Not available

10

Generac 22129

WASHER LOCK M8-5/16

$

$

Not available

11

Generac 27482

WASHER SHAKEPROOF EXT 5/16 STL

$

$

Not available

12

Generac 75763

BOOT BATTERY CABLE

$

$

Not available

13

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.99

$

Usually ships in 2-12 days

0

14

Generac 0F3409

SUPPORT BATTERY TRAY

$51.99

$

Usually ships in 2-12 days

0

15

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

16

Generac 49813

NUT HEX M6X 1.0 G8YEL CHR

$

$

Not available

17

Generac 42568

SCREW HHC M6-1.0X 20 G8.8

$

$

Not available

18

0G0783

SUPPORT 27F BATTERY

$

$

Not available
