CT13068GNSN - Generac 130kW Home Standby Generator (SN: 2808V28689 - 2808V28689) (2008) Engine Common Parts R/H Side 6.8L G/B CPL (0F3557) Parts Diagram

130kW Home Standby Generator

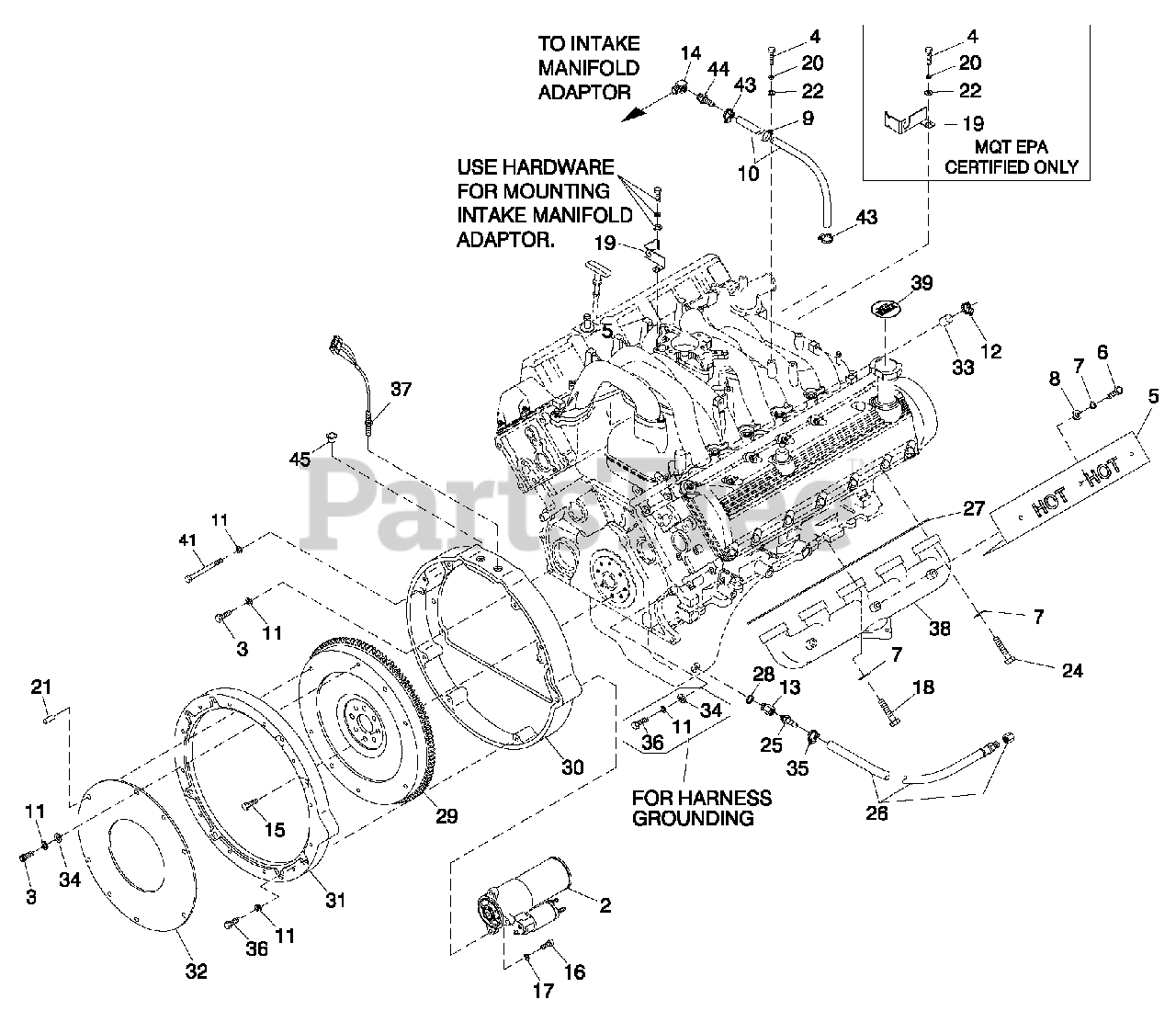

Engine Common Parts R/H Side 6.8L G/B CPL (0F3557) Parts Diagram

  • Title

2

Generac 0D5418

STARTER MOTOR FORD V-10 ENGINE

$795.93

$

Usually ships in 2-12 days

0

3

Generac 52625

SCREW SHC M10-1.5X 35 G12.9

$

$

Not available

4

Generac 47411

SCREWHHCM6-1.0 X16G8.8

Note: QTY. REQ. FOR NON-MQT/ QTY REQ. FOR MQT EPA CERT.

$

$

Not available

5

0D 5623

HEAT SHIELD EXHAUST

$

$

Not available

6

0D 2608

SCREW HHC 916-18X 1/2 SSTL

$

$

Not available

7

Generac 70006

WASHER LOCK M8SSTL

$

$

Not available

8

Generac 70008

WASHER FLATM8 SS

$

$

Not available

9

Generac 055934M

CLAMPVINYL .75X.343Z

$3.99

$

Usually ships in 2-12 days

0

10

Generac 0G0321

HOSE COOL 5(8" ID 250)WP (14")

$27.99

$

Usually ships in 2-12 days

0

11

Generac 46526

WAS HER LOCK M10

$

$

Not available

12

Generac 57823

CLAM PHOSE #10.56 - 1.06 (2300 & 3000RPM UNTSONLY)

$

$

Not available

13

Generac 57765

ADAPTERM14-1.50 X3/8NPT

$

$

Not available

14

Generac 46964

ELBOW 90D 1/4 NPT F-M BRASS

$

$

Not available

15

Generac 0D5417

SCREW HHCM10-1.0X 25 G10.9

$4.49

$

Usually ships in 2-12 days

0

16

Generac 49821

SCREW SHC M8-1.25X30G12.9

$

$

Not available

17

Generac 22129

WAS HER LOCK M8-5/16

$

$

Not available

18

Generac 70010

SCREW HHCM 8-1.25 X 35 SSF-TH

$

$

Not available

19

Generac 0F2776A

BRACKETSIGNAL CONDITIONER

Note: QTY. REQ. FOR NON-MQT/ QTY REQ. FOR MQT EPA CERT.

$4.49

$

Usually ships in 2-12 days

0

20

Generac 22097

WAS HER LOCK M6-1/4

Note: QTY. REQ. FOR NON-MQT/ QTY REQ. FOR MQT EPA CERT.

$

$

Not available

21

Generac 48191

DOWEL PIN M10X24

$

$

Not available

22

Generac 22473

WAS HER FLAT 1/4 ZINC

Note: QTY. REQ. FOR NON-MQT/ QTY REQ. FOR MQT EPA CERT.

$

$

Not available

23

Generac 029333A

TIE WRAP UL7.4" X .19" BLK (NOTSHOWN)

Note: NOTE: l/N 23 IS FOR HOLDING SENSORS TO l/N 19.

$0.99

$

Usually ships in 2-12 days

0

24

Generac 0D9913

SCREW SHC M8-1.25X35SS

$10.99

$

Usually ships in 2-12 days

0

25

Generac 55596

BARBED STR 3/8NPTX3/8

$

$

Not available

26

Generac 069860E

HOSE DRAIN ASSY 28"

$63.99

$

Usually ships in 2-12 days

0

27

0D 4255

GASKET EXHAUST MANIFOLD

$

$

Not available

28

Generac 57772

WAS HER NYLON .565

$

$

Not available

29

0D 6686

ASSEMBLY 68L G-BOX FLYWHEEL

$

$

Not available

30

0D 3803

FLYWHEELHOUSINGMACH6.8LV10

$

$

Not available

31

0D 3805

COVER FLYWHEEL MACH 6.8L V-10

$

$

Not available

32

Generac 21113

PLATE DAMPNER RETNR

$

$

Not available

33

Generac 77996

CAP HOSE (2300 & 3000RPM UMTS ONLY)

$

$

Not available

34

Generac 22131

WAS HER FLAT 3/8-M10 ZINC

$

$

Not available

35

Generac 0C7649

CLAM PHOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$3.49

$

In Stock, only 2 left!

0

36

Generac 52647

SCREW SHC M10-1.5X 25 G12.9

$

$

Not available

37

Generac 0D2244M

ASSY MAG PI CK U P(3/8-24 M ALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$261.99

$

Usually ships in 2-12 days

0

38

0D 3808

EXH MAN FOLD MACH 6.8L V-10

$

$

Not available

39

Generac 0F5114

DECAL REFER TO OWNERS MANUAL

$1.49

$

Usually ships in 2-12 days

0

41

Generac 79121

SCREWSHC M10-1.50X 100 G10.9

$

$

Not available

43

Generac 57823

CLAM PHOSE #10.56-1.06

$

$

Not available

44

Generac 53660

BARBED STR 1/4NPTX 5/8

$

$

Not available

45

Generac 87599

PLUG PLASTIC 3/8 NPT

$

$

Not available
