CT15068GNSN - Generac 150kW Home Standby Generator (SN: 2408V28069 - 2408V28069) (2008) CPL C3 H Control (0G0278D) Parts Diagram

150kW Home Standby Generator

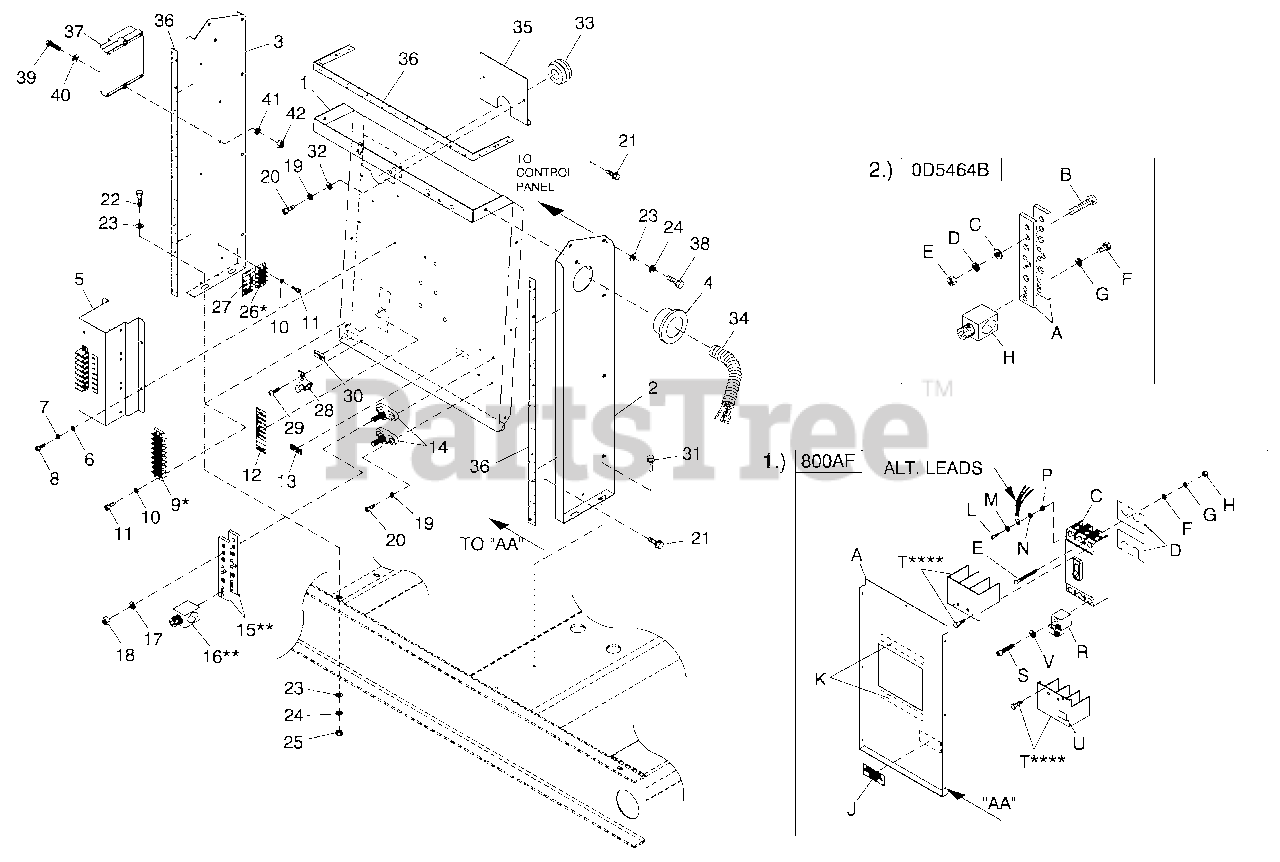

CPL C3 H Control (0G0278D) Parts Diagram

  • Title

1

Generac 0F2885

PANEL CB CONN BOX

$206.99

$

Usually ships in 2-12 days

0

2

Generac 0G0171

STAND RH CONTROL CPL C5

$87.99

$

Usually ships in 2-12 days

0

0G0171A

STAND RH CONTROL CPL C5 2 HOLE

$

$

Not available

3

Generac 0G0172

STAND LH CONTROL CPL C5

$95.99

$

Usually ships in 2-12 days

0

4

Generac 023484N

BUSHING SNAP SB-2.5-31

$2.99

$

Usually ships in 2-12 days

0

5

Generac 0F4677

ASSY PCB INTERFACE 1PH 240V

$155.99

$

Usually ships in 2-12 days

0

Generac 067617030A

INTERFACE 3PHS 416/480V

Note: ORDER P/N 067617S30A.

$

$

Not available

Generac 067617030B

INTERFACE 3PHS 208/240V

Note: ORDER P/N 067617S30B.

$

$

Not available

6

Generac 43180

WASHER FLAT M4

$

$

Not available

7

Generac 22264

WASHER LOCK #8-M4

$

$

Not available

8

Generac 0C3990

SCREW PHTT M4-0.7 X 10 ZYC

$0.99

$

Usually ships in 2-12 days

0

9

Generac 57701

BLOCK TERM 2 0 A 8 X 6 X 1100V

Note: ITEM INCLUDED WITH HARNESS

$

$

Not available

10

Generac 22155

WASHER LOCK #6

$

$

Not available

11

Generac 0C2428

SCREW PHTT # 6 -3 2X1 /2 ZYC

$0.99

$

Usually ships in 2-12 days

0

12

Generac 0F3618

DECAL CPL CUST CONN H CTRL

$25.99

$

Usually ships in 2-12 days

0

13

Generac 0A9457

DECAL NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

14

Generac 57073

JUNCTION BLOCK 3/8-16

$

$

Not available

15

Generac 0D5466

BUS BAR NEUTRAL BLOCK 390

Note: ITEM INCLUDED WITH 0D5464B

$23.99

$

Usually ships in 2-12 days

0

16

Generac 0A7822

LUG SLDLSS 600/250-1/0 X 1/4-28

Note: ITEM INCLUDED WITH 0D5464B

$46.99

$

Usually ships in 2-12 days

0

17

Generac 22237

WASHER LOCK 3/8

$

$

Not available

18

Generac 22241

NUT HEX 3/8-16 STEEL

$

$

Not available

19

Generac 49226

WASHER LOCK M5

$

$

Not available

20

Generac 0C2266

SCREW PHTT M5-0.8X 16 ZYC

$0.99

$

Usually ships in 2-12 days

0

21

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

22

Generac 42568

SCREW HHC M6-1.0X 20 G8.8

$

$

Not available

23

Generac 22473

WASHER FLAT 1/4-M6 ZINC

$

$

Not available

24

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

25

Generac 49813

NUT HEX M 6X 1.0 G8YEL CHR

$

$

Not available

26

Generac 0D4698

BLOCK TERM 2 0 A 6 X 3 X 1100V

$5.99

$

Usually ships in 2-12 days

0

27

Generac 0F4464

DECAL CUST CONN 120V UTILITY

$

$

Not available

28

Generac 25433

LUG SLDLSS #6-14X 13/64CU

$

$

Not available

29

Generac 24469

SCREW HHTT # 10-32X3/8 CZ

$

$

Not available

30

Generac 067210A

DECAL GROUND LUG

$0.99

$

Usually ships in 2-12 days

0

31

Generac 0D6029

SCREW HHTT M6-1.0X16ZYC

$18.99

$

Usually ships in 2-12 days

0

32

Generac 51713

WASHER FLAT M5

$

$

Not available

33

Generac 81008

GROMMET 1.25 X .25 X .75

$

$

Not available

34

Generac 077043J

CONDUIT FLEX 2.0" ID

$

$

Not available

35

Generac 0F6156

PLATE WIRE SNGLGALV

$2.99

$

Usually ships in 2-12 days

0

36

Generac 29289

TAPE ELEC 1/2 FOAM (AS REQ'D)

$

$

Not available

37

Generac 0F3113

ASSY PCB HSB CTRL IGN MODULE

Note: ITEM IS PART OF 9R.. THIS IGNITION MODULE IS ONLY USED WITH THE FOLLOWING ENGINES: 0F3902 5.4L RWD G3 0D3454 6.8L RWD G3 0D3454A 6.8L RWD G3

$714.99

$

Usually ships in 2-12 days

0

38

Generac 47411

SCREW HHC M 6-1.0X 16G 8.8

$

$

Not available

39

36943

SCREW PPHM # 1 0 /32X 2

$

$

Not available

40

Generac 23897

WASHER FLAT #10 ZINC

$

$

Not available

41

Generac 22152

WASHER LOCK #10

$

$

Not available

42

Generac 22158

NUT HEX #10-32 STEEL

$

$

Not available

1

UL CIRCUIT BREAKER (800AF)

$

$

Not available

A

Generac 0G0173

COVER, CB 803 C5

$

$

Not available

C

0F41670

CIRCUIT BREAKERS 800A FRAME

$

$

Not available

D

Generac 0F8433

INSULCB800AF

$

$

Not available

E

22477

SCREW RHM 1/4-20X1-1/2

$

$

Not available

F

Generac 22473

WASHER FLAT 1/4-M6 ZINC

$

$

Not available

G

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

H

Generac 22127

NUT HEX 1/4-20 STEEL

$

$

Not available

J

Generac 0F1733

DECAL CUSTOMER CONNECT INSIDE

$2.49

$

Usually ships in 2-12 days

0

K

Generac 29289

TAPE ELEC 1/2 FOAM

$

$

Not available

L

Generac 60619

SCREW SHC M 10-1.50 X 40 G12.9

$

$

Not available

M

Generac 22131

WASHER FLAT 3/8-M10 ZINC

$

$

Not available

N

Generac 22237

WASHER LOCK 3/8

$

$

Not available

P

Generac 45772

NUT HEX M10-1.5G8YEL CHR

$

$

Not available

R

Generac 0F9721

LUG SLDLSS 3/0-400X3 MCM AL/CU

$226.99

$

Usually ships in 2-12 days

0

S

Generac 0D2157

SCREW SHC M6-1.0X 50 G8.8

$1.49

$

Usually ships in 2-12 days

0

T

W/CB

TERM. COVER VITZROTECH 400AF CB

Note: HARDWARE FOR MTG. CB TERMINAL COVERS IS SUPPLIED WITH CIRCUIT BREAKERS.

$

$

Not available

U

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

V

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

2

NEUTRAL BLOCK 390/200-400A

$

$

Not available

A

Generac 0D5466

BUS BAR NEUTRAL BLOCK 390

$23.99

$

Usually ships in 2-12 days

0

B

Generac 039287

SCREW HHC M 8-1.25 X 45 G8.8 FT

$

$

Not available

C

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

D

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

E

Generac 045771

NUT HEX M-81.25 G8 YEL CHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 7

0

F

Generac 045335

SCREW HHC 1/4-28 X 3/4 G5

$

$

Not available

G

Generac 083896

WASHER LOCK 1/4-M6 SS
(Superseded to G083896)

$7.99

$

Usually ships in 2-12 days

0

H

Generac 0A7822

LUG SLDLSS 600/250-1/0 X 1/4-28

$46.99

$

Usually ships in 2-12 days

0
