CT15068GNSN - Generac 150kW Home Standby Generator (SN: 2408V28069 - 2408V28069) (2008) Muffler 5.4L/6.8L CPL Exhaust C5 (0F2969) Parts Diagram

150kW Home Standby Generator

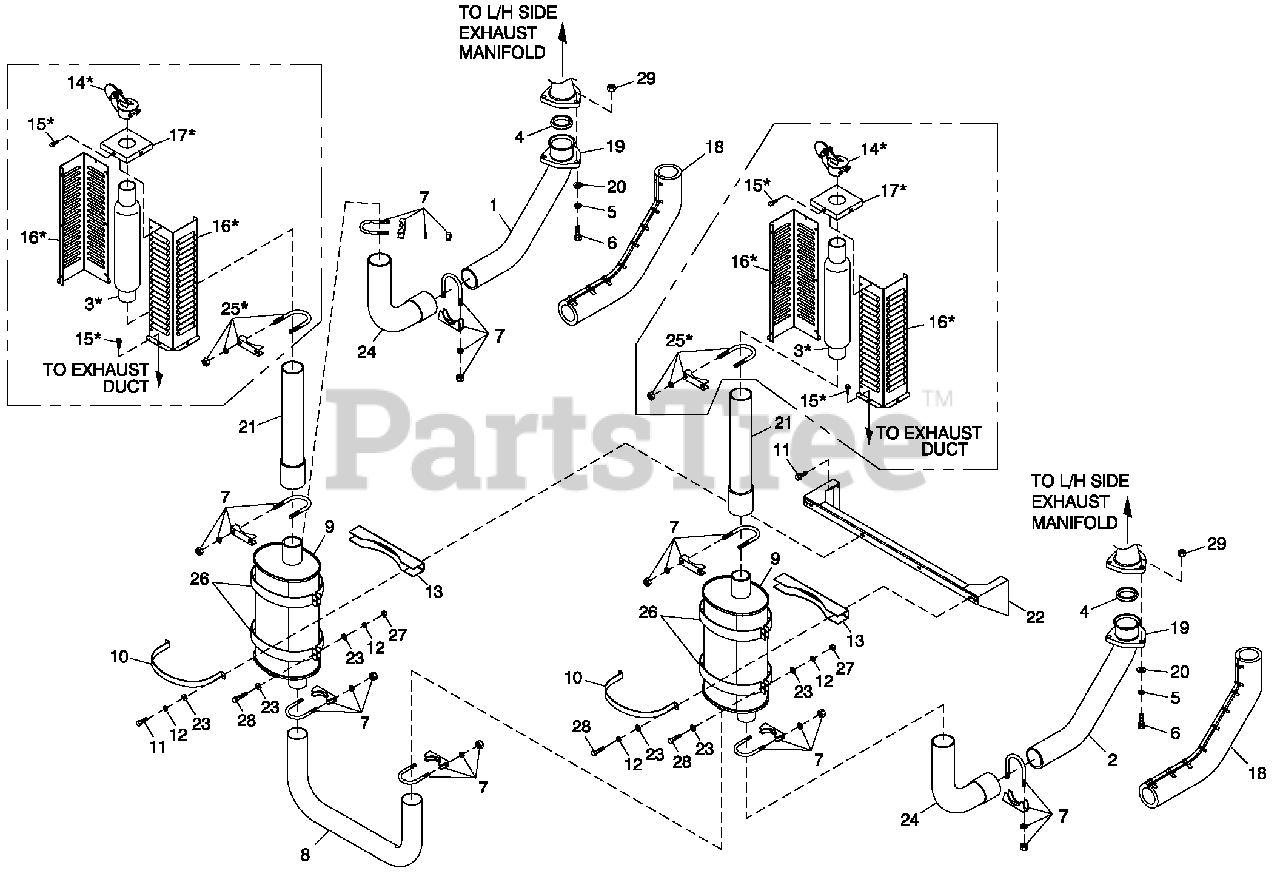

Muffler 5.4L/6.8L CPL Exhaust C5 (0F2969) Parts Diagram

  • Title

1

Generac 0F2807C

PIPE EXH MAN R/H 6.8L G/B CPL (6.8L C5)

Note: ORDER 0F2807CSRV.

$441.99

$

Usually ships in 2-12 days

0

Generac 0F2807E

PIPE EXH MAN R/H 5.4L G/B & 2P (5.4L C5)

Note: ORDER 0F2807ESRV.

$308.99

$

Usually ships in 2-12 days

0

Generac 0F9207

PIPE EXH MANIFOLD 4.6L RH

Note: ORDER 0F92070SRV.

$

$

Not available

2

Generac 0F2807B

PIPE EXH MAN L/H 6.8L G/B CPL (6.8L C5)

Note: ORDER 0F2807BSRV.

$235.99

$

Usually ships in 2-12 days

0

Generac 0F2807D

PIPE EXH MAN L/H 5.4L G/B & 2P (5.4L C5)

Note: ORDER 0F2807DSRV.

$215.99

$

Usually ships in 2-12 days

0

Generac 0F9208

PIPE EXH MANIFOLD 4.6L LH

Note: MUST ALSO ORDER 0F6214 EXH ELBOW WHEN ORDERING THIS PART

$506.99

$

Usually ships in 2-12 days

0

3

Generac 0F4505

GLASS PACK 23.5" LG 2.5" IN/OUT

Note: PARTS INCLUDED IN 0F6332 KIT (TAN) OR 0F6332B KIT (TELECOM GRAY) GLASS PACK SHIP LOOSE.

$244.99

$

Usually ships in 2-12 days

0

4

Generac 0A6765

RING GASKET 2.5 DIA

$21.99

$

In Stock, only 1 left!

0

5

Generac 0F4710

WASHER LOCK M10 SS

$7.99

$

Usually ships in 2-12 days

0

6

Generac 0F7200

SCREW HHC M10-1.5 X 50 SS FTH

$10.99

$

Usually ships in 2-12 days

0

7

Generac 80762

BOLT U 3/8-16 X 2.62

$

$

Not available

8

Generac 0F2809

PIPE EXHAUST CROSSOVER

$141.99

$

Usually ships in 2-12 days

0

9

Generac 0F2981A

MFLR 7" X 9" X 25" (2) 2.5" IN/2.5" OUT

Note: NO LONGER AVAILABLE ORDER 0F2981ASRV

$

$

Not available

10

Generac 0F2962

MUFFLER STRAP

$66.99

$

Usually ships in 2-12 days

0

11

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

12

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

13

Generac 0F2830

MUFFLER BRACKET STIFFENER

$45.99

$

Usually ships in 2-12 days

0

14

Generac 0F4462

RAIN CAP ALUM FOR 2-1/2" PIPE

Note: PARTS INCLUDED IN 0F6332 KIT (TAN) OR 0F6332B KIT (TELECOM GRAY) GLASS PACK SHIP LOOSE.

$72.99

$

Usually ships in 2-12 days

0

15

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

Note: PARTS INCLUDED IN 0F6332 KIT (TAN) OR 0F6332B KIT (TELECOM GRAY) GLASS PACK SHIP LOOSE.

$3.49

$

Usually ships in 2-12 days

0

16

Generac 0F4367

HEAT SHIELD EXHAUST STACK

Note: PARTS INCLUDED IN 0F6332 KIT (TAN) OR 0F6332B KIT (TELECOM GRAY) GLASS PACK SHIP LOOSE.

$170.99

$

Usually ships in 2-12 days

0

17

Generac 0F4368

CAP HEAT SHIELD EXHAUST STACK

Note: PARTS INCLUDED IN 0F6332 KIT (TAN) OR 0F6332B KIT (TELECOM GRAY) GLASS PACK SHIP LOOSE.

$76.99

$

Usually ships in 2-12 days

0

18

Generac 0F2773C

EXHAUST BLANKET 900MM LONG (6.8L C5)

$402.99

$

Usually ships in 2-12 days

0

19

Generac 0F2773D

EXHAUST BLANKET 850MM LONG (5.4L C5)

$389.99

$

Usually ships in 2-12 days

0

20

Generac 0D3159

FLANGE EXHAUST

$57.99

$

In Stock, only 1 left!

0

21

Generac 88775

WASHER FLAT 3/8 SS

$

$

Not available

22

Generac 0F2808

EXHUAST OUTLET PIPE CPL

$79.99

$

Usually ships in 2-12 days

0

23

Generac 0F5447

BRKT MUFFLER

$223.99

$

Usually ships in 2-12 days

0

24

Generac 22473

WASHER FLAT 1/4-M6 ZINC

$

$

Not available

25

Generac 0F6214

PIPE ELBOW EXHAUST MUFFLER

Note: PARTS INCLUDED IN 0F6332 KIT (TAN) OR 0F6332B KIT (TELECOM GRAY) GLASS PACK SHIP LOOSE.. IF YOU NEED THIS PART ORDER ONE OF THESE KITS: 4.6L RH ORDER 0F92070SRV 4.6L LH ORDER 0F92080SRV 5.4L RH ORDER 0F2807ESRV 5.4L LH ORDER 0F2807DSRV 6.8L RH ORDER 0F2807CSRV 6.8L LH ORDER 0F2807BSRV

$115.99

$

Usually ships in 2-12 days

0

26

Generac 80762

BOLT U 3/8-16 X 2.62

$

$

Not available

27

Generac 0F6803

MUFFLER STRAP UPPER/LOWER

$

$

Not available

28

Generac 49813

NUT HEX M6 X 1.0 G8 YEL CHR

$

$

Not available

29

Generac 49721

SCREW HHC M6-1.0 X 35 G8.8 BLK

$

$

Not available

Generac 88510

NUT HEX M10-1.5 SS

$

$

Not available
