CTH 130 (954140100-A) - Husqvarna Lawn Tractor (1999-10) Bagger Parts Diagram

Lawn Tractor

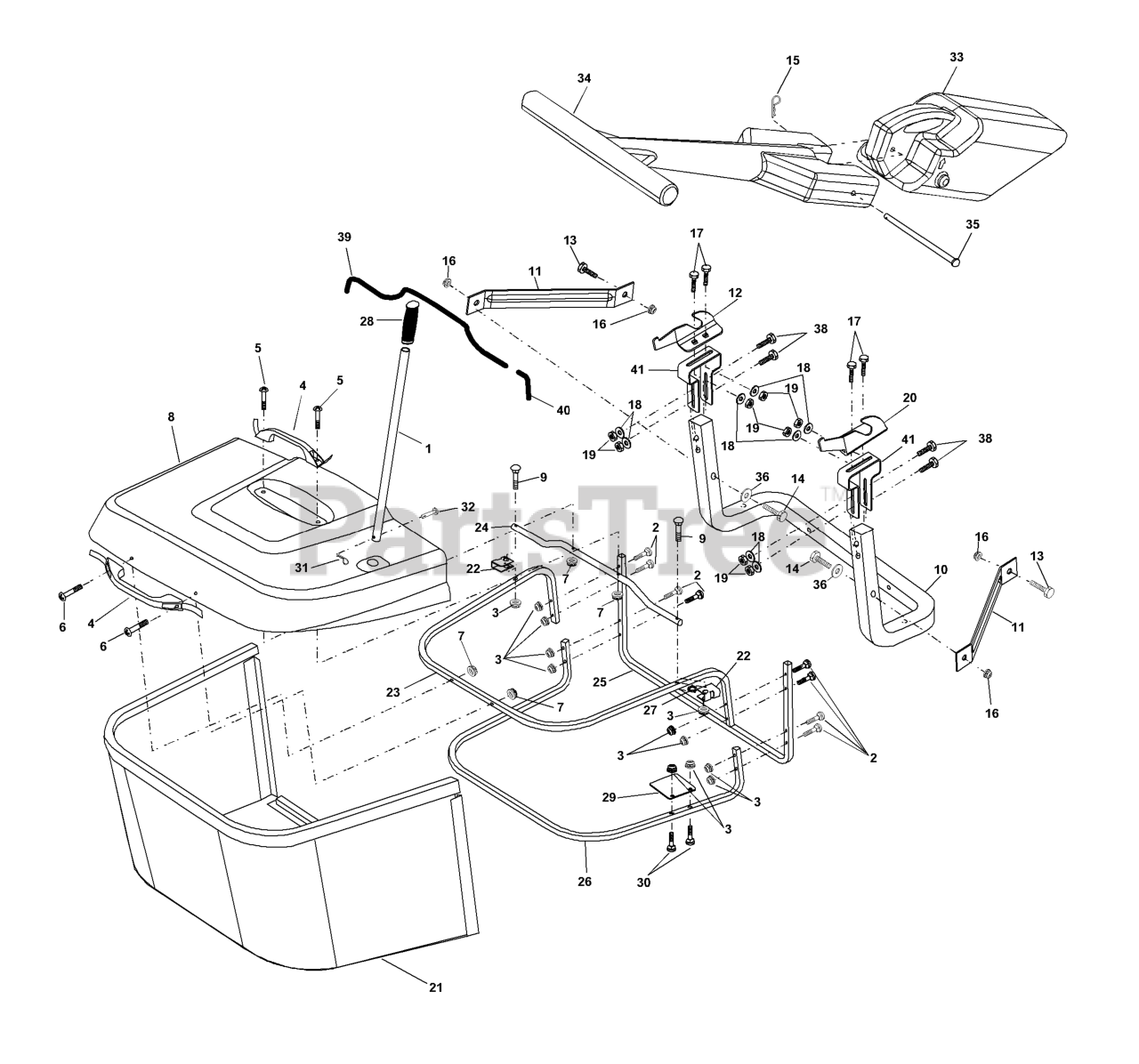

Bagger Parts Diagram

  • Title

1

Husqvarna 532165249

TUBE HANDLE
(Superseded to 532170690)

$

$

Not available

2

Husqvarna 532171270

BOLT
(Superseded to 872140416)

$

$

Not available

3

Husqvarna 532171041

NUT LOCK
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 532169916

HANDLE.BAGGER.W/LVRS.BLK.CRD

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532171266

SCREW
(Superseded to 874981024)

$5.99

$

In Stock, Qty 11

0

6

Husqvarna 532171267

SCREW
(Superseded to 532750029)

$

$

Not available

7

Husqvarna 532171268

NUT
(Superseded to 873401000)

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532167980

COVER
(Superseded to 532165715)

$

$

Not available

9

Husqvarna 532171265

BOLT
(Superseded to 872140418)

$

$

Not available

10

Husqvarna 532169688

TUBE
(Superseded to 583110201)

$

$

Not available

11

Husqvarna 532165719

BRACKET.SUPPORT.UPPER.BAG.CRD

$13.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532171481

BRACKET
(Superseded to 532169685)

$

$

Not available

13

Husqvarna 532171272

BOLT
(Superseded to 872110606)

$

$

Not available

14

Husqvarna 532171273

BOLT
(Superseded to 874520640)

$

$

Not available

15

Husqvarna 532171211

RETAINER SPRING
(Superseded to 596919601)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 532171275

NUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

17

Husqvarna 532171221

BOLT
(Superseded to 595901601)

$3.49

$

In Stock, Qty 12

0

18

Husqvarna 532171392

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 532171026

NUT
(Superseded to 873690500)

$

$

Not available

20

Husqvarna 532171482

BRACKET
(Superseded to 532188847)

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532165780

BAG
(Superseded to 532180880)

$

$

Not available

22

Husqvarna 532165781

BRKT.SIDE.BAG.CRD
(Superseded to 532428236)

$13.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532165782

TUBE.UPPER.BAG.CRD

$

$

Not available

24

Husqvarna 532165783

TUBE.PIVOT.BAG.CRD.BLACK

$26.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532165784

TUBE

$

$

Not available

26

Husqvarna 532165785

TUBE.LOWER.BAG.CRD

$

$

Not available

27

Husqvarna 532169692

BUSHING

$

$

Not available

28

Husqvarna 532165787

GRIP.HANDLE.BLACK

$6.99

$

In Stock, Qty 10

0

29

Husqvarna 532165839

PLATE

$

$

Not available

30

Husqvarna 532171269

BOLT
(Superseded to 872140410)

$

$

Not available

31

Husqvarna 532171160

RETAINER SPRING
(Superseded to 532004497)

$4.99

$

In Stock, Qty 17

0

32

Husqvarna 532171271

RIVET
(Superseded to 532126875)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 532165571

PLUG.MULCHER.92 CRD
(Superseded to 583448501)

$

$

Not available

34

Husqvarna 532165570

HANDLE.MULCHER.92.CRD (2 2)

$51.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532171276

PIN
(Superseded to 532165572)

$

$

Not available

36

Husqvarna 532171274

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 532171393

BOLT
(Superseded to 872010520)

$5.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532169999

TRIM
(Superseded to 532169997)

$

$

Not available

40

Husqvarna 532170000

TRIM
(Superseded to 532169997)

$

$

Not available

41

Husqvarna 532171483

BRACKET
(Superseded to 532169683)

$

$

Not available
