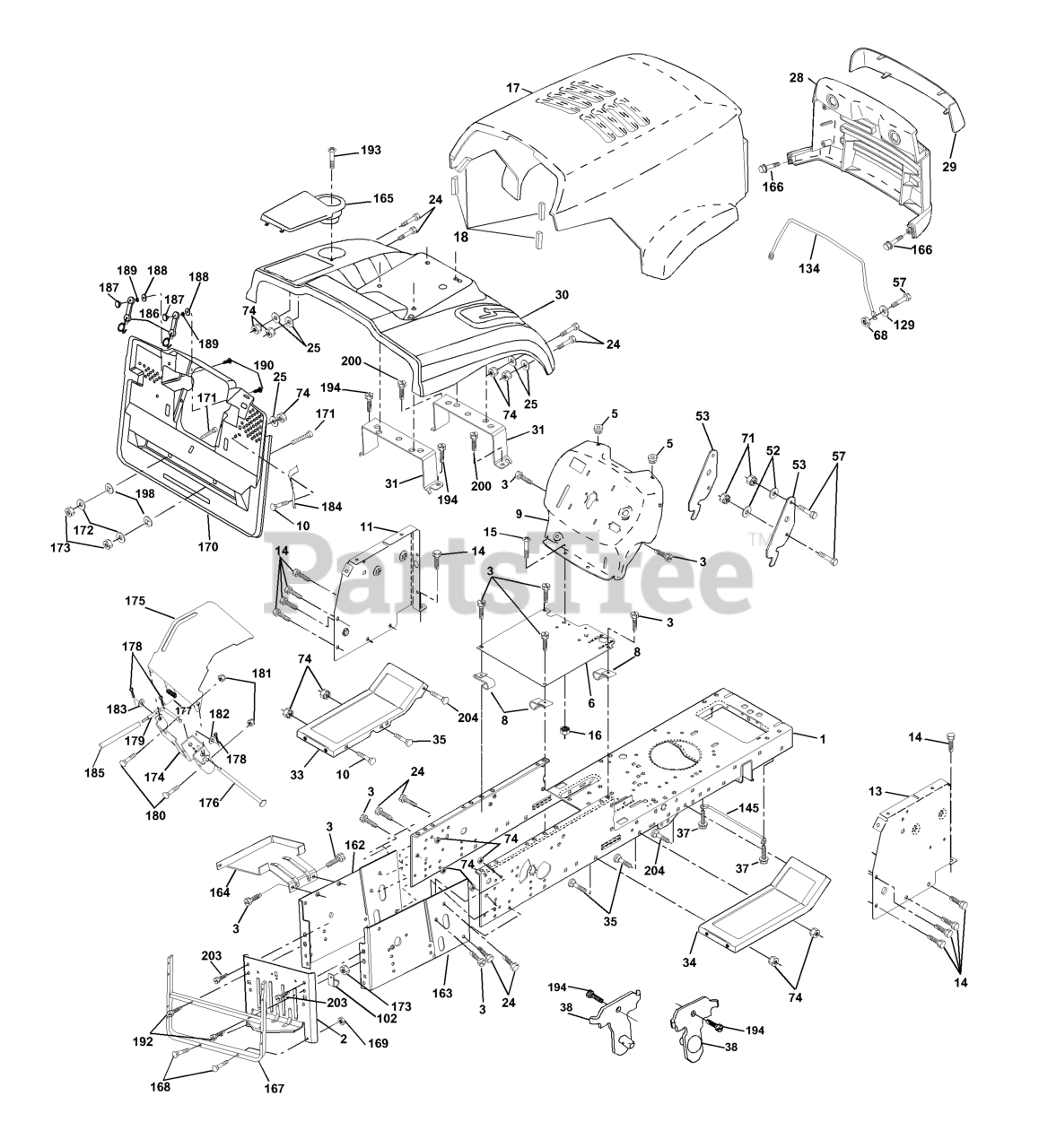

CTH 130 (954140100-A) - Husqvarna Lawn Tractor (1999-10) Chassis And Enclosures Parts Diagram

Lawn Tractor

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532169831

CHASSIS STAMPING

$

$

Not available

2

Husqvarna 532165606

DRAWBAR

$

$

Not available

3

Husqvarna 532171154

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 532155923

SADDLE FLAT

$

$

Not available

8

Husqvarna 532126471

CLIP,INSULATOR

$

$

Not available

9

Husqvarna 532171369

DASH

$

$

Not available

10

Husqvarna 532171150

BOLT
(Superseded to 596728201)

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 532155927

PANEL DASH LH
(Superseded to 532174996)

$

$

Not available

13

Husqvarna 532169118

PANEL DASH

$

$

Not available

14

Husqvarna 532171136

SCREW
(Superseded to 817490608)

$

$

Not available

15

Husqvarna 532171194

SCREW
(Superseded to 874180512)

$

$

Not available

16

Husqvarna 532171228

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532165378

HOOD
(Superseded to 532156051)

$

$

Not available

18

Husqvarna 532126938

BUMPER HOOD T

$

$

Not available

24

Husqvarna 532171031

BOLT
(Superseded to 874780616)

$

$

Not available

25

Husqvarna 532171151

BOLT
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 532165379

GRILL
(Superseded to 532156880)

$

$

Not available

29

Husqvarna 532165380

LENS
(Superseded to 532149777)

$

$

Not available

30

Husqvarna 532167978

FENDER
(Superseded to 532165713)

$

$

Not available

31

Husqvarna 532165156

BRACKET SUPPORT FENDER

$

$

Not available

33

Husqvarna 532147203

FOOT REST LH

$

$

Not available

34

Husqvarna 532147202

FOOTREST RH
(Superseded to 532145243)

$

$

Not available

35

Husqvarna 532171272

BOLT
(Superseded to 872110606)

$

$

Not available

37

Husqvarna 532171169

SCREW
(Superseded to 817490508)

$

$

Not available

38

Husqvarna 532169834

BRACKET
(Superseded to 532175710)

$

$

Not available

51

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

52

Husqvarna 532171224

WASHER
(Superseded to 819091416)

$

$

Not available

53

Husqvarna 532150067

BRACKET PNT PICK OFF LT/PL

$

$

Not available

57

Husqvarna 532171226

BOLT
(Superseded to 874780416)

$

$

Not available

68

Husqvarna 532171018

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

71

UNKNOWN

$

$

Not available

74

Husqvarna 532171141

NUT
(Superseded to 873680600)

$

$

Not available

102

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

129

Husqvarna 532171225

WASHER
(Superseded to 819091016)

$

$

Not available

134

Husqvarna 532160219

ROD SUPPORT HOOD LT/PL HUS.

$

$

Not available

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

162

Husqvarna 532165672

BRACKET

$

$

Not available

163

Husqvarna 532165673

BRACKET

$

$

Not available

164

Husqvarna 532165605

SUPPORT

$

$

Not available

165

Husqvarna 532167979

COVER BATTERY
(Superseded to 583687501)

$

$

Not available

166

Husqvarna 532171223

SCREW
(Superseded to 532189747)

$20.99

$

Usually ships in 3-10 days

0

167

Husqvarna 532165779

SUPPORT.ASM.BACKPLATE

$

$

Not available

168

Husqvarna 532171040

BOLT
(Superseded to 872050412)

$

$

Not available

169

Husqvarna 532171041

NUT LOCK
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

170

Husqvarna 532165607

COVER BACKPLATE

$

$

Not available

171

Husqvarna 532171273

BOLT
(Superseded to 874520640)

$

$

Not available

172

Husqvarna 532171274

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

173

Husqvarna 532171144

NUT
(Superseded to 873510600)

$

$

Not available

174

Husqvarna 532165939

BRACKET

$

$

Not available

175

Husqvarna 532166212

GUARD

$

$

Not available

176

Husqvarna 532128600

HINGE PIN
(Superseded to 532192786)

$20.99

$

In Stock, only 2 left!

0

177

Husqvarna 532132796

SPRING COVER LH

$6.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532171137

PIN COTTER
(Superseded to 532003145)

$

$

Not available

179

Husqvarna 532165942

ROD PIVOT

$

$

Not available

180

Husqvarna 532171354

BOLT
(Superseded to 874780516)

$

$

Not available

181

Husqvarna 532171248

NUT
(Superseded to 873800500)

$

$

Not available

182

Husqvarna 532171139

WASHER
(Superseded to 532138200)

$

$

Not available

183

Husqvarna 532171140

WASHER
(Superseded to 819131316)

$3.49

$

In Stock, Qty 20+

0

184

Husqvarna 532166139

BRACKET

$

$

Not available

185

Husqvarna 532165940

TUBE LEVER

$

$

Not available

186

532160793

LATCH ASSY

$

$

Not available

187

Husqvarna 532171146

NUT
(Superseded to 596987401)

$3.49

$

In Stock, Qty 20+

0

188

Husqvarna 532171147

WASHER
(Superseded to 819061216)

$3.49

$

In Stock, Qty 20+

0

189

Husqvarna 532171148

WASHER
(Superseded to 810071000)

$4.99

$

In Stock, only 2 left!

0

190

Husqvarna 532171149

SCREW
(Superseded to 596039001)

$3.49

$

In Stock, Qty 20+

0

192

Husqvarna 532171143

SCREW
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

193

Husqvarna 532171390

SCREW
(Superseded to 817070412)

$

$

Not available

194

Husqvarna 532171167

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

198

Husqvarna 532168937

NUT

$3.49

$

Usually ships in 3-10 days

0

200

UNKNOWN

$

$

Not available

203

Husqvarna 532171351

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

204

Husqvarna 532171377

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0
