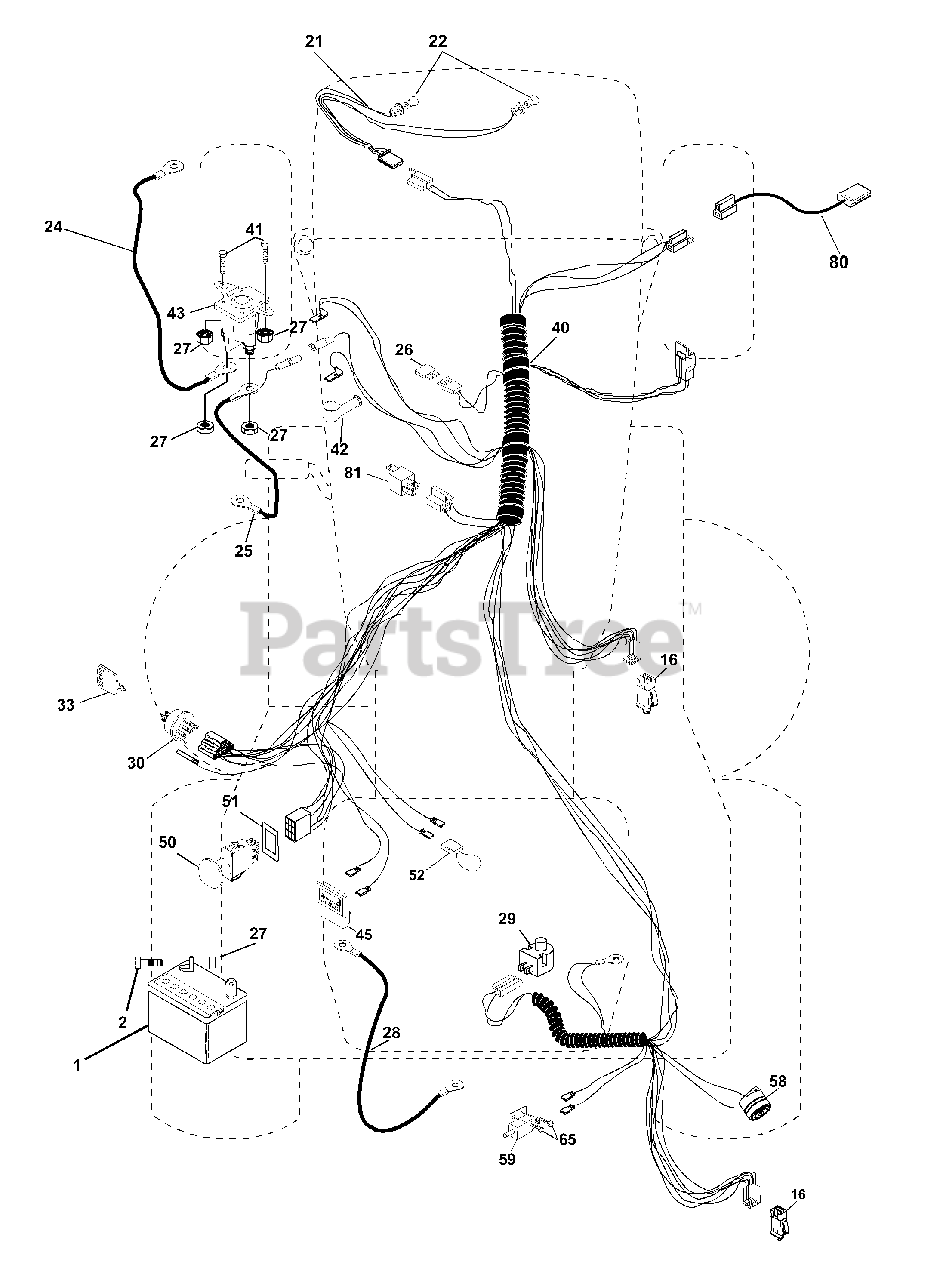

CTH 130 (954140100-A) - Husqvarna Lawn Tractor (1999-10) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532144925

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532171017

Bolt Hex Hd 1/4-20unc X 3/4
(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

16

Husqvarna 532153664

Switch Interlock
(Superseded to 532176138)

$15.99

$

In Stock, Qty 20+

0

21

Husqvarna 532166181

Harness Asm Light W/4152J

$

$

Not available

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532124780

Cable Starter 6 Ga 11" Red
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532165987

Cable Battery CRD 56" Red

$30.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532166180

Fuse 15 Amp
(Superseded to 532175158)

$7.49

$

In Stock, Qty 12

0

27

Husqvarna 532171018

Nut Keps Hex 1/4-20 Unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532127725

Cable Ground

$

$

Not available

29

Husqvarna 532160784

Switch Plunger OP Olive

$18.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532163968

Switch Ign
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

Key Ign

$6.49

$

In Stock, Qty 20+

0

40

Husqvarna 532170214

Harness Ign
(Superseded to 532178443)

$

$

Not available

41

Husqvarna 532171197

Bolt Blk Fin Hex 1/4-20 Unc x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532145673

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, Qty 20+

0

45

Husqvarna 532122822

Ammeter Rectangular 15 Amp

$18.99

$

In Stock, only 1 left!

0

50

Husqvarna 532169417

Switch PTO 3PDT Black Delta
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

51

Husqvarna 532140405

Ring Retainer PTO

$6.49

$

Usually ships in 3-10 days

0

52

UNKNOWN

$

$

Not available

53

Husqvarna 532141940

Protection Wire Loop

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532169419

Buzzer CRD
(Superseded to 532169420)

$72.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532166299

Switch FBI CRD

$

$

Not available

65

Husqvarna 532171152

Screw Slfts #10-16 x 1/2
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532171199

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532146685

Harness Clutch Evx

$26.99

$

In Stock, only 4 left!

0

81

Husqvarna 532109748

Relay Asm.

$34.99

$

In Stock, only 1 left!

0
