CTH 130 (954170018-B) - Husqvarna Lawn Tractor (2000-03) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

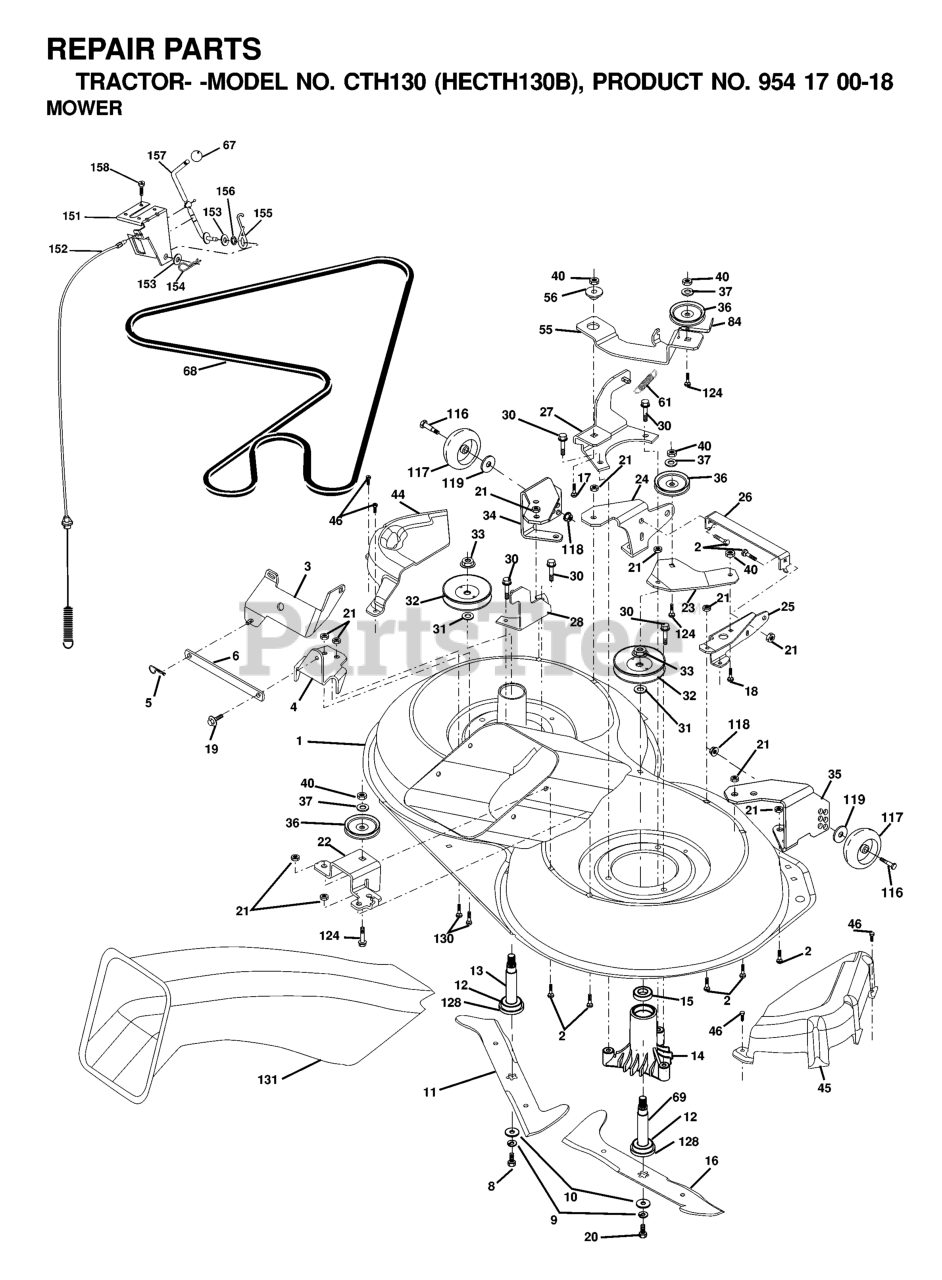

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

11

Husqvarna 532170037

BLADE-LH 5PT STAR(CTH130)
(Superseded to 532426323)

$

$

Not available

45

Husqvarna 532165556

COVER
(Superseded to 532175539)

$23.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532165569

BRACKET

$

$

Not available

158

Husqvarna 817720410

SCREW LT
(Superseded to 596582501)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532165552

MOWER HOUSING, DECK
(Superseded to 532176029)

$319.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532165568

BRACKET

$29.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532169670

BRACKET.CLUTCH.CABLE

$

$

Not available

--

Husqvarna 532165578

DECK MOWER COMP

$

$

Not available

35

Husqvarna 532165238

BRACKET

$

$

Not available

61

Husqvarna 532165945

SPRING.TENSION.BELT

$17.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 532173984)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$83.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532165244

BRACKET

$

$

Not available

--

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$71.99

$

In Stock, Qty 20+

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$41.99

$

In Stock, Qty 20+

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)
(Superseded to 529910001)

$53.99

$

In Stock, only 2 left!

0

23

Husqvarna 532165446

BRACKET

$

$

Not available

156

Husqvarna 532169672

SPACER.CLUTCH.CABLE

$

$

Not available

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, Qty 15

0

6

Husqvarna 532165557

BAR.SWAY.92.CRD

$

$

Not available

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

17

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 595901101)

$4.99

$

In Stock, Qty 5

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$7.49

$

In Stock, Qty 20+

0

--

Husqvarna 532165579

MANDREL ASM.CRD RH 6PT STAR

$119.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532165243

BRACKET

$

$

Not available

20

Husqvarna 532165484

BOLT

$

$

Not available

157

Husqvarna 532169669

ROD CLUTCH CABLE 3/8"

$

$

Not available

154

Husqvarna 532169675

SPRING RETAINER

$5.99

$

In Stock, only 3 left!

0

12

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$14.99

$

In Stock, Qty 20+

0

32

Husqvarna 532153531

PULLEY, MANDREL
(Superseded to 532173434)

$17.99

$

In Stock, Qty 20+

0

84

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

130

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$6.99

$

In Stock, Qty 11

0

44

Husqvarna 532165724

COVER.MANDREL.LH.92.CRD

$

$

Not available

16

Husqvarna 532170038

BLADE RH 6PT STAR(CTH130)
(Superseded to 532426322)

$79.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

BEARING

$17.99

$

In Stock, Qty 20+

0

67

Husqvarna 532106932

KNOB T (3/8 HOLE)

$9.99

$

In Stock, Qty 6

0

117

Husqvarna 532133957

WHEEL GAGE DONUT

$14.99

$

In Stock, Qty 20+

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

24

Husqvarna 532165242

BRACKET

$

$

Not available

128

Husqvarna 532153390

WASHER FELT

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532165237

BRACE.SUPT.SUSP.FRT.CRD
(Superseded to 583259301)

$

$

Not available

40

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$39.99

$

In Stock, only 1 left!

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$2.49

$

In Stock, Qty 20+

0

18

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

In Stock, only 2 left!

0

153

Husqvarna 532169674

WASHER FLAT 3/8"
(Superseded to 596140201)

$3.99

$

In Stock, only 2 left!

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

4

Husqvarna 532165558

BRACKET

$

$

Not available

55

Husqvarna 532165445

ARM IDLER

$

$

Not available

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532165567

BRACKET

$

$

Not available

116

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$2.49

$

In Stock, Qty 20+

0

124

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.99

$

In Stock, Qty 9

0

152

Husqvarna 532170300

Cable Clutch CRD Service

$

$

Not available

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

155

Husqvarna 532169671

SPRING RETENTION LEVER

$5.99

$

In Stock, Qty 8

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.99

$

In Stock, only 2 left!

0

68

Husqvarna 531007550

NEEDS DESCRIPTION

$

$

Currently unavailable

34

Husqvarna 532165239

BRACKET

$

$

Not available

131

Husqvarna 532165661

CHUTE BAGGER

$119.99

$

Usually ships in 3-10 days

0
