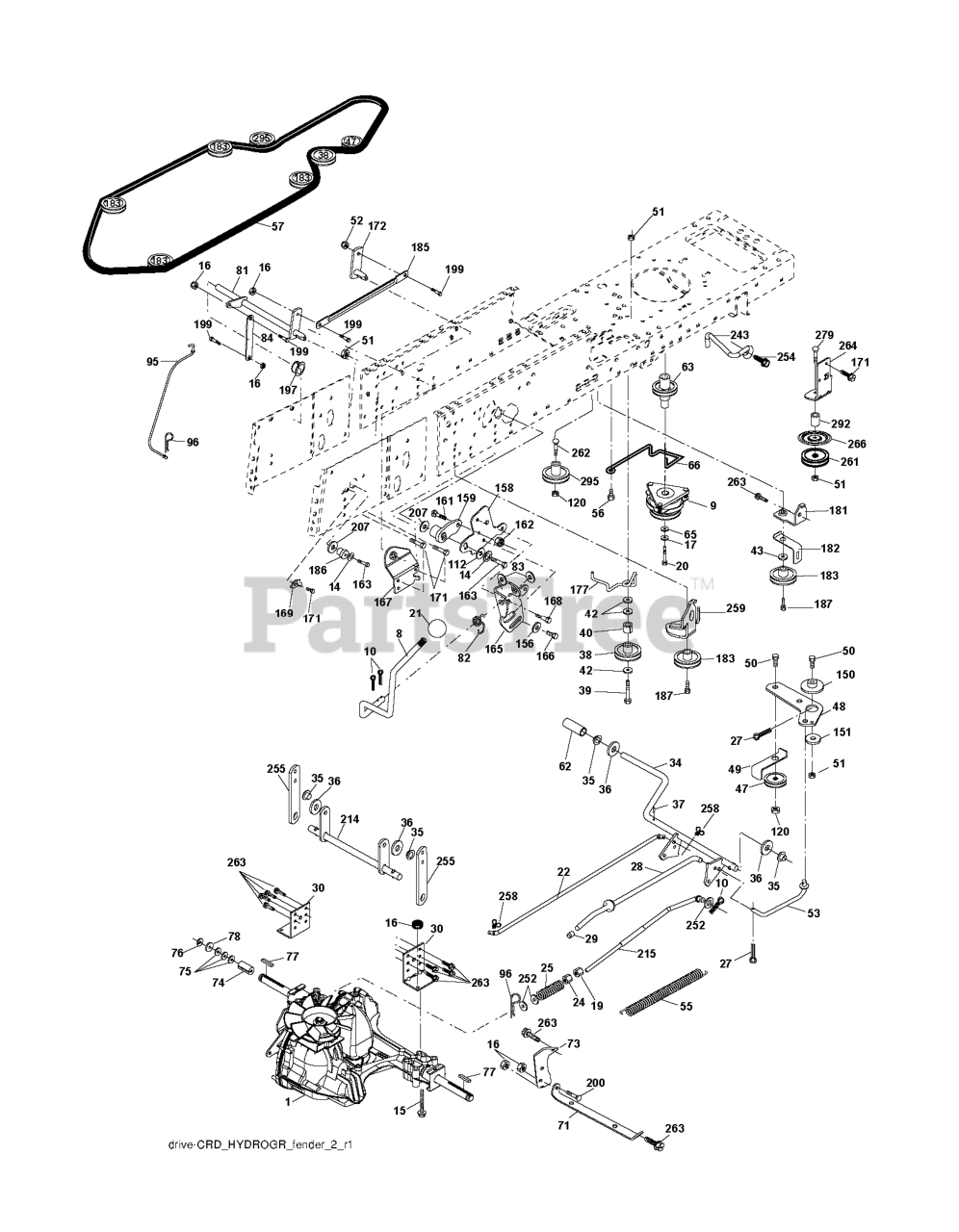

CTH 140 (960610192-02) - Husqvarna Lawn Tractor (2007-09) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

254

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 7

0

74

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

197

Husqvarna 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

264

Husqvarna 532197607

NEEDS DESCRIPTION

$

$

Not available

156

Husqvarna 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$8.99

$

In Stock, only 1 left!

0

199

Husqvarna 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$3.99

$

In Stock, Qty 11

0

73

Husqvarna 532169182

STRAP TORQUE RH HYDRO

$10.99

$

In Stock, only 1 left!

0

172

Husqvarna 532170271

LINK
(Superseded to 583037801)

$24.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532175607

ROD
(Superseded to 583070201)

$27.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532170140

V-BELT 113"
(Superseded to 583036701)

$72.99

$

Usually ships in 3-10 days

0

262

Husqvarna 872110622

BOLT

$3.99

$

In Stock, only 3 left!

0

171

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532192706

ROD SHIFT FENDER ADJUST LT
(Superseded to 585139901)

$11.99

$

Usually ships in 3-10 days

0

168

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$6.49

$

In Stock, only 3 left!

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

1

NEEDS DESCRIPTION

Note: Transaxle Hydro Gear 321-0510

$

$

Not available

292

Husqvarna 532400271

SPACER
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

185

Husqvarna 532170008

LINK
(Superseded to 583036001)

$8.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

In Stock, only 1 left!

0

35

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 7

0

39

Husqvarna 874760644

BOLT

$6.49

$

Usually ships in 3-10 days

0

162

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

81

Husqvarna 532170006

ASM.CROSS.SHAFT.REAR.CRD.0510

$26.99

$

Usually ships in 3-10 days

0

56

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$6.99

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

214

Husqvarna 532175609

LEVER
(Superseded to 583070401)

$11.99

$

Usually ships in 3-10 days

0

266

Husqvarna 532182061

PROTECTOR
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532124965

SPACER T

$6.49

$

Usually ships in 3-10 days

0

84

Husqvarna 532170007

LINK.PNT.TRANSAXLE.0510.CRD
(Superseded to 583035901)

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532175578

SHAFT, FOOT PEDAL

$30.99

$

Usually ships in 3-10 days

0

163

Husqvarna 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

261

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

258

Husqvarna 532178062

CLIP RETAINER

$4.99

$

In Stock, only 2 left!

0

182

Husqvarna 532182682

BELT GUIDE
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

120

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

75

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

169

Husqvarna 532165580

PLATE.FASTENING.CROSS.SHAFT

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

55

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 8

0

95

Husqvarna 532170015

LINK
(Superseded to 583036101)

$21.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$8.99

$

Usually ships in 3-10 days

0

112

Husqvarna 819091210

WASHER LT

$6.99

$

Usually ships in 3-10 days

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 3 left!

0

165

Husqvarna 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

63

Husqvarna 532180397

PULLEY.ENGINE.CVX.LT

$

$

Not available

20

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

207

Husqvarna 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$34.99

$

In Stock, Qty 9

0

30

Husqvarna 532169592

BRKT, TRNSXLE MNT 20"

$6.49

$

Usually ships in 3-10 days

0

187

Husqvarna 817580520

BOLT.5/16-18X1.25

$5.99

$

In Stock, only 3 left!

0

181

Husqvarna 532180211

BRACKET
(Superseded to 583099101)

$4.99

$

Usually ships in 3-10 days

0

279

Husqvarna 872110616

BOLT

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532071673

PLUNGER CAP

$4.99

$

In Stock, only 1 left!

0

150

Husqvarna 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

53

Husqvarna 532199652

LINK.CLUTCH.7.66.2005

$13.99

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

252

Husqvarna 819131616

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532165711

SHIFT SPRING

$7.49

$

In Stock, Qty 8

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

255

Husqvarna 532175608

SHAFT
(Superseded to 583070301)

$2.99

$

Usually ships in 3-10 days

0

15

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532165936

PULLEY.FLAT

$31.99

$

In Stock, only 1 left!

0

215

Husqvarna 532175652

ROD
(Superseded to 583070601)

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532198143

CLUTCH.ELECTRIC.OGURA.EURO.

$399.99

$

Usually ships in 3-10 days

0

243

Husqvarna 532190736

BRACKET, ANTI-ROTATION

$40.99

$

In Stock, only 3 left!

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

259

Husqvarna 532180212

BRACKET
(Superseded to 583099201)

$

$

Not available

76

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 819111012

WASHER T

$6.49

$

Usually ships in 3-10 days

0

177

Husqvarna 532165932

KEEPER

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

167

Husqvarna 532165588

BRACKET.SUPT.SHIFT.CRD

$22.99

$

Usually ships in 3-10 days

0

159

Husqvarna 532183900

RB HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

166

Husqvarna 817490510

CAPSCREW.HXHD.FLG.5/16-18X.625

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

71

Husqvarna 532169183

STRAP TORQUE LH HYDRO

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532192036

SPRING BRAKE ROD
(Superseded to 583201301)

$4.99

$

Usually ships in 3-10 days

0

295

Husqvarna 532179114

PULLEY IDLER COMPOSITE

$31.99

$

In Stock, Qty 20+

0

200

Husqvarna 872140508

BOLT

$2.99

$

Usually ships in 3-10 days

0

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

186

Husqvarna 532165614

HUB.TAPERED.ROUND.CRD

$6.49

$

Usually ships in 3-10 days

0

183

Husqvarna 532199532

PULLEY.V-IDLER.GRND.DR
(Superseded to 532199534)

$37.99

$

Usually ships in 3-10 days

0
