CTH 140 (960610280-00) - Husqvarna Lawn Tractor (2010-01) ENGINE Parts Diagram

Lawn Tractor

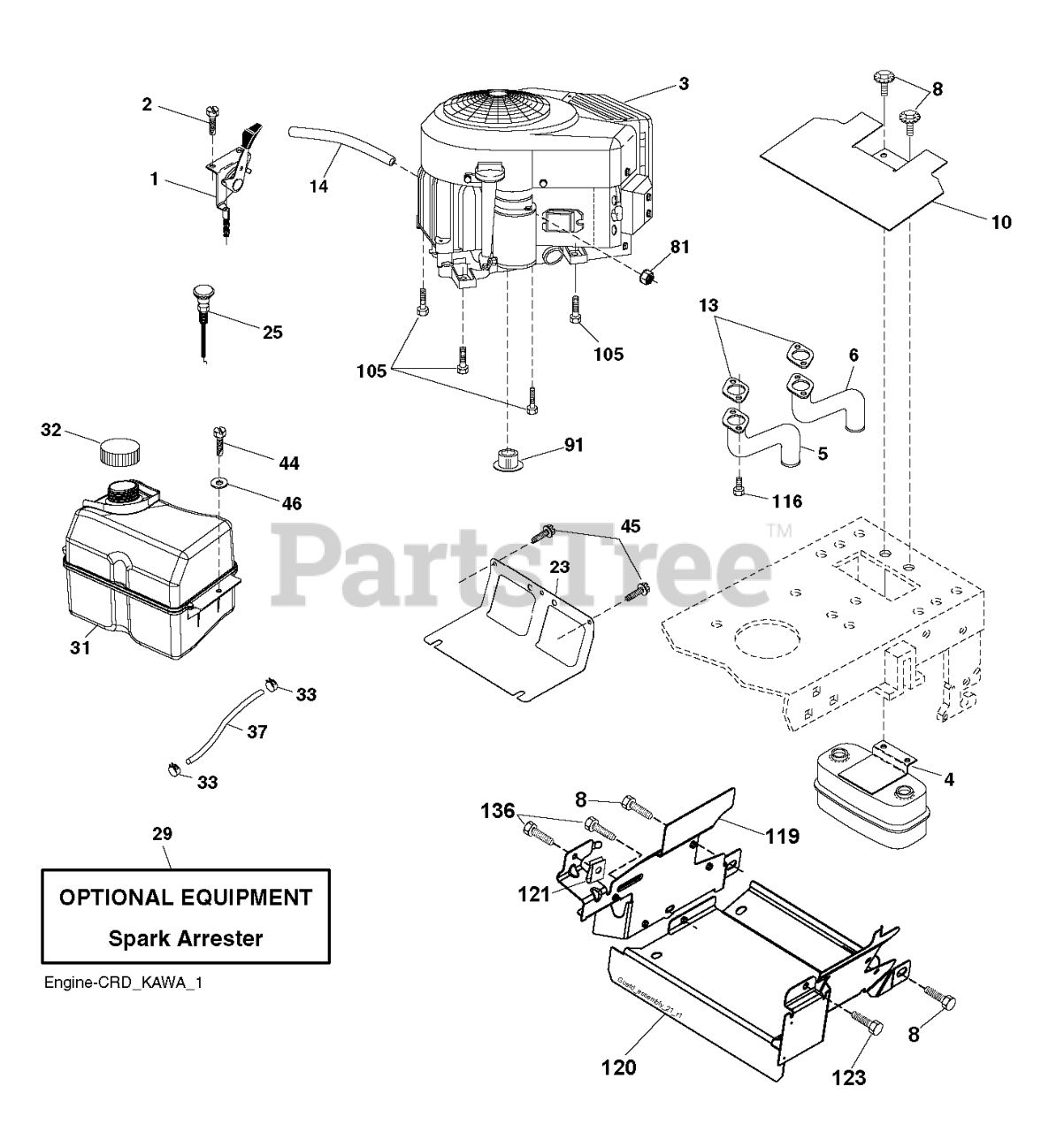

ENGINE Parts Diagram

  • Title

32

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

In Stock, Qty 5

0

1

Husqvarna 532412165

CONTROL.THROTTLE.COBRA.BLACK

$44.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181442

EXHAUST TUBE RH KAWI

$72.99

$

Usually ships in 3-10 days

0

3

000000000

Note: Engine Kawasaki FH430V-DS11

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

136

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

121

Husqvarna 532196688

CLIPS

$4.99

$

In Stock, only 3 left!

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$87.99

$

In Stock, Qty 7

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

13

000000000

Note: Muffler Gasket

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

In Stock, Qty 5

0

25

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

In Stock, only 4 left!

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 18

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$7.49

$

In Stock, Qty 11

0

5

Husqvarna 532181444

EXHAUST TUBE LH KAWI

$51.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

120

Husqvarna 532199767

GUARD 532199767
(Superseded to 583254201)

$36.99

$

Usually ships in 3-10 days

0

46

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

119

Husqvarna 532199768

LENKRAD
(Superseded to 583254301)

$21.99

$

Usually ships in 3-10 days

0

123

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

116

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

Usually ships in 3-10 days

0
