CTH 140 XP (960610071-01) - Husqvarna Lawn Tractor (2006-06) ENGINE Parts Diagram

Lawn Tractor

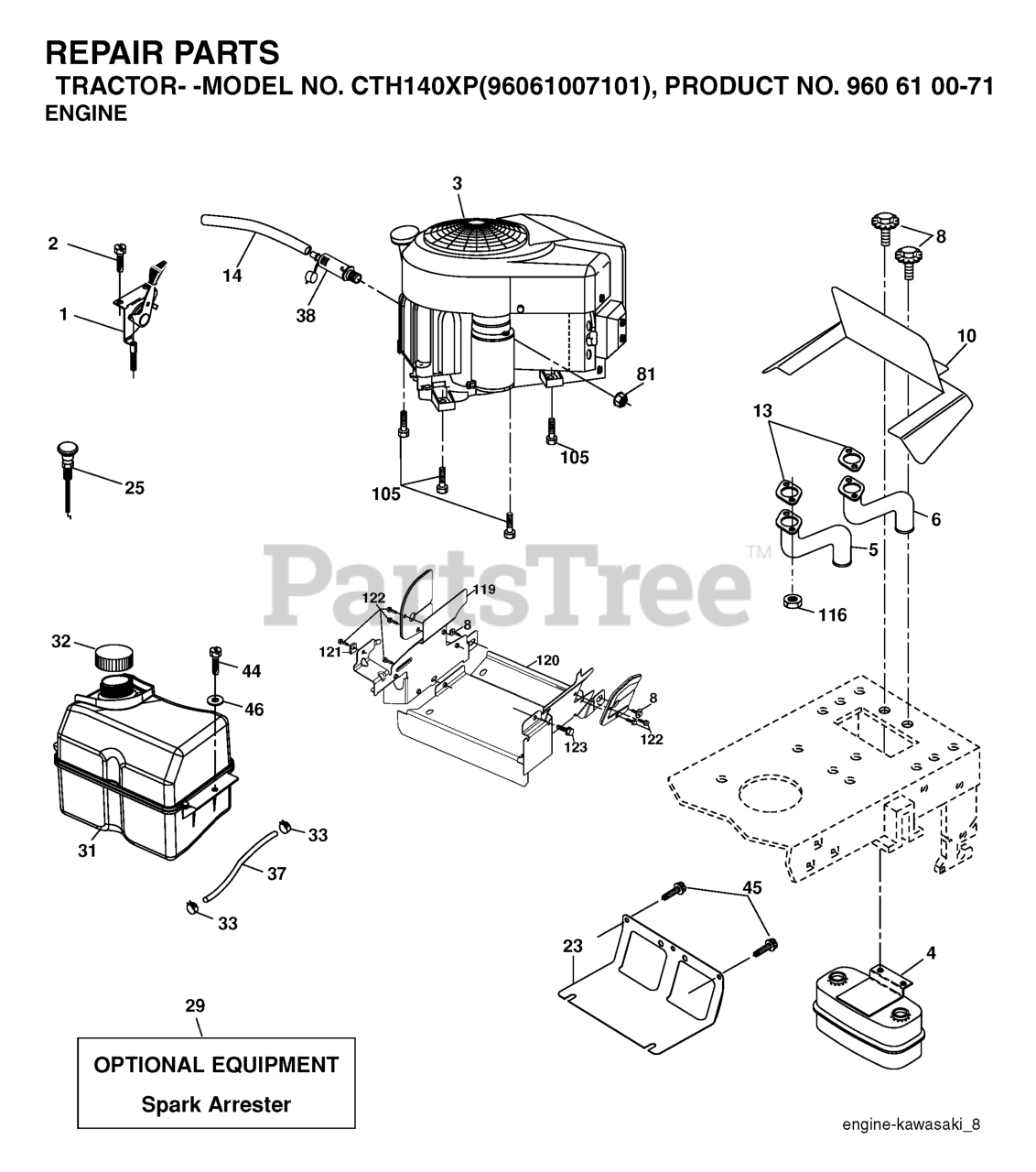

ENGINE Parts Diagram

  • Title

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

1

Husqvarna 532170803

CONTROL, THROTTLE

$31.99

$

In Stock, only 3 left!

0

120

Husqvarna 532400600

NEEDS DESCRIPTION

$

$

Not available

123

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

121

Husqvarna 532196688

CLIPS

$3.49

$

In Stock, only 3 left!

0

2

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, Qty 9

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, only 2 left!

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

122

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 532185534

TANK FUEL
(Superseded to 532430825)

$62.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 10

0

25

Husqvarna 532191812

NEEDS DESCRIPTION

$

$

Not available

5

Husqvarna 532181444

EXHAUST TUBE LH KAWI

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$51.99

$

Usually ships in 3-10 days

0

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 11

0

119

Husqvarna 532400601

NEEDS DESCRIPTION

$

$

Not available

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$26.99

$

In Stock, Qty 7

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

6

Husqvarna 532181442

EXHAUST TUBE RH KAWI

$

$

Not available

116

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.49

$

In Stock, only 3 left!

0
